5、REF OUT 10MHz
SSA3000X can use internal or external reference source.
When internal reference source is used, the [10MHz OUT] connector can output a 10 MHz
clock signal generated by the analyzer. This signal can be used to synchronize other
instruments.
The [10MHz OUT] and [10MHz IN] connectors are usually used to build synchronization
among multiple instruments.
6、Trigger in
In external trigger mode, the connector receives an external trigger signal through a BNC
cable.
7、Security Lock Hole
If needed, you can use a security lock (buy it yourself) to lock the analyzer to a desired
location.
8、Connect to AC Power Supply
The Spectrum Analyzer accept 100-240V, 50/60/440Hz AC power supply. Please use the
power cord provided as accessories to connect the instrument
1.5 User Interface

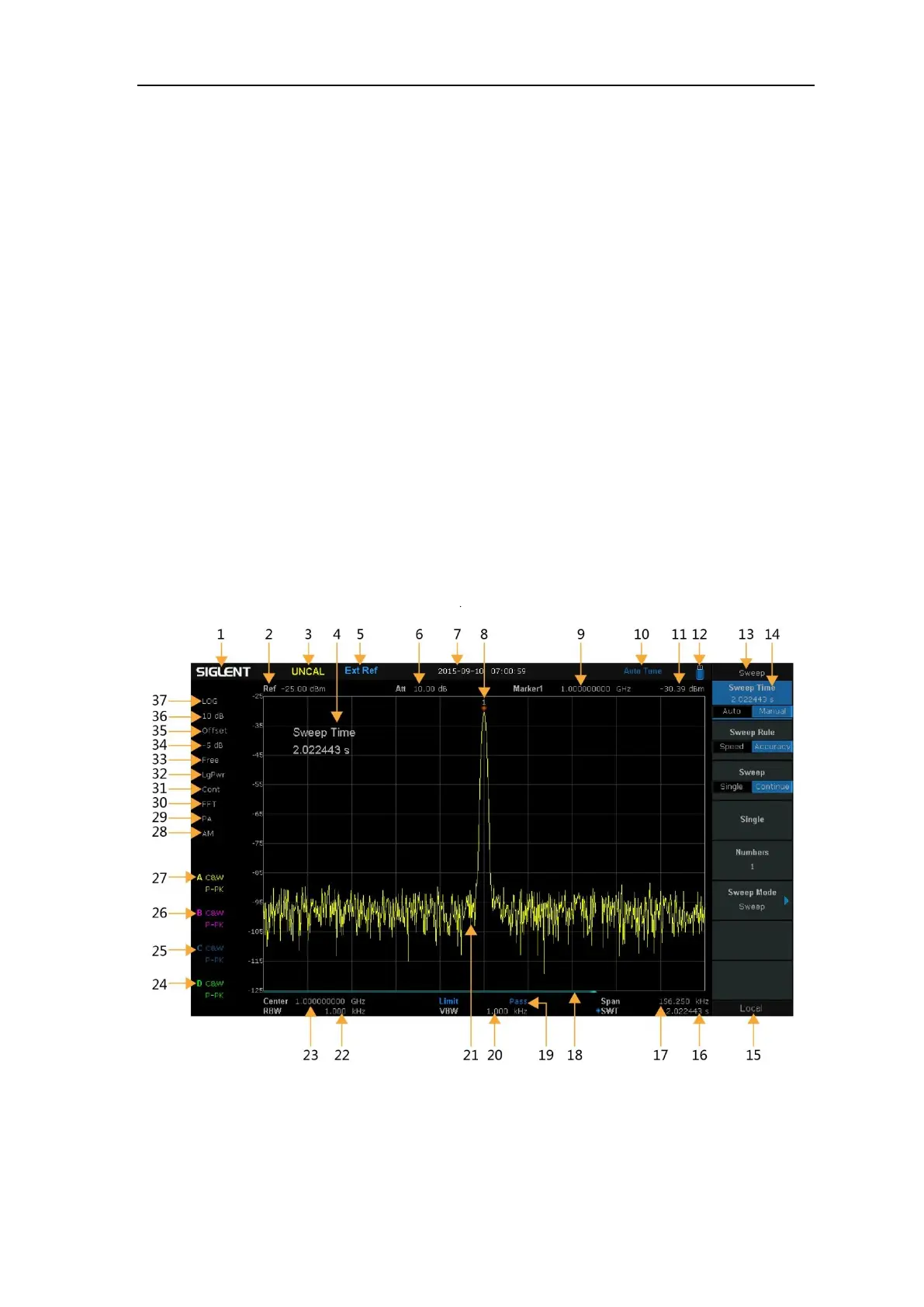

Figure 1- 11 User Interface
Table 1- 3 User Interface labels
