SIGLENT
SSA3000X User Manual 9
1.3.4 Front Panel Connectors

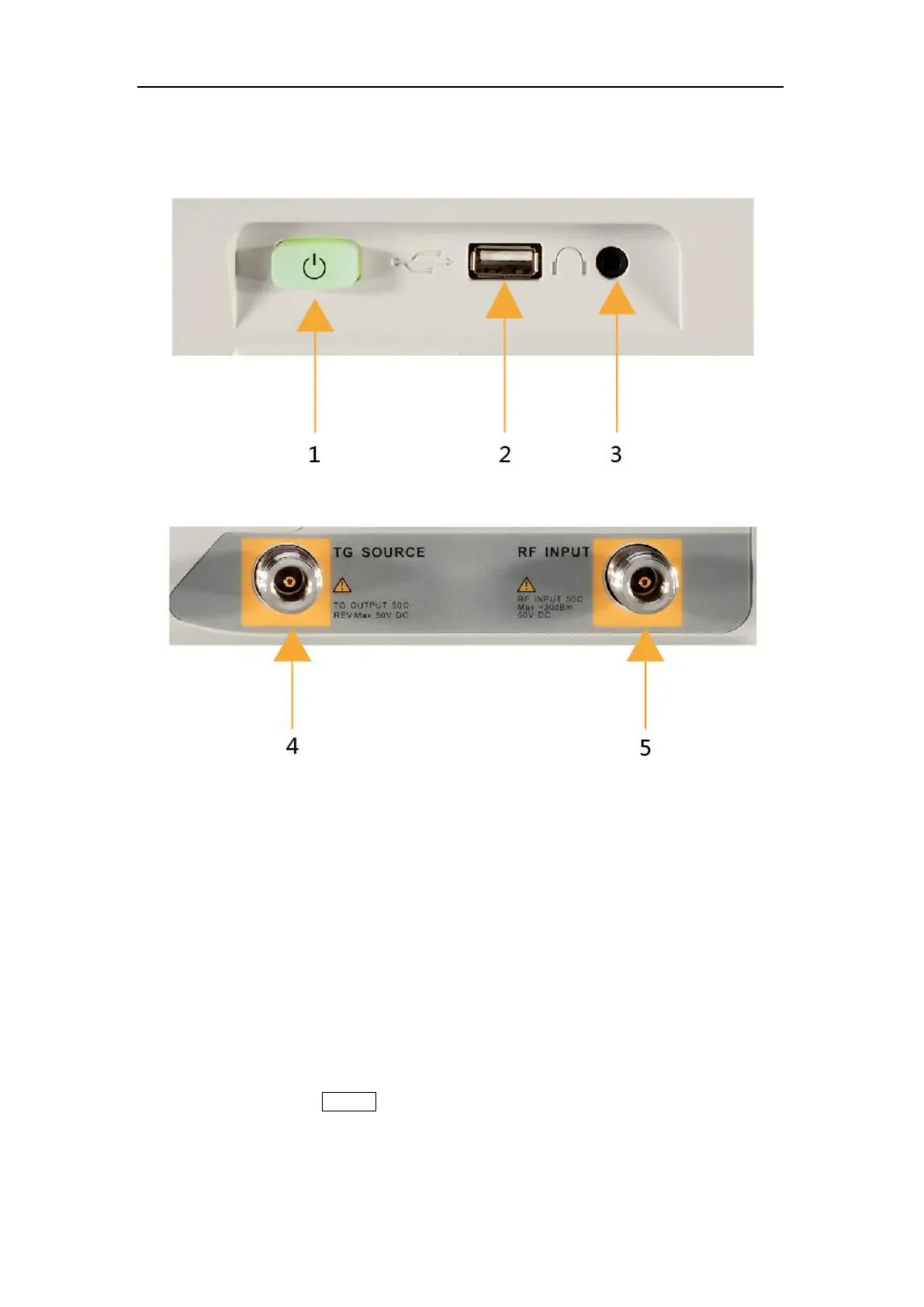

Figure 1- 9 Front Panel Connectors
1． Power Switch
Power up/Power down the instrument
2． USB Host
The analyzer can serve as a “host” device to connect external USB devices. This interface
is available for USB storage devices.
Read the trace or state file stored in the USB storage device, store the current instrument
state or trace in the USB storage device or store the contents currently displayed on the
screen in the USB storage device in “.bmp” format.
3. Earphone Jack
The analyzer provides AM and FM demodulations. Insert the earphone to the jack to aquire
the audio output of the demodulated signal. You can turn on or off the earphone output and
adjust the volume via Demod ->Volume.
To Next Page
