Functional Description
A
P04
-RS485/SIKONETZ5
Date
:
24
.
11
.2016
Art. No. 86218
Mod. status 351/
16
Page
10
of
38
3.4.1.4
Menu selection

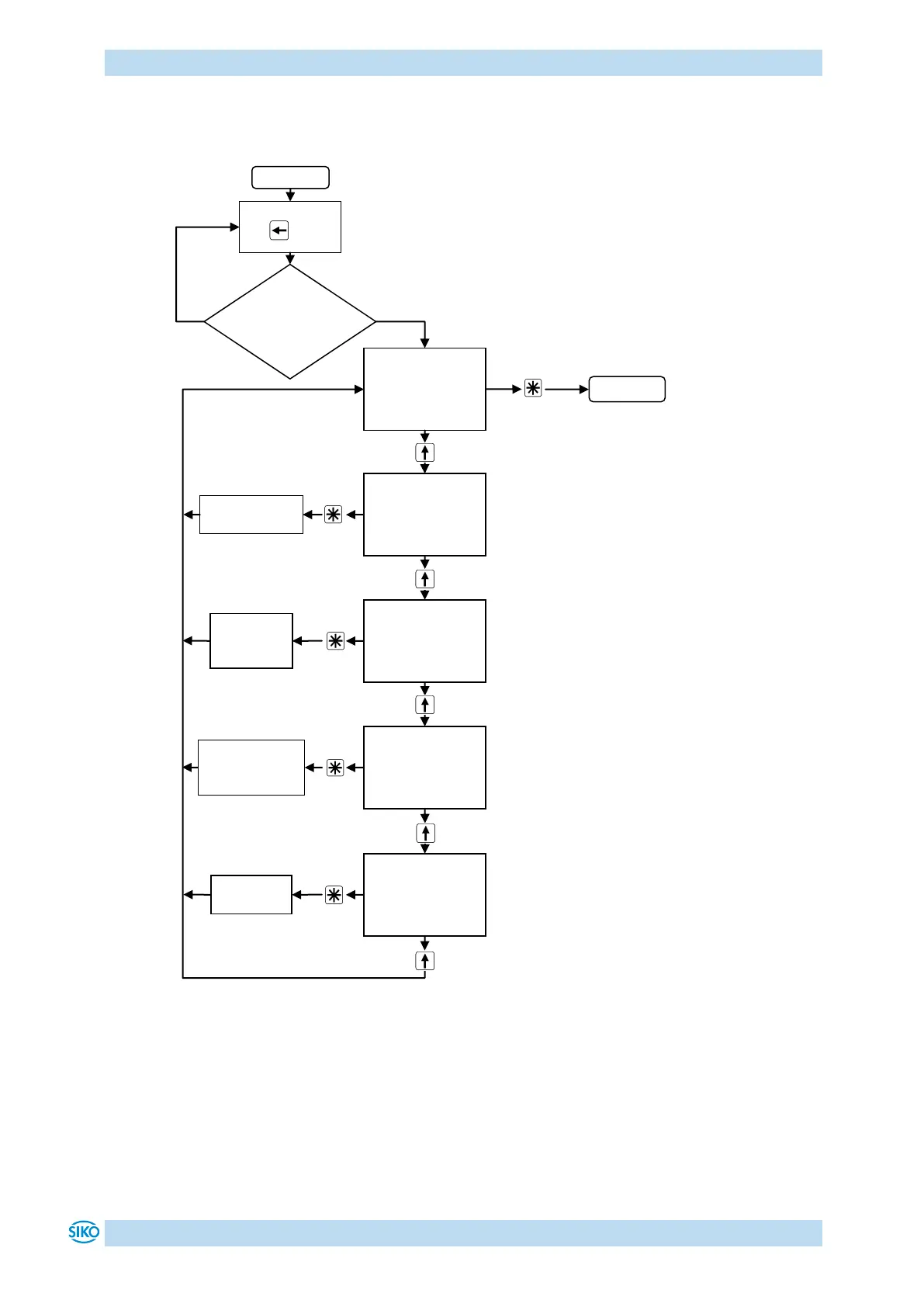

Fig. 4
:
Menu selection
Visualization
parameter
Start
Hold down the
key
Ending
parameterizati
on
Parameter
Bus
Positioning
parameter
see menu
Bus-Parameter
see menu
Positioning
parameter
Key enable
time expired?
End
yes
Parameter
Options
see menu
Visulaization
parameter
see menu
Options
no
9
