REKORD Operating manual - English
18 Copyright Silca 2 007
Using the accessories
The accessories provided with the REKORD to assist key-cutting are:
-pins
- bars.
Using the pins
The pins must be inserted between the bottom of the jaw and the back of the key for keys with narrow
stems, and their purpose is to ensure that the key protrudes sufficiently to be cut properly (fig. 15, fig.
15-C).
For keys with narrow, thin stems, two pins must be used (fi g. 15-B), the second one to give a secure
grip on the key. If the key thickness is too fine to
guarantee a good grip in
the clamps, a pin must be
used (fig. 15-A).
ATTENTION:
the pins
provided have two different diamet
ers: 1,20 mm and 1,70 mm. It is essential to use pins
with the same diameters for locking both the original and the key blank.

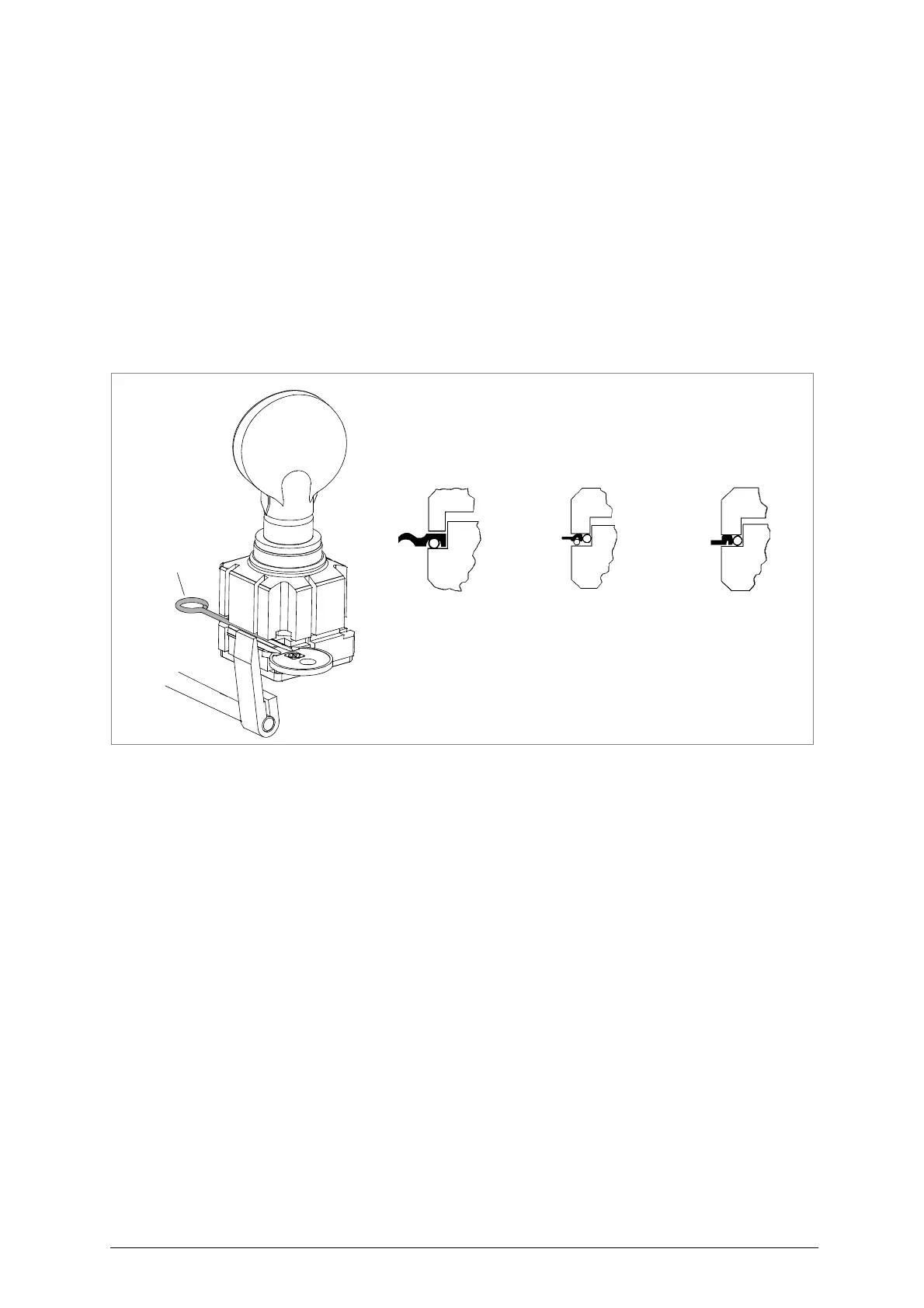

Fig. 15
