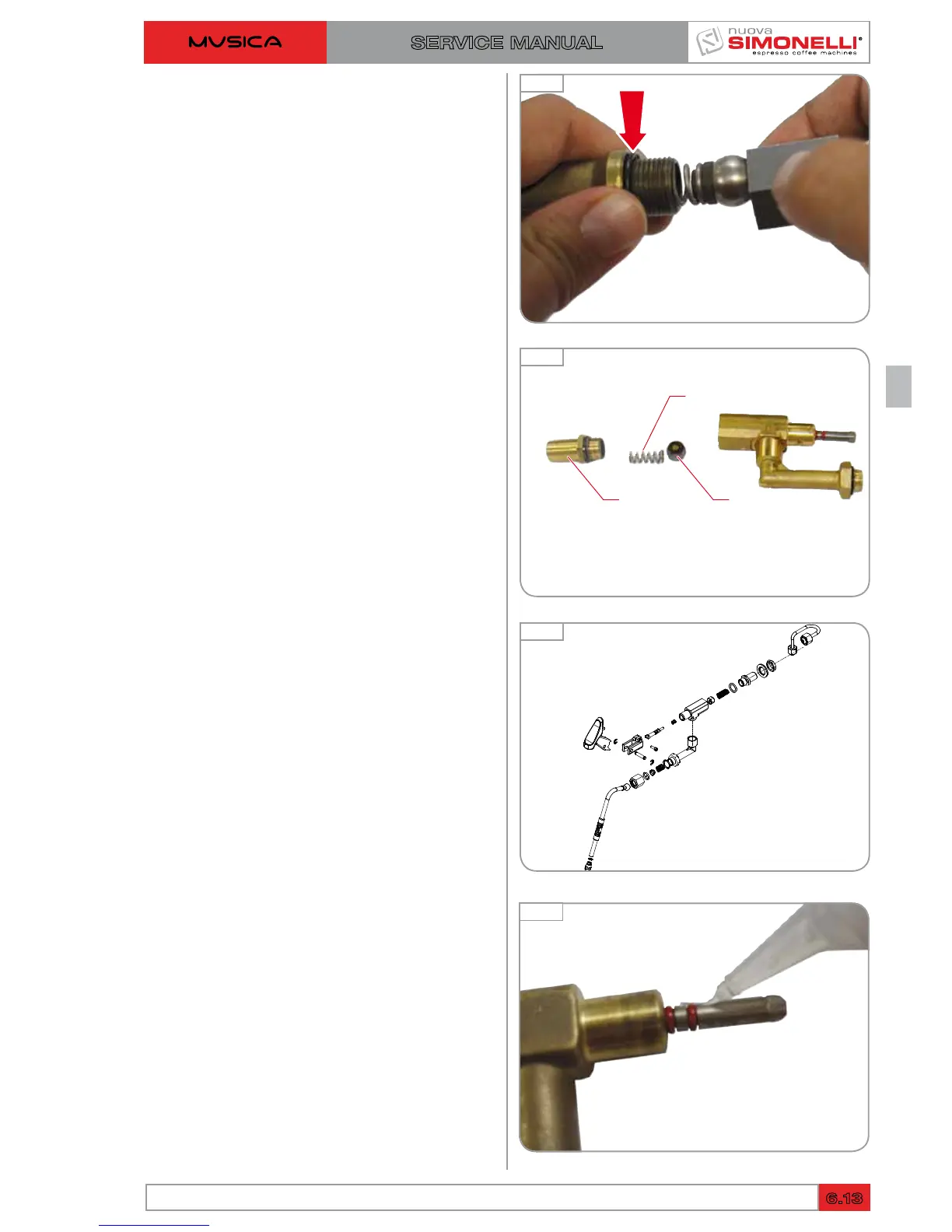

2 Using a 22 mm wrench remove the steam
nozzle from its housing. We recommend
replacing the seal at least once a year.
Fig. 111
3 Unscrew the fitting "A" with a 21 mm wrench
to reach the spring.
We recommend replacing the seal at least
once a year.
4 Remove the steam piston "C" behind the
spring "B". We recommend replacing the
piston at least once a year.
The steam nozzle, in its simplicity, has compo-
nents that must be replaced due to wear.
It is recommended to replace:
• The piston seals (code No. 02280014) to
avoid misalignment.
• Thesealsoftheleverblock(02280011)and
the connection to the heater.
• Thepistonofinnerclosure(98008004).
Fig. 113
CA
B
Fig. 112
RE-ASSEMBLY OF THE STEAM NOZZLE
During the reassembly phase it is important to
lubricate the seals of the piston in contact with
the lever, to ensure fluid movement inside the
housing.
Fig. 114
Ed. 01 of 12/2015
6.13
