4 Take out the support of the lever “C” to
release the steam lever “D”.

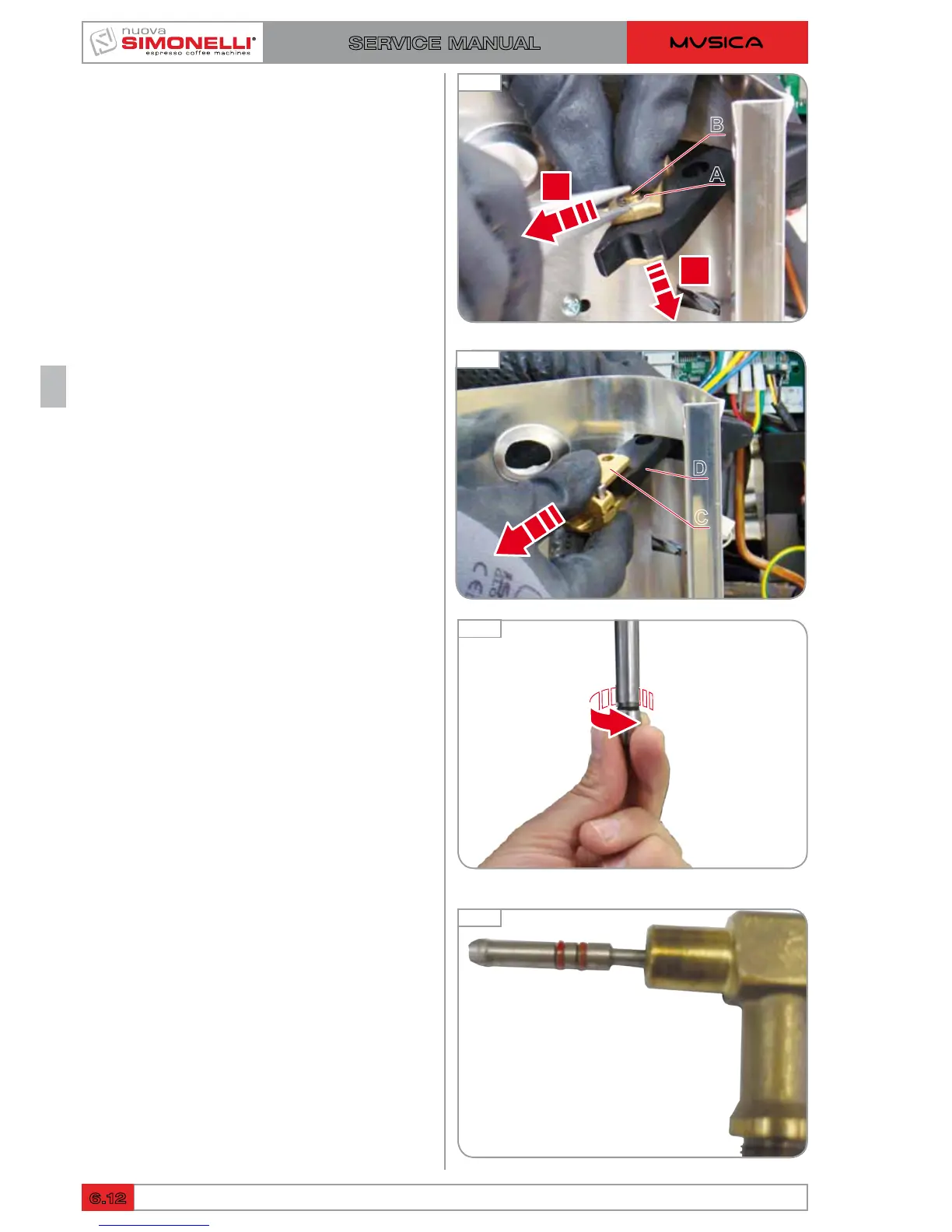

DISASSEMBLY OF THE STEAM LEVER
1 Remove the machine front panel. Unlike the
nozzle, the lever is extracted together with
the panel.
2 Remove the Seeger ring “A” using the pliers.
3 Remove the piston “B” from the opposite
side.
Fig. 107
MAINTENANCE OF STEAM NOZZLE
To carry out repairs and maintenance once the
steam nozzle is removed we can proceed with
the following steps:
1 Remove the piston which is actuated by the
lever. The seals that make it slide in its hous-
ing tend to wear out and must be replaced
depending on the use or every 4-6 months.
Fig. 110
5 To remove the dispensing nozzle it is suffi-
cient to unscrew the lower part of the nozzle
by hand.
Fig. 109
