15. Connect battery to control panel as follows:
CAUTION: Check all battery connections carefully for polarity. REVERSED CONNECTlONS MAY DAMAGE
EQUIPMENT
A. Connect red wire of battery harness (without connector) to TBl-3 (BAT +). Connect black wire (without
connector) to TBl-4 (BAT -). See Figure 21 B.
B. Place two 12V batteries in box assembly as shown in Figure 21 B
C. Connect red wire of battery harness (with connector) to positive (+) terminal of one battery. Connect black
wire of battery harness (with connector) to negative (-) terminal of other battery. See Figure 21 B.
CAUTION: Do not connect the white jumper wire to battery terminals now. BATTERY POWER MAY CAUSE
DAMAGE TO EQUIPMENT DURING INSTALLATION.
16. PERFORM THIS STEP ONLY IF 18Ah BATTERIES ARE BEING USED WITHOUT BATTERY METER
MODULE INAN EXTERNAL BATTERY CABINET
A harness is provided that extends from the battery cabinet to the control panel. Discard the harness supplied
with the control panel and use the harness supplied with the battery cabinet. Connections are described below.
Note that you must run the harness through the knockout in the battery cabinet closest to the control panel, and
up to the battery terminal (TBl).
CAUTION: Check all battery connection carefully for polarity. REVERSED CONNECTIONS MAY DAMAGE
EQUIPMENT:
Connect battery to control panel as follows:
A. Connect red wire of battery harness (without connector) to TBl-3 (BAT +). Connect black wire (without
connector) to TBl-4 (BAT-). See Figure 21 B.
B. Place two 12V batteries in box assembly.
C. Connect red wire of battery harness (with conn&tor) to positive (+) terminal of one battery. Connect black
wire of battery harness (with connector) to negative (-) terminal of other battery. See Figure 21 B.
CAUTION: Do not connect the white jumper wire to battery terminals now. BATTERY POWER MAY CAUSE
DAMAGE TO EQUIPMENT DURING INSTALLATION.
LEAVE WHITE
) JUMPER
DISCONNECTED
NOTE: IF BATTERIES ARE IN EXTERNAL CABINET, ROUTE HARNESS THROUGH KNOCKOUT CLOSEST TO CONTROL PANEL.

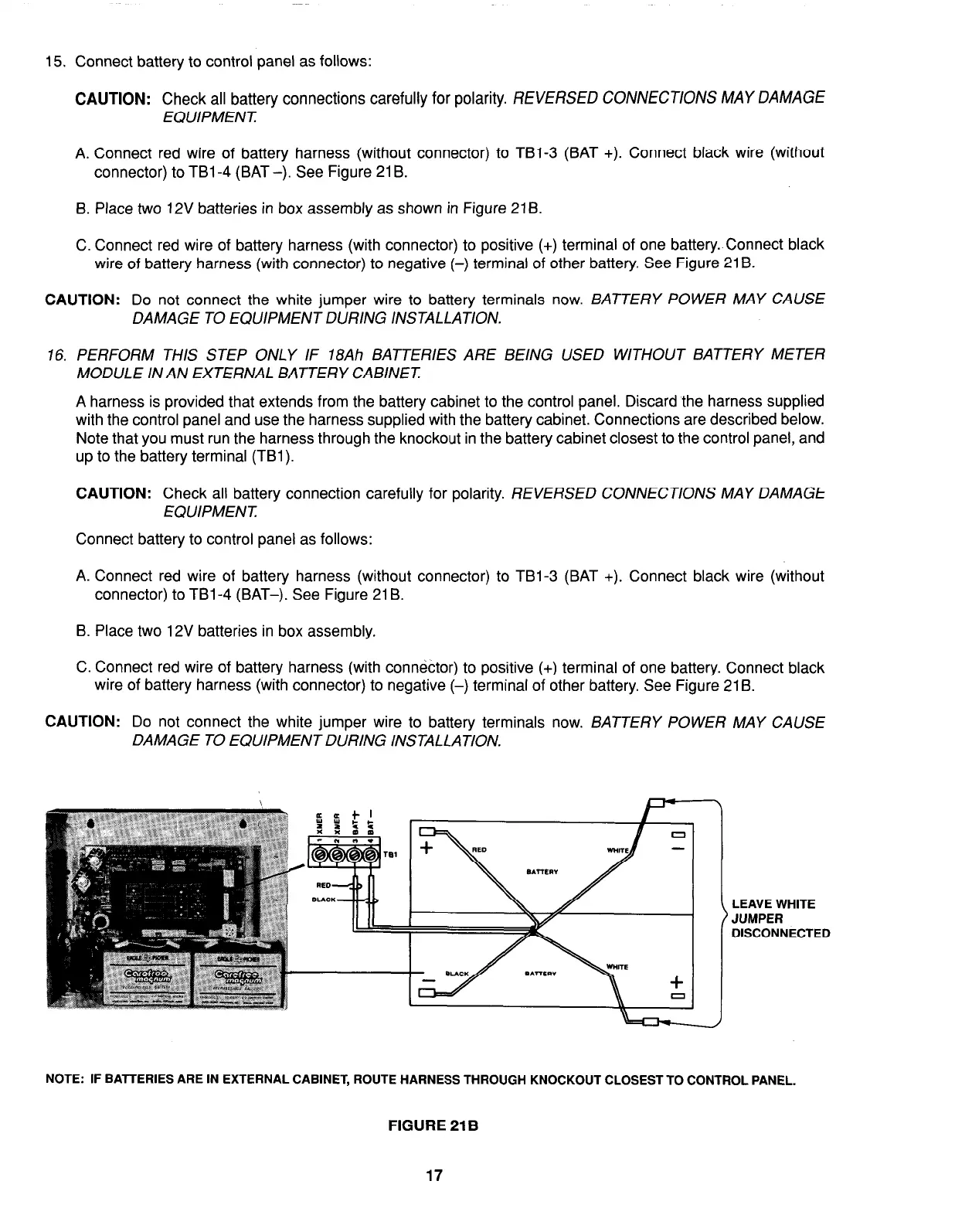

FIGURE 21 B
17
