14 - 21
14 Transmission Tear-Down
Assembly

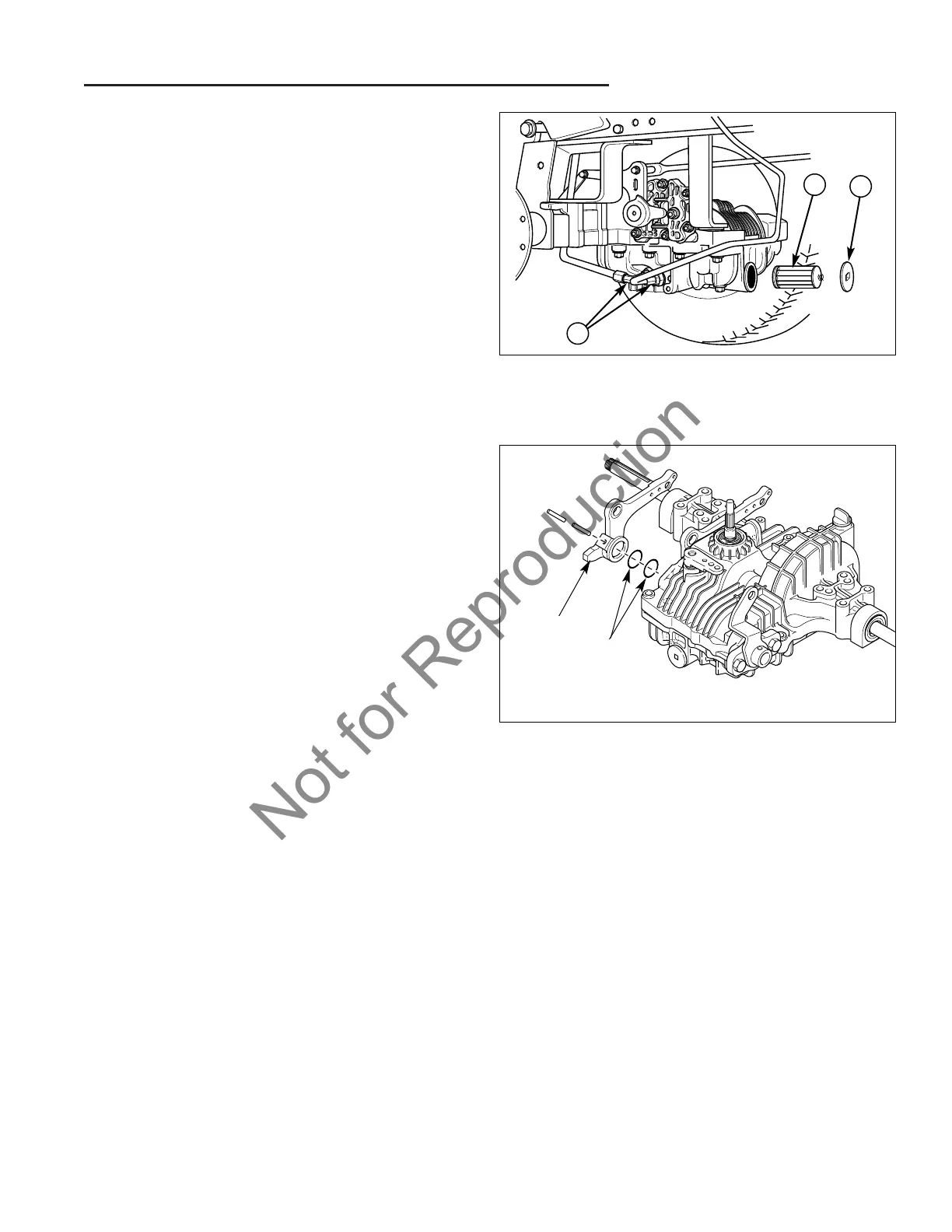

19. Install the internal oil filter (B, Figure 34) and its cap
(A), being sure that the seal end of the filter is
installed first.
NOTE: Install the brake assembly now, if not done
already.
Figure 34. Internal Transmission Filter Service
A. Plastic Plug C. Fittings
B. Internal Filter
Figure 35. Install Control Arm
A
B
C
20. See Figure 35. Carefully install the 2 o-rings over the
control shaft.
21. Install the control arm and the roll pin.
22. Using seal protectors, install new seals for the axle
and input shaft.
23. Install the input pulley and retaining nut.
24. Install any accessory brackets or hardware before
reinstalling the transaxle into the tractor.
25. Reinstall the transmission (see TRANSMISSION
REMOVAL AND INSTALLATION Section). Fill with
oil (see MAINTENANCE Section). Perform neutral
adjustment (see ADJUSTMENTS Section).
O-Rings
Control
Arm
To Next Page
