24 |
The operational modes | AP70/AP80 Operator Manual

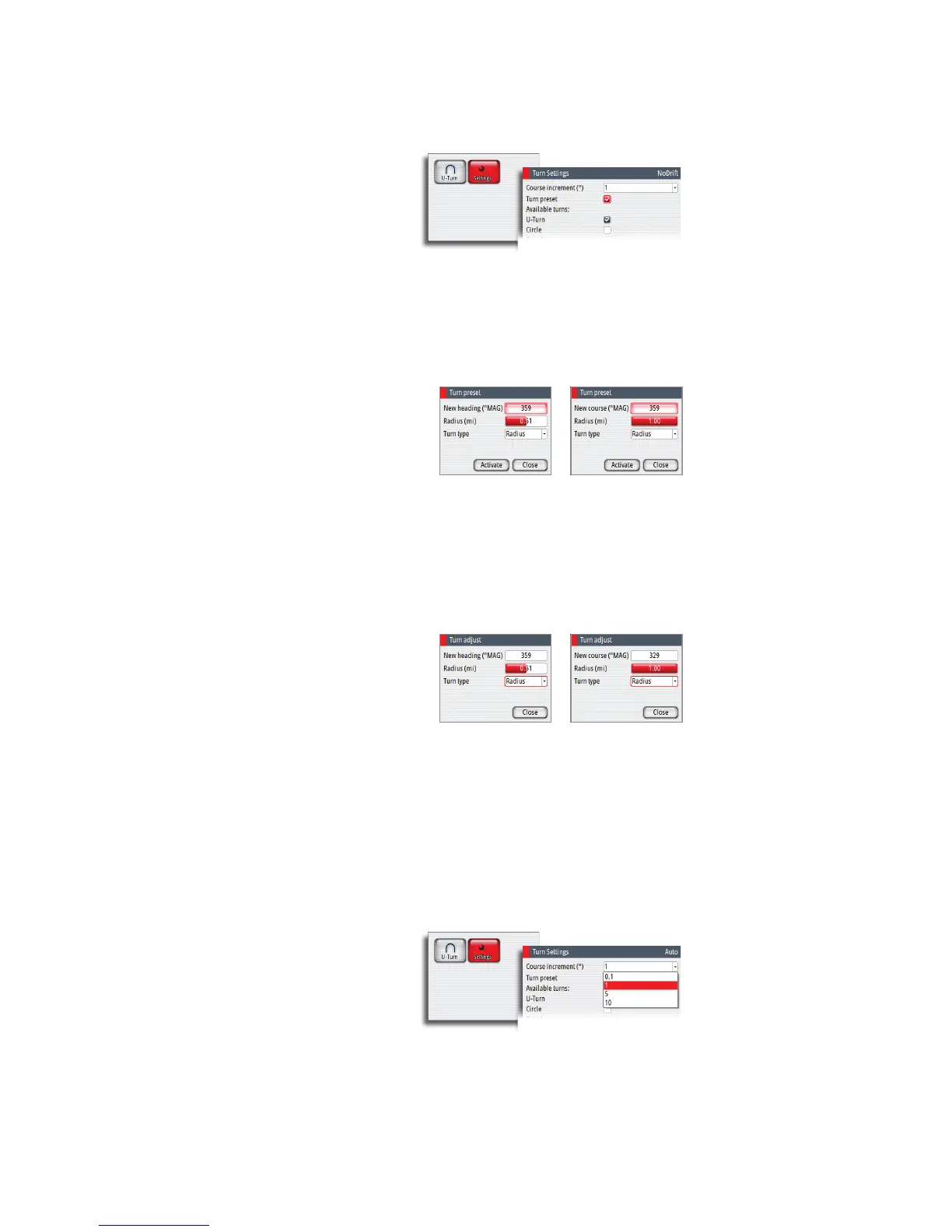

Activating the turn preset function
1. Press the TURN key
2. Tick on the Turn preset option in the Turn Settings dialog
Using turn preset
1. Select AUTO or NoDrift mode
2. Turn the rotary knob to display the Turn preset dialog
3. Set new heading/course, radius and turn type as required in the dialog
AUTO mode NoDrift mode
4. When the vessel reaches the selected turn point, initiate the turn by selecting the Activate
key
- The pre-set heading/course will immediately be shown in the course display
- The dialog will change to show turn adjust options. If settings are adjusted the changes
will take effect immediately
AUTO mode NoDrift mode
You can close the Turn adjust dialog at any time without disturbing the pre-setting or
execution of a turn. If closed, the Turn adjust dialog is recalled by turning the rotary knob.
Setting the heading and course change increments
By default the set heading (AUTO) and set course (NoDrift) will change 1° each time you
press the PORT/STBY keys. You can change this increment setting if required.
1. Press the TURN key
2. Select one of the preset course increment values in the Turn Settings dialog
¼ Note: If 0.1 is selected, the set heading/course will be displayed with one decimal in the
mode info panel.
