Introduction | AP70/AP80 Operator Manual
Introduction

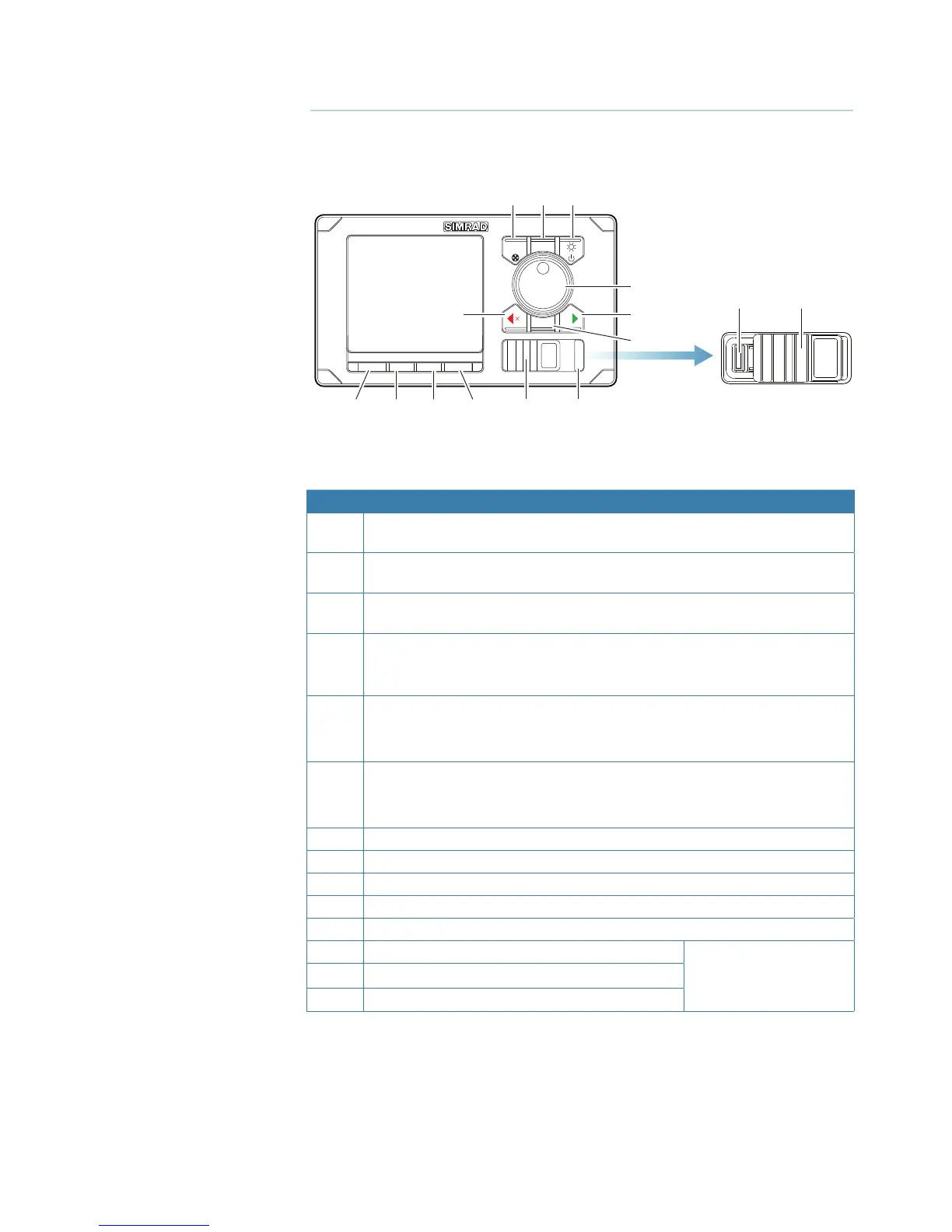

The front panel and keys

TURN
MENUCMD
STBY AUTO NAV WORK
ALARM
9 10 11
1 2 3
12*
4
8
ALARM
14* 12*
13*
6
7
5
¼ * Available on AP80 control units only.
No. Key/Description
1 CMD/THRUSTER. A short press takes/requests command. A long press (3
seconds) activates/deactivates available thrusters
2 MENU. A short press displays the active steering mode’s quick menu. A second
click displays the Settings menu
3 POWER/LIGHT. A short press displays the Light dialog. A long press (3 seconds)
turns the unit ON/OFF
4 ROTARY KNOB (Course wheel). Rotated for selecting menu item and adjusting
value, pressed to confirm a selection/entry.
For mode specific operation, refer to “The operational modes” on page 20.
5 PORT (Cancel). Exits menu/returns to previous menu level.
Activates NFU steering when in Standby mode.
Changes set heading, set course and track offset to port.
6 STBD (Confirm). Confirms menu selection/enters next menu level.
Activates NFU when in Standby mode.
Changes set heading, set course and track offset to starboard.
7 TURN. Displays the Turn dialog
8 STBY. Turns the autopilot to Standby mode
9 AUTO. Activates Auto and NoDrift mode
10 NAV (AP70) / TRACK (AP80). Activates Nav or Track steering mode
11 WORK. Used for selecting work profile
12 USB port door
AP80 control units only
13 ALARM. Displays the Alarm listing dialog
14 USB connector
