Simrad CP33 - 10.2 Installation of CP33 Chartplotter

37.5 (1.5”)
235 mm (9.3”)
252 mm (10”)
144 mm ( 5.8” )
168 mm (6.6”)
45 mm (1.8”)
100.5 mm (4”)
CP33 Installation and service Chapter 10-3

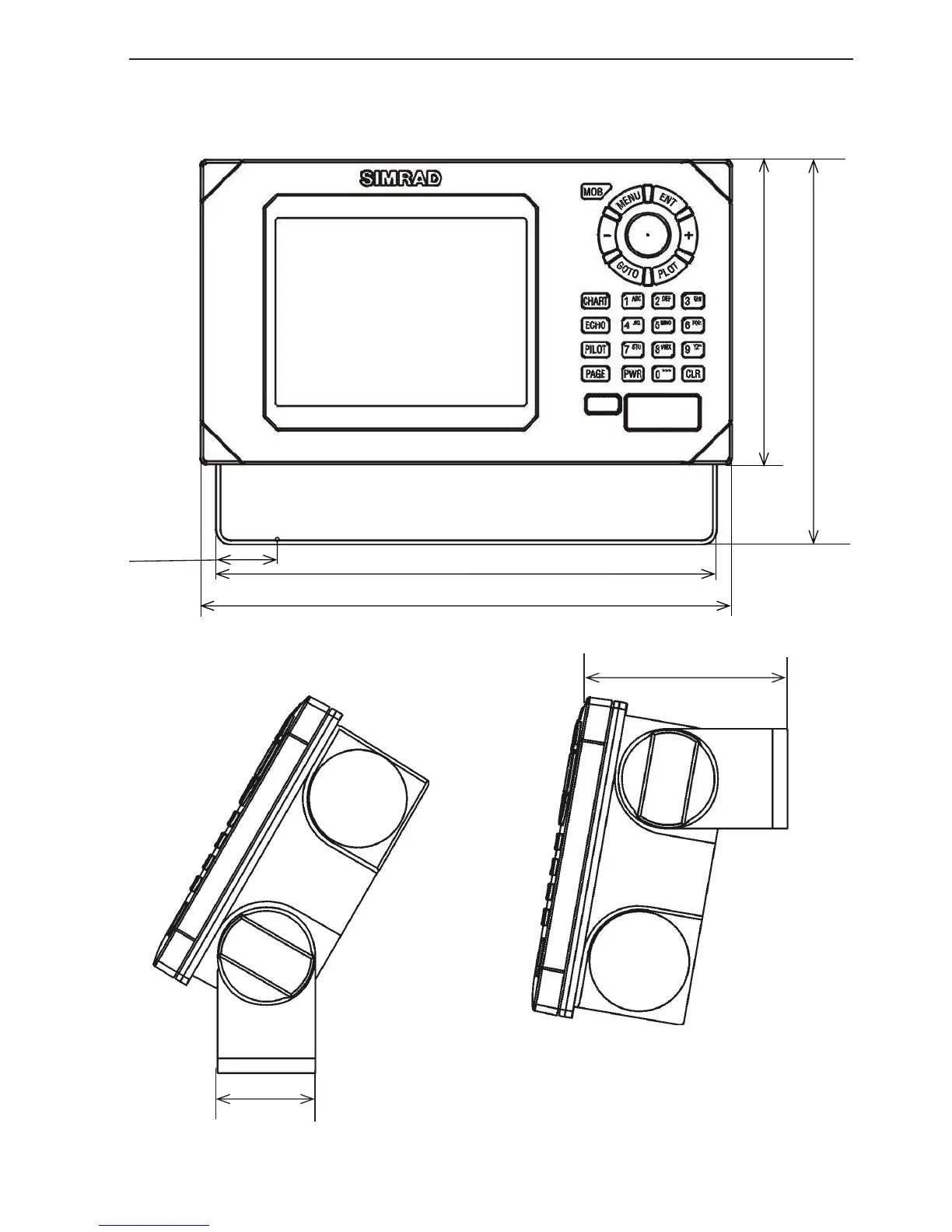

10.2 Installation of CP33 Chartplotter
The CP33 can be flat or bracket mounted - overhead, bulkhead or console.
Bulkhead mounting
(approx. 10° tilt, allowing space for
connectors and cables)
Console mounting
(max. tilt 45°)
