Check the parts | Halo pulse compression radar installation manual

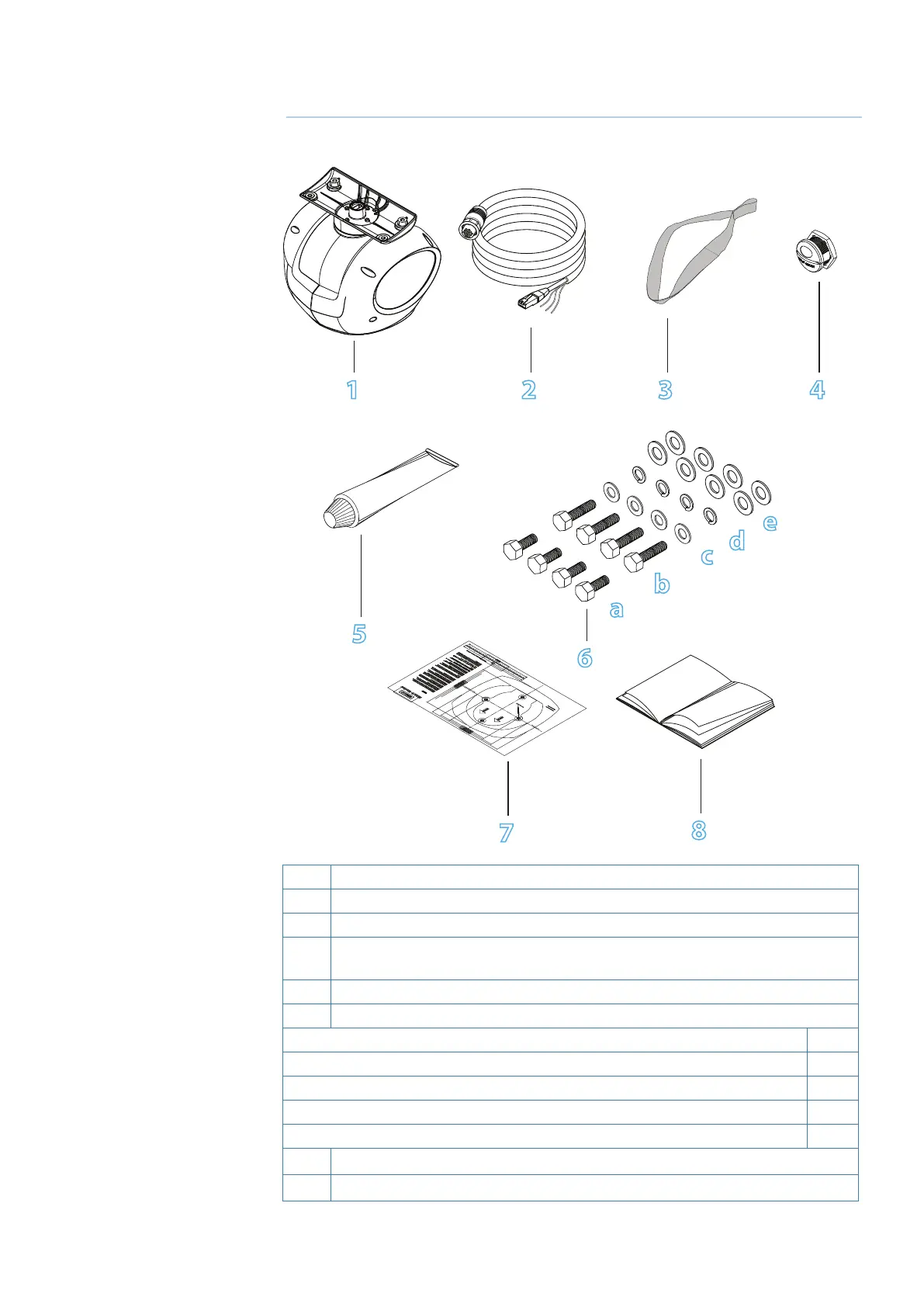

Check the parts
Pedestal
1 2 3 4
6
a
b
c
d
e
7
8
5
1 Radar pedestal
2 Interconnection cable 20 m (65 ft) (other lengths available)
3 Lifting strap
4 Blanking plug (used when interconnection cable connected underneath the
pedestal. Blanking plug is tted underneath when shipped)
5 Anti-seize grease
6 Mounting Bolts and washers
a) Bolts, hex head, M12 x 35 mm, 316 s/s x 4
b) Bolts, hex head , M12 x 50 mm, 316 s/s x4
c) Flat washer, M12 x 36 x 3, 316 s/s x4
d) Spring washer, M12, 316 s/s x4
e) Isolating washer, M12 x 38 x8
7
Drill template
8
This manual
2

Simrad Halo Specifications

General

Networking	Ethernet
IP Rating	IPX6
Range	Up to 72 nm (depending on model)
Operating Frequency	9.4 GHz (X-band)
Frequency	X-Band
Display Compatibility	Simrad multifunction displays
Antenna Length	24" or 20"
Supply Voltage	10-32 V DC
