Hardware mounting |Halo pulse compression radar installation manual

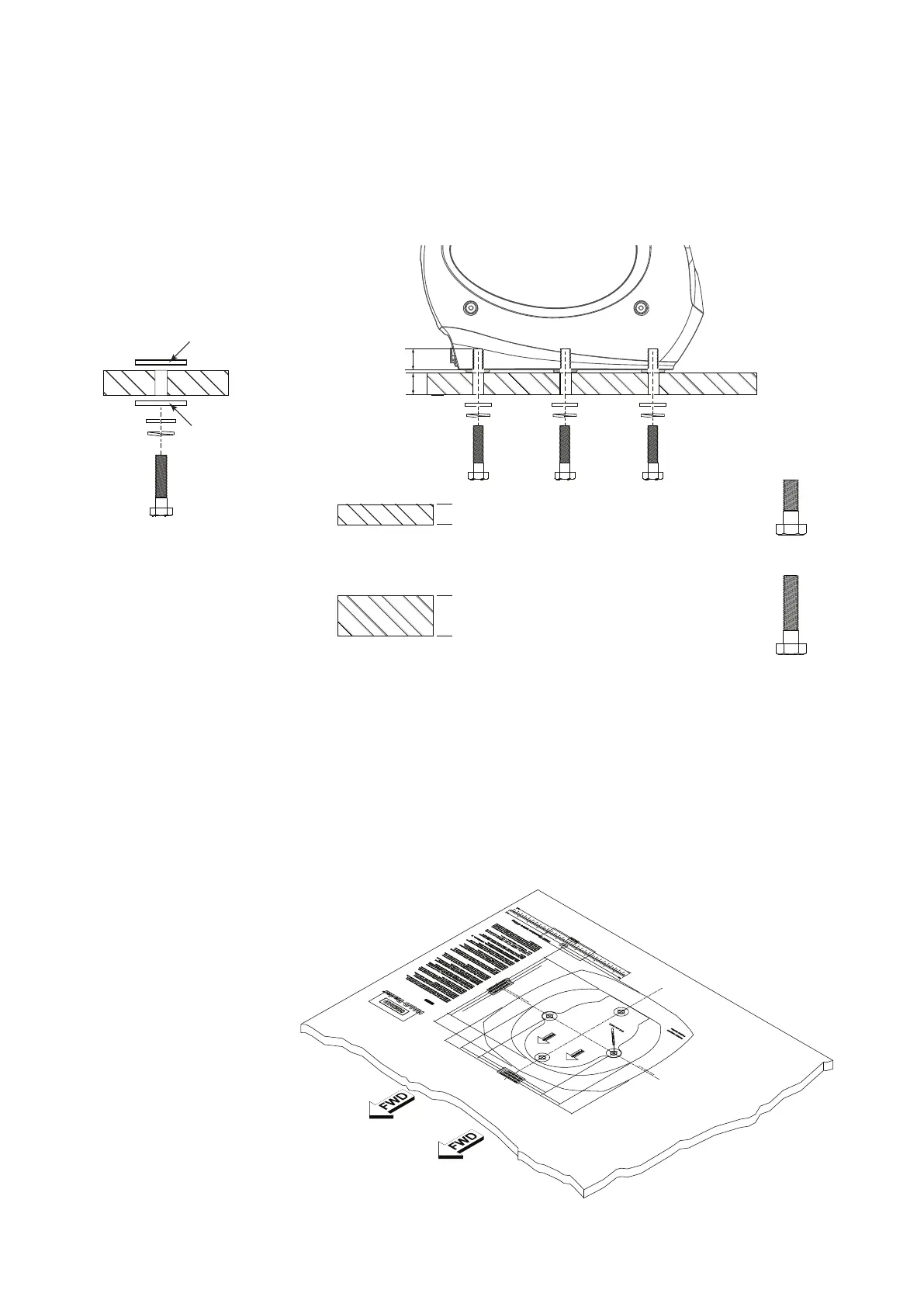

Install the pedestal
The eight hex head bolts supplied are suitable for surfaces up to 25 mm (1”) in thickness.
Use the 4 x M12 x 35 mm for a surface thickness from 5 mm (0.2”) up to 13 mm (1/2")
Use the 4 x M12 x 50 mm for surface thickness from 13 mm (1/2”) up to 25 mm (1”)
If using longer bolts make sure they are of marine grade stainless steel and allow for minimum
of 12 mm (0.3”) and maximum of 20 mm (0.7”) of thread contact.
20 mm (0.7")
25.4 mm (1.0") max
Surface thickness from 13 mm (1/2”) up to 25 mm (1”) Use Bolt
4 x M12 x 35 mm
4 x M12 x 50 mm
5.0 mm (0.2") min
Surface thickness from 5 mm (0.2”) up to 13 mm (1/2") Use Bolt
1. Run the interconnection cable between the pedestal and the location of the RI-12 Interface
module. The 14 pin connector end of the interconnection cable connects to the pedestal.
¼ Note: Protect the connectors especially the RJ45 connector when pulling cable through the
boat and avoid putting strain on to the connectors
¼ Note: The interconnection cable is 9 mm in diameter. A 14 mm hole will be required in order
for the RJ45 connector end to pass through to the RI-12 or 24 mm for the 14 pin connector to
pass through to the pedestal..
2. Stick down the mounting template in the desired installation location, observing correct
orientation. (Minor deviation can be compensated for in the radar software).
Steel
Isolating washer
Isolating washer
For steel boats use the supplied
isolating washers

Simrad Halo Specifications

General

Networking	Ethernet
IP Rating	IPX6
Range	Up to 72 nm (depending on model)
Operating Frequency	9.4 GHz (X-band)
Frequency	X-Band
Display Compatibility	Simrad multifunction displays
Antenna Length	24" or 20"
Supply Voltage	10-32 V DC
