Simrad Halo User Manual

| 17
Hardware mounting | Halo pulse compression radar installation manual

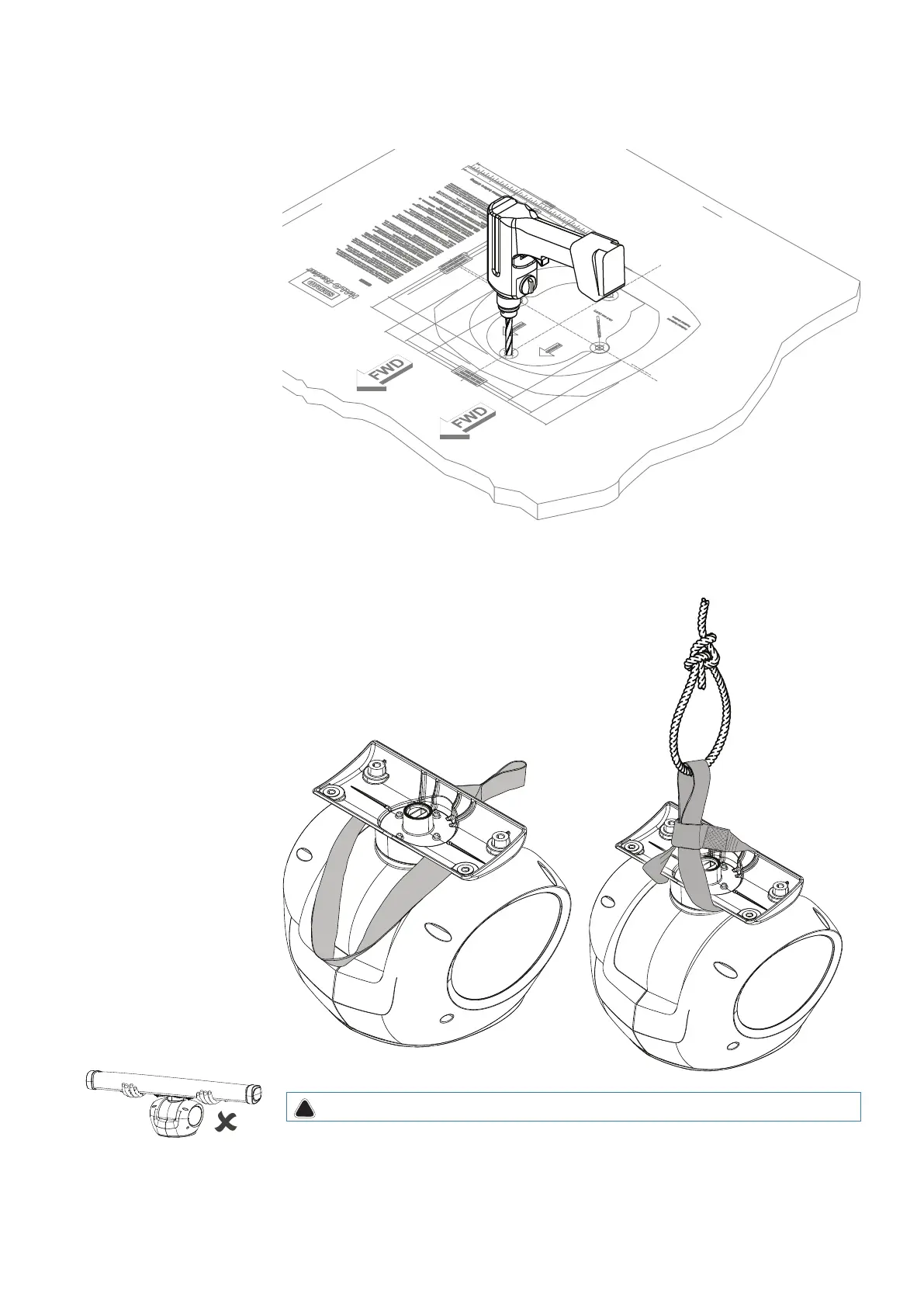

3. Drill pilot holes, Then use a 12.5 mm (1/2”) drill bit to drill the four holes where shown on the
mounting template.
4. Remove the mounting template .
5. Lift the pedestal into position using the supplied lifting strap.
!
Warning: Do not lift the pedestal with the antenna attached


Simrad Halo Specifications

General

Networking	Ethernet
IP Rating	IPX6
Range	Up to 72 nm (depending on model)
Operating Frequency	9.4 GHz (X-band)
Frequency	X-Band
Display Compatibility	Simrad multifunction displays
Antenna Length	24" or 20"
Supply Voltage	10-32 V DC
