Simrad NSO evo3S Installation Manual

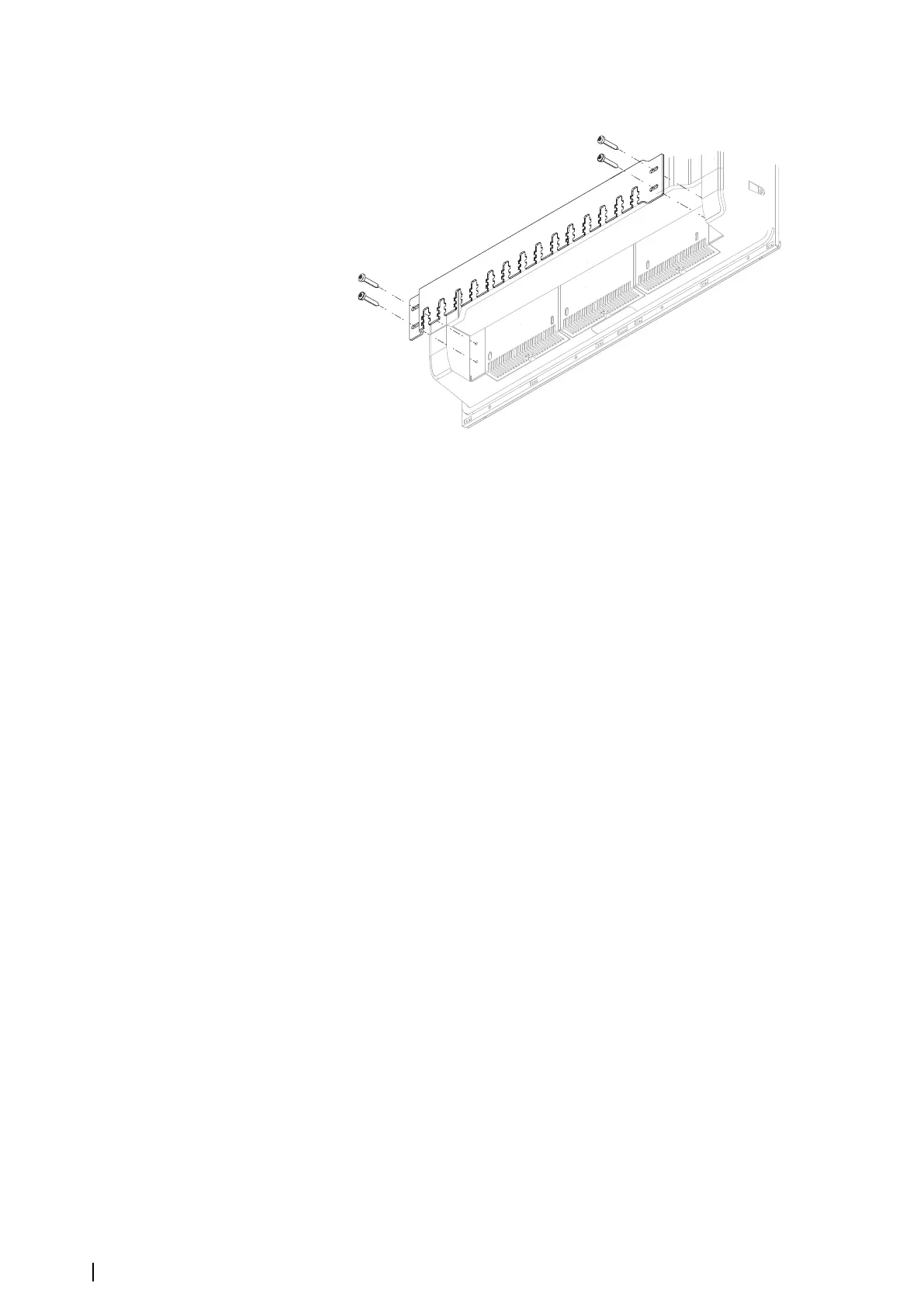

Cable retainer installation
With the cable and plug fitted in place, secure the cable to the retention bracket using a
cable tie. Do not secure in such a way that it applies strain to the cable, or causes the plug or
socket to be bent out of alignment.
Panel mounting
Refer to the separate mounting template for panel mounting instructions.
Bracket mounting
For bracket mounting refer to separate documentation supplied with the bracket kit (sold
separately).
12
Installation | NSO evo3S Installation Manual

Simrad NSO evo3S Specifications

General

Display Size	16 inches
Touchscreen	Yes
Power Supply	12/24 V DC
Waterproof Rating	IPX6
Processor	iMX8
RAM	4 GB
Connectivity	Ethernet, NMEA 2000
Operating System	Linux
Mounting	Flush or bracket mount
