Introduction

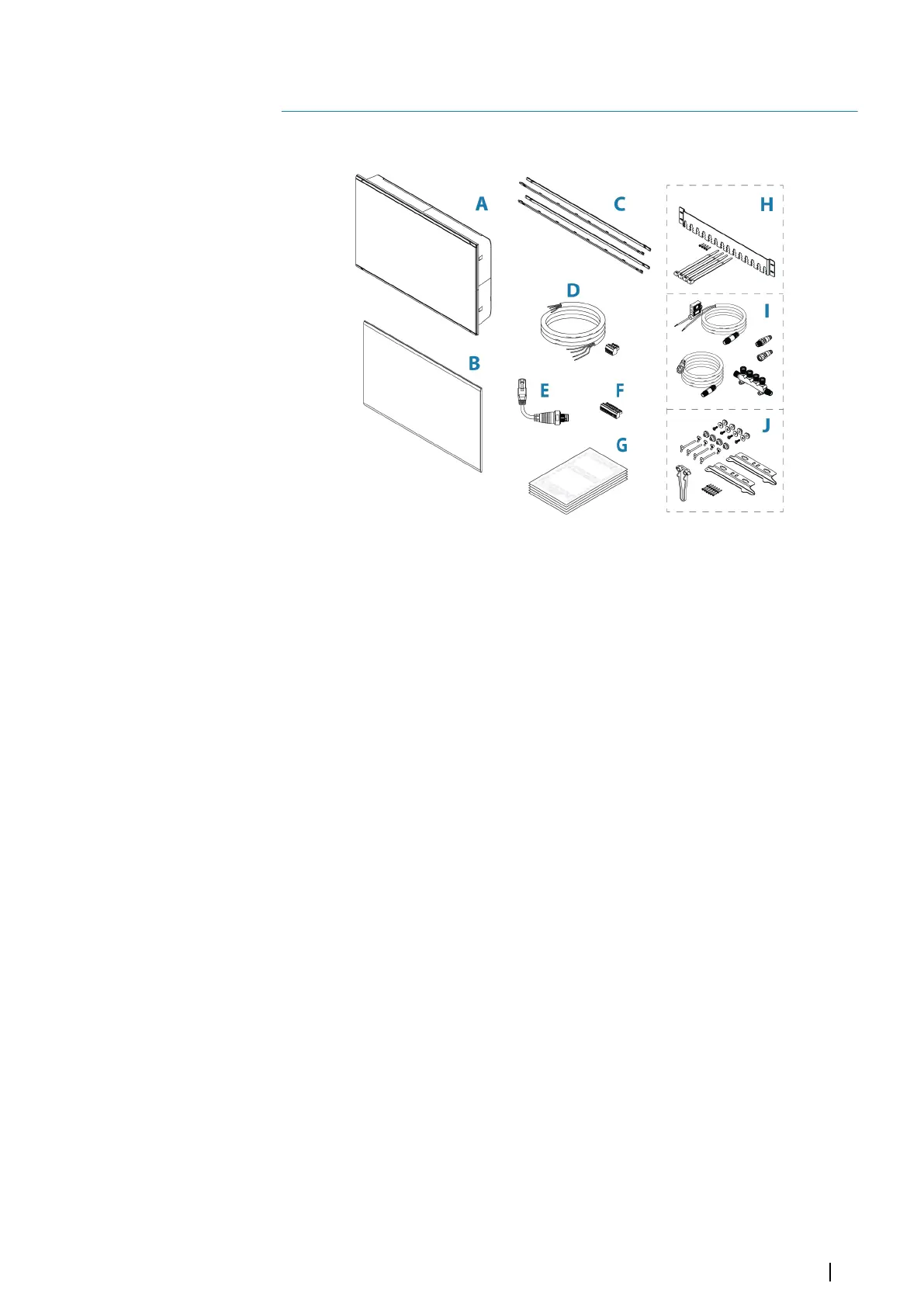

Parts included
A Display unit
B Suncover
C Bezels
• 1 set black bezels
• 1 set silver bezels
D Power cable and connector block
E RJ45 to 5-pin Ethernet adapter cable
F NMEA 0183 connector block
G Documentation pack
H Cable retainer kit
I NMEA 2000 starter kit
Ú
Note: Supplied with the system pack only.
J Panel mounting kit
1
Introduction | NSO evo3S Installation Manual
7
