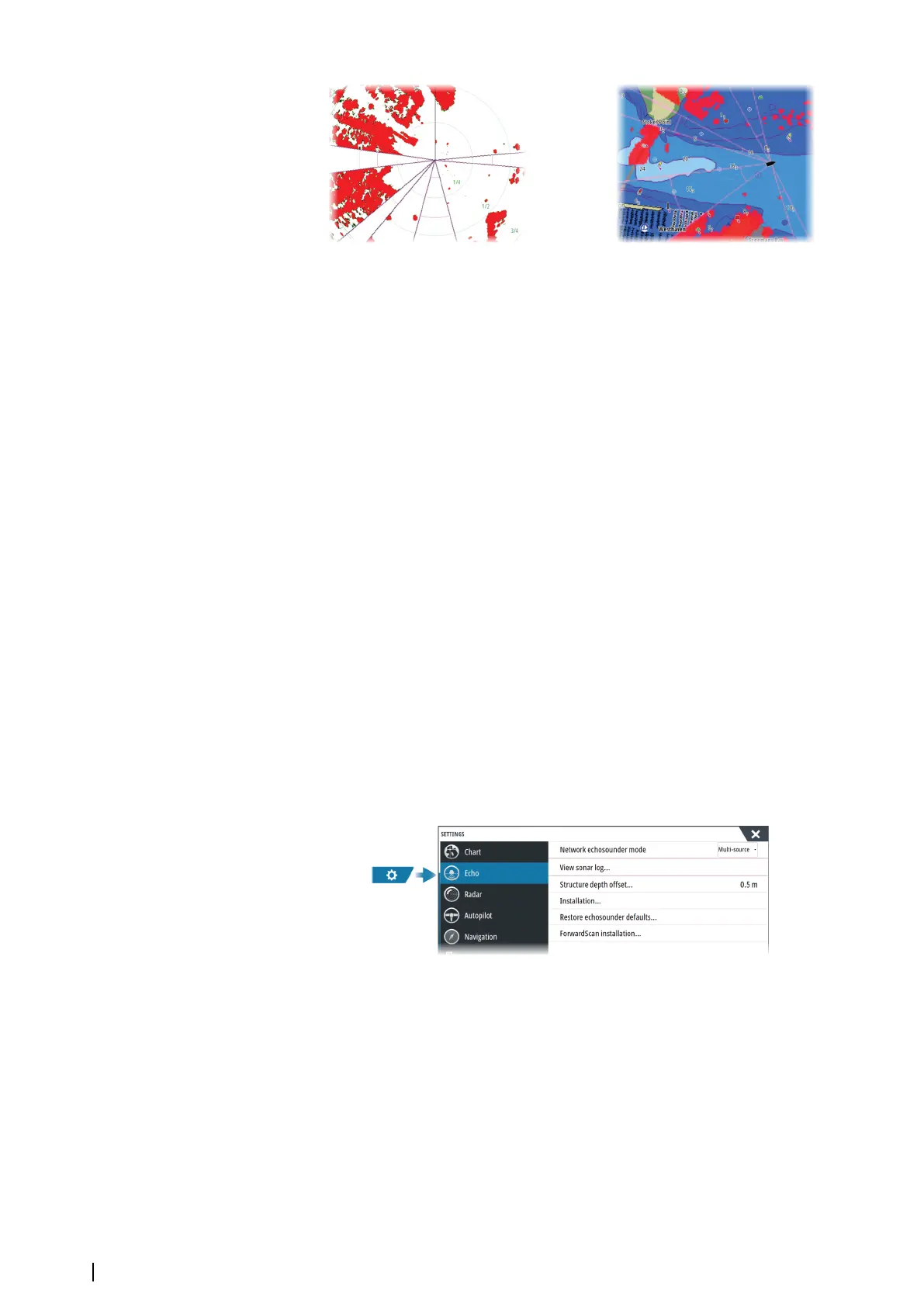

Main radar PPI Radar overlay on a chart
Adjust open array park angle
The park angle is the final resting position of the antenna relative to the heading line of the
radar when the radar is set to standby. The antenna will stop rotating at the desired offset.
Adjust local interference reject
Interference from some onboard sources can interfere with the Broadband radar. One
symptom of this could be a large target on the screen that remains in the same relative
bearing even if the vessel changes direction.
Halo light
Controls the levels of the Halo Radar blue accent lighting. The accent lighting can only be
adjusted when the radar is in standby mode.
Ú
Note: The blue accent pedestal lighting might not be approved for use in your boating
location. Check your local boating regulations before turning the blue accent lights ON.
Reset radar to factory defaults
Clears all user and installer settings applied to the selected radar source, and restores factory
settings.
Ú
Note: Use this option with caution. Take note of current settings first, especially those set
by the operator if radar has already been in active service.
Echosounder settings
A compatible echosounder module (or another unit which has built-in sonar) shared over
the Ethernet network is required to view echosounder images on the unit.
Network echosounder mode
The network echosounder mode setting selects whether only one or multiple echosounder
sources can be selected at the same time.
Ú
Note: Changing the mode requires that all connected sources are restarted.
Overlay DownScan
When a DownScan capable transducer is connected to your system, you can overlay
DownScan images on the regular Echosounder image.
When overlay DownScan is activated, the Echosounder panel menu expands to include basic
DownScan options.
26
Software setup | NSO evo3S Installation Manual
