External GPS | NSS Installation Manual

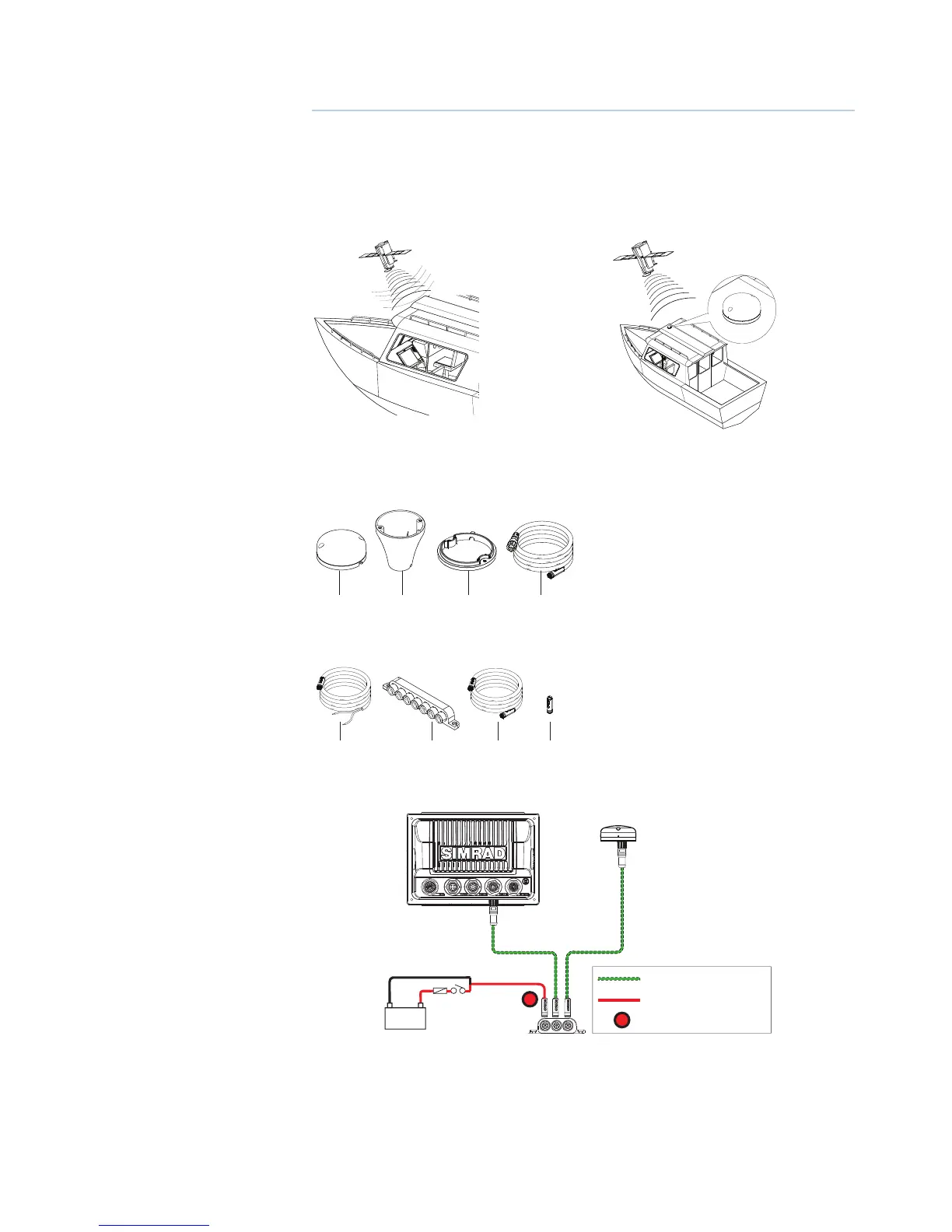

External GPS
Mounting location
Depending on vessel design and materials, certain mounting locations chosen for the NSS
may not o er adequate GPS satellite signal reception using the internal receiver. An External
GPS source such as the GS15 can be used to overcome this, by allowing remote installation
in a location that has an unobscured view of the sky.
GPS Signal
EXTERNAL GS15 GPS ANTENNA
GPS Signal
Parts required for external GPS
000-0125-25 GS15 GPS Antenna
1 2 3 4
1 GS15 Antenna
2 Pole mount
3 Surface mount gasket
4 Micro-C to SimNet cable 4 m (13 ft)
SIMKIT-1: SimNet Starter Kit
2 3 41
1 SimNet Power cable
2 SimNet 7 way Joiner
3 SimNet cable
4 SimNet Terminator
Note: Refer to chapter 11 NMEA2000/SimNet for further details on connecting to SimNet.
12 V DC
T
T
Mico-C to SimNet
SimNet power
SimNet terminator
-
+
For setting the external GPS as position source, refer to ‘“NMEA 2000 / SimNet setup” on page
38.
5
