RADAR | NSS Installation Manual
RADAR

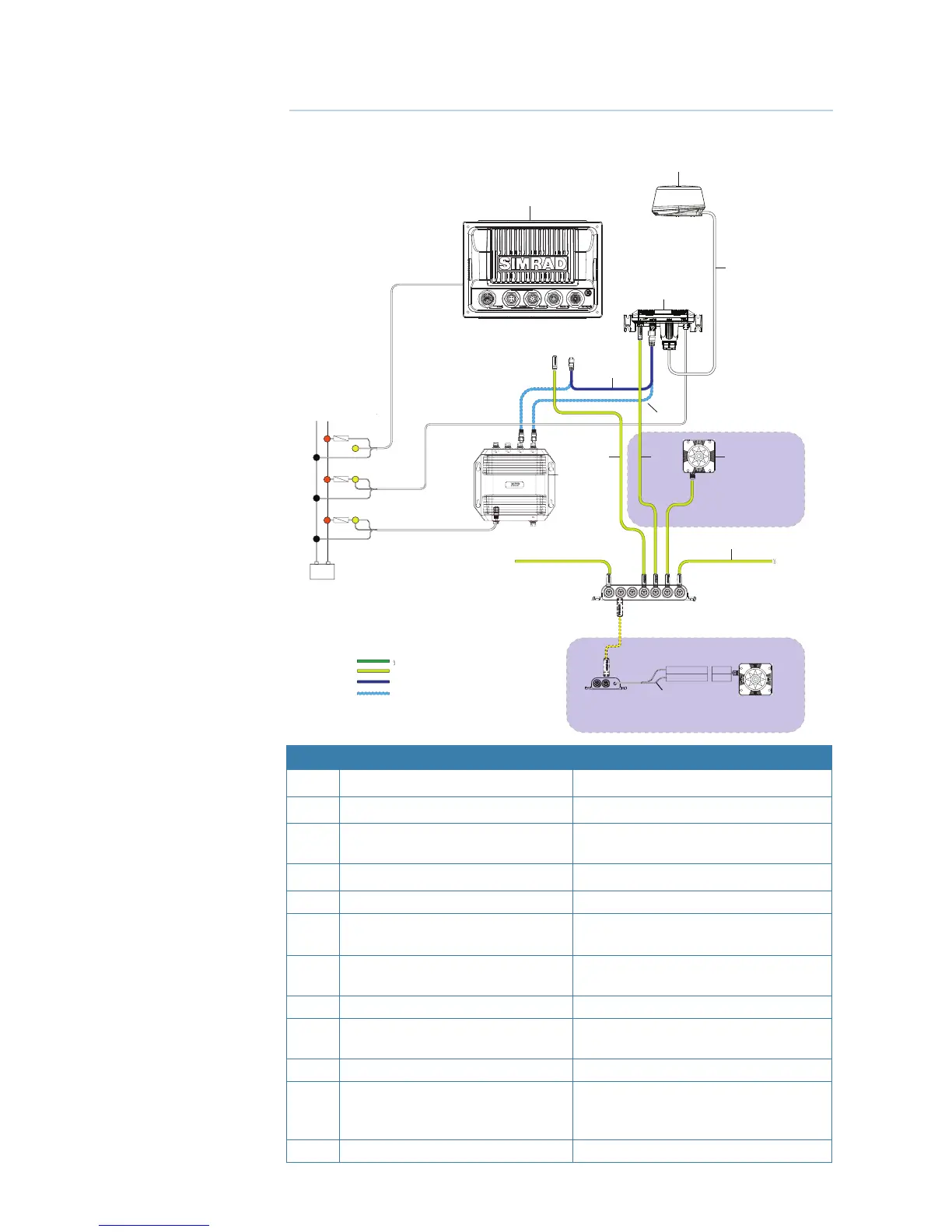

Broadband radar (BR24 and 3G)
+
_
NMEA2000 cables
SimNet cables
Ethernet cable
Ethernet cables if
using NEP-2
FUSE
FUSE
FUSE
7
4
6
5
8
7
9
12
10
3
2
Magnetic heading source
required for Chart overlay
/ MARPA
SimNet Network
Brown RX-
White RX+
AT10HD
NMEA083 to SimNet
Converter Heading Only
Cut off 12 Pin
plug to expose bare wires
NMEA0183 10 Hz Heading
(e.g Gyro, Sat Compass)
Alternative: NMEA0183 heading
TX-
TX+
11
1
SimNet
Ethernet
Key Description Notes
1 NSS display
2 BroadBand™ Radar Scanner
3 Interconnection cable Standard 20 m (65 ft) cable. Optional
lengths: 10 m (33 ft) and 30 m (98 ft)
4 RI10 Radar interface box
5 Ethernet cable Radar supplied with a 1.8 m (6 ft) cable
6 Ethernet cables Additional required to connect radar via a
NEP-2
7 Ethernet expansion port NEP-2 (000-
0132-031)
8 SimNet to Micro-C cable
9 SimNet drop cable. Allows display to receive heading informa-
tion for chart overlay and MARPA
10 RC42 Heading Sensor (22090195)
11 AT10HD NMEA0183-SimNet Converts NMEA0183 to SimNet /
NMEA2000 (Only heading information is
converted)
12 SimNet backbone
