Simrad NSS12 Installation Guide

|
27

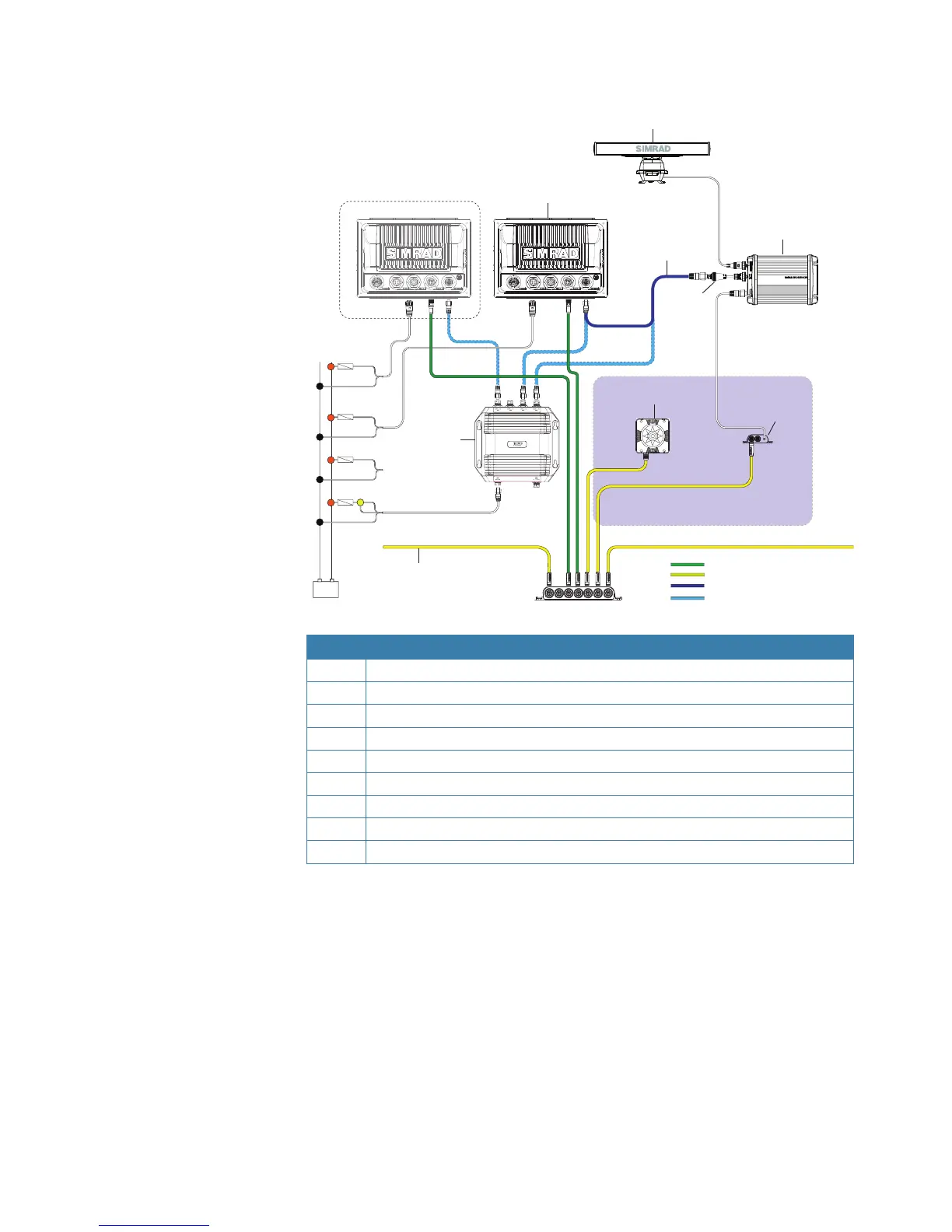

RADAR | NSS Installation Manual
HD radar
+
_
Magnetic heading source required
for Chart Overlay / MARPA
N2k-SimNet Cable
SimNet cables
Ethernet cable
extra ethernet cables
F
Optional second NSS
FUSE
FUSE
FUSE
FUSE
1
2
3
6
4
5
7
8
8
Key Description
1 NSS Display
2 HD Radar Scanner
3 HD Radar Processor Module
4 Ethernet adaptor cable
5 Ethernet cable (Navico 5 pin type)
6 NEP-2 Expansion Port module (optional - used where extra ports are required)
7 RC42 rate compass
8 AT10HD (provides heading data to radar processor for radar overlay and MARPA)
9 SimNet cable
