Ú
Note: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin
adaptor cable. However, if the transducer has a paddle wheel speed sensor, the water-
speed data will not be displayed on the unit.
Ú
Note: For transducer installation information, refer to separate installation instructions
included with the transducer.
Ethernet connector
The unit is equipped with an Ethernet port, which allows connecting the unit to your
network using the 5 pin Ethernet connector.
Ú
Note: The 7" and 9" units have one Ethernet port, where as the 12" and 16" have two.
Connection of network devices, such as radar, sonar, and other multifunction displays, can be
made directly to the Ethernet port, or via a network expansion device to the Ethernet port.

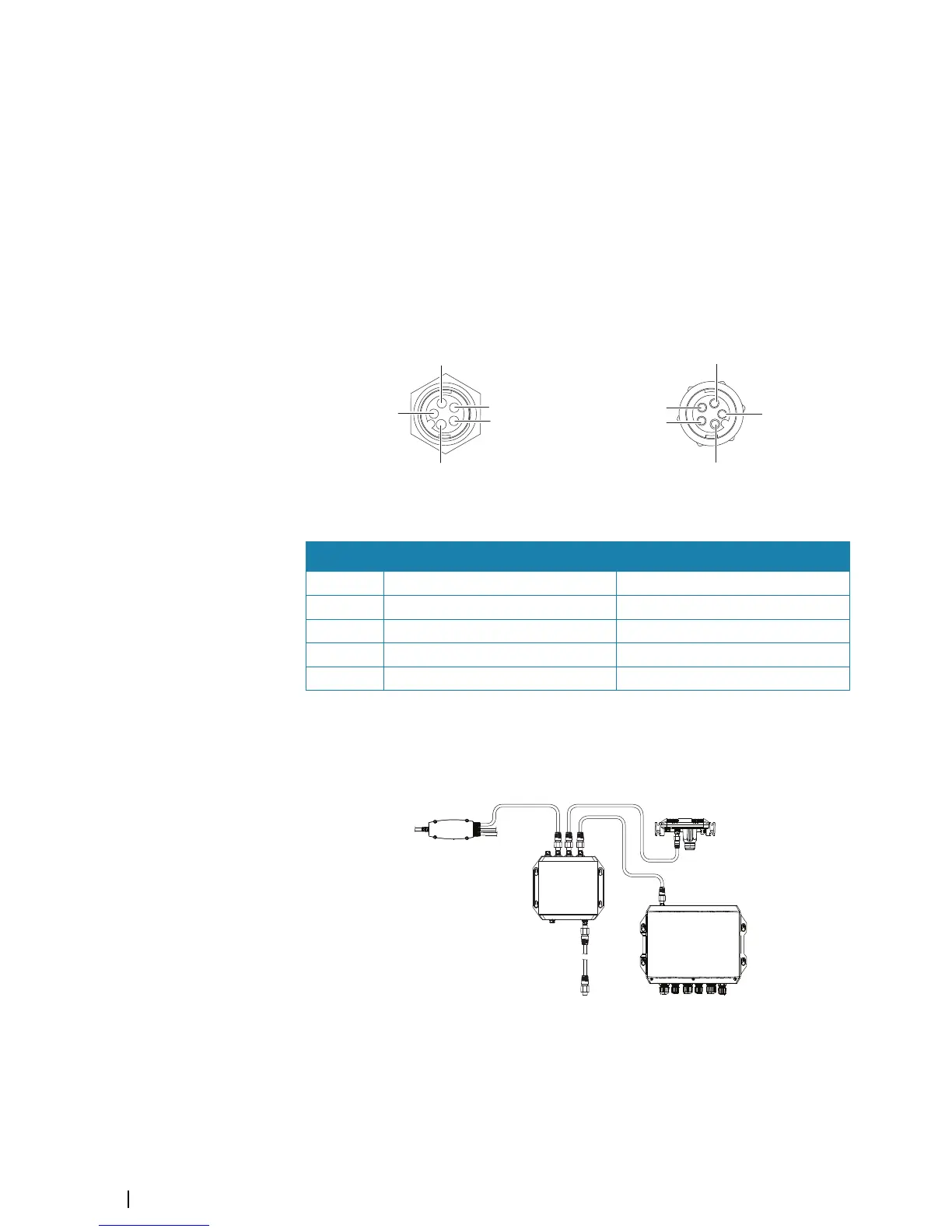

Cable plug (male)
Key Purpose Color
1 Transmit positive TX+ Blue/White
2 Transmit negative TX- Blue
3 Receive positive RX+ Orange/White
4 Receive negative RX- Orange
5 Shield Bare
Ethernet expansion device
Connection of network devices can be made via an Ethernet expansion device. Additional
expansion devices can be added to provide the required number of ports.
1 Ethernet connector to unit
2 Ethernet expansion device
3 Network devices
22
Wiring | NSS evo3 Installation Manual
