Video in
The unit can be connected to two composite video sources, and display video images on its
display.
The video input cable is fitted with female RCA plugs - the camera cables should be
terminated with male RCA cables to suit.
Ú
Note: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
Ú
Note: Both NTSC and PAL formats are supported.

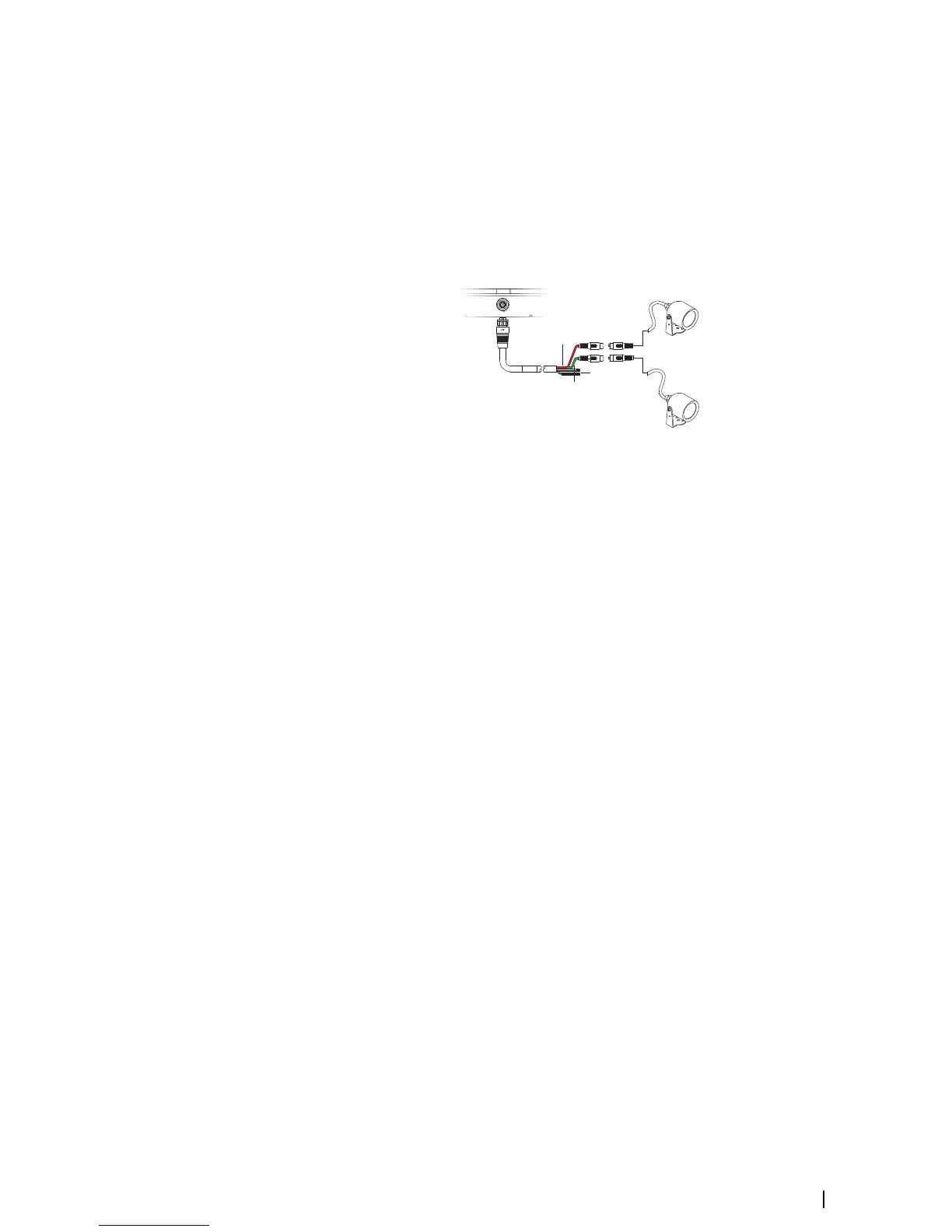

1 Cable connector to Video port on unit
2 Camera A input (red cable)
3 Camera B input (green cable)
4 NMEA 0183 cables
Wiring | NSS evo3 Installation Manual
23
