Simrad NSS7 EVO3 COMBO Installation Manual

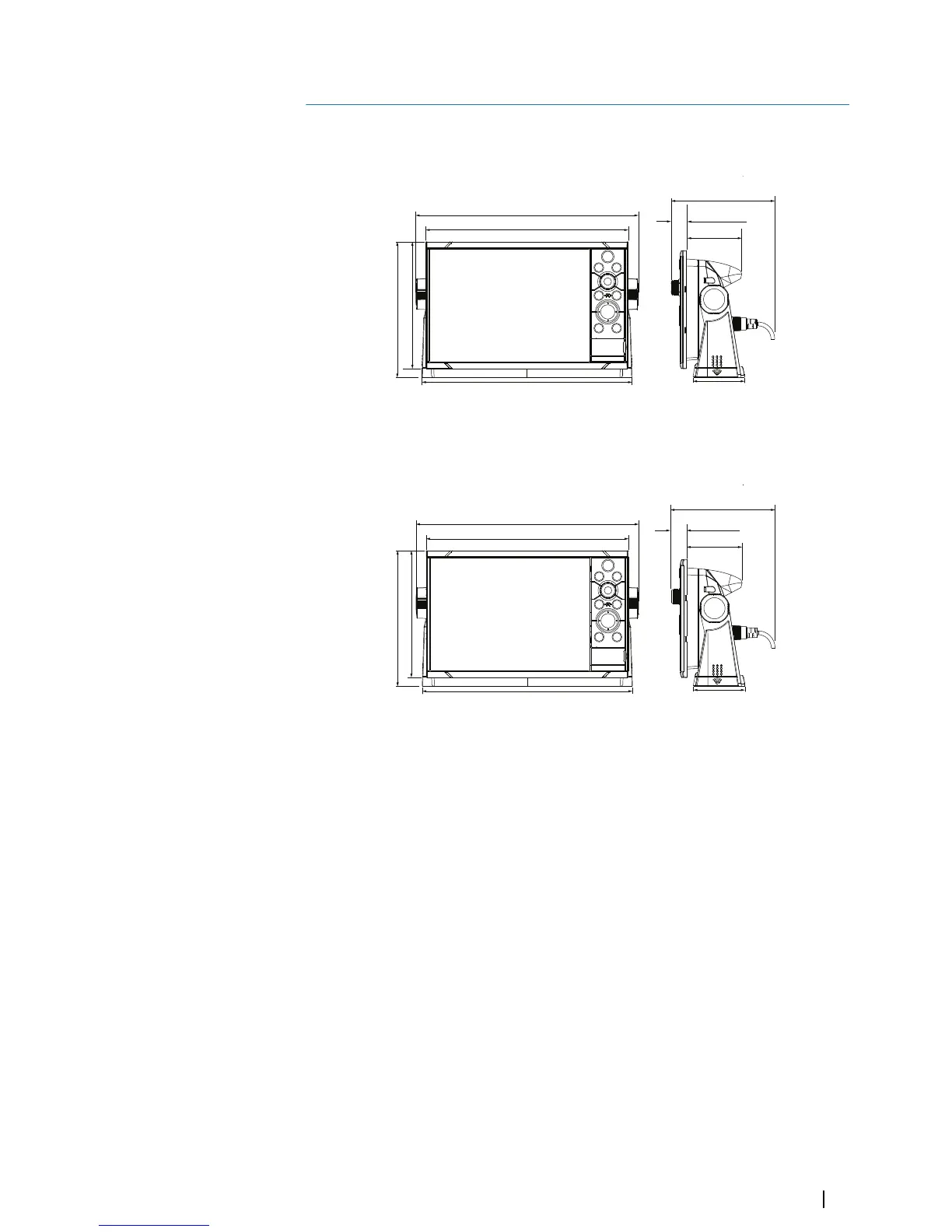

Dimensional drawings
7" Unit dimensions
263.0 mm (10.35”)
239.0 mm (9.41”)
160.3 mm (6.30”)
131.0 mm (5.15”)
(2.75”)
18.5 mm (0.73”)
70.0 mm
149.9 mm (5.90”)
248.2 mm (9.77”)
65.3 mm (2.57”)
9" Unit dimensions
310.9 mm (12.24”)
287.0 mm (11.30”)
179.5 mm (7.07”)
166.3 mm (6.55”)
131.0 mm (5.15”)
(2.74”)
18.5 mm (0.73”)
69.6 mm
66.6 mm (2.62”)
296.2 mm (11.66”)
9
Dimensional drawings | NSS evo3 Installation Manual
51

Simrad NSS7 EVO3 COMBO Specifications

General

Brand	Simrad
Model	NSS7 EVO3 COMBO
Category	Marine Equipment
Language	English
