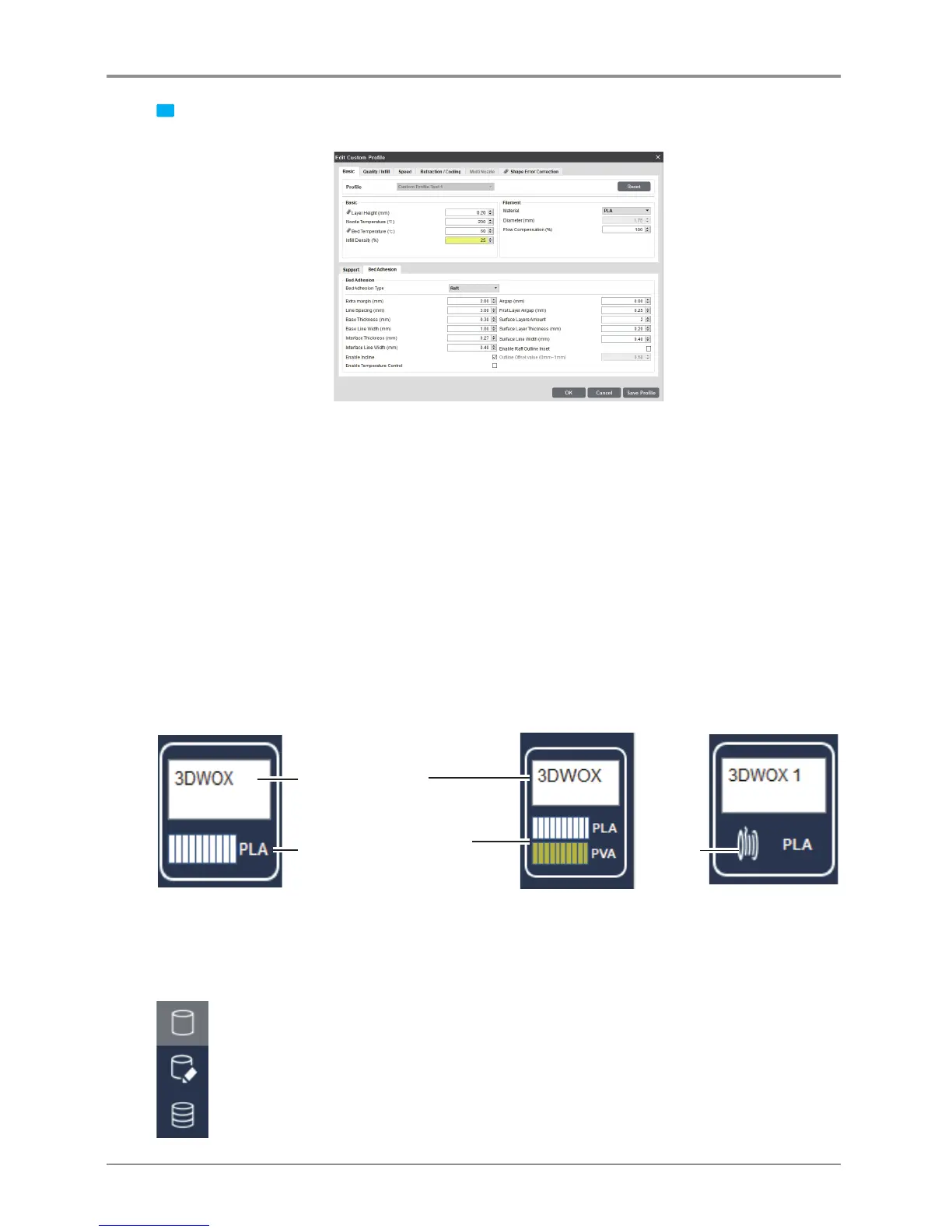

2 Clicking the [Edit] button → [Edit Custom Profile] window
- This window is for editing and saving existing profile values.
- Clicking the [Reset] button will reset the setting values before they are saved (before the “OK” or
“Apply” button is clicked).
- In the case of the 3DWOX 1, 2X/2X DP303 and 1X/1X DP302 1 model, the “Filament” and the
“Material” fields of the [Default Setting] will show the “ETC” profile.
The user should select the “ETC” material if he/she uses a material that is different from those
provided by Sindoh.
* [OK] button: This will save all the setting values and close the dialog box.
* [Cancel] button: This will close the dialog box without saving the setting values.
* [Save Profile] button: This will save the profile setting values without closing the window.
2.4 Filament Information Indicator
Printer automatically reads condition of filament in printer and displays on screen.
Detail description
Current default printer
name
In open
material
mode
Current quantity, condition
and remaining material
of filament inside the printer
<DP200/DP102, DP201/DP202,
3DWOX 1,1X/1X DP302 >
<2X/2X DP303 > <3DWOX 1,
2X/2X DP303,
1X/1X DP302>
2.5 View Mode Selection Button
At the top right hand side of the viewer, you will see buttons as shown on the left. Clicking the button
on the screen will display three types of view modes to be selected. (From the top, Normal View,
Support Edit View, Layer View ) Once selected, the selected view type is highlighted for the user.
