6.3 Sanitation Care and cleaning instructions for the practice team C2
+
, M1
+
59 58 512 D 3370
22 D 3370.103.01.13.02

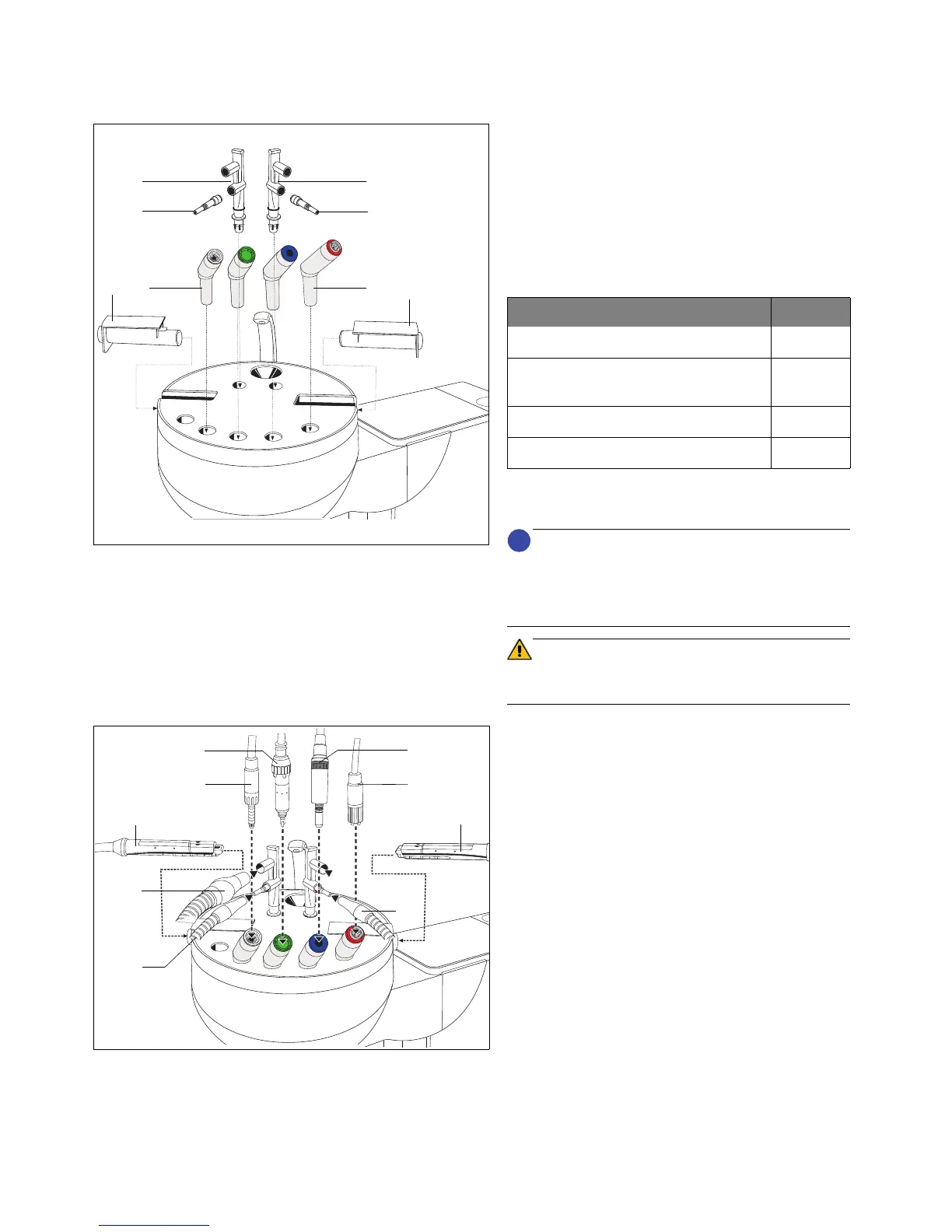

• Place the sanitation bowl with cover on the cuspidor.
The sanitation bowl container must always be clean!
• Insert the cleaning adapters for the instrument cou-
plings (1), SPRAYVIT valve bodies (2) and suction
hoses (3) up to the stop in the sanitation bowl as il-
lustrated.
The adapters for the instrument couplings are marked in
the same colors as the hose couplings:
• For the saliva ejector hose, insert the intermediate
piece (4) in the cleaning adapter.
NOTE
i
To prevent the hoses from twisting and stretching, the ar-
rangement of the cleaning adapters from left to right
should correspond to the arrangement of the instruments
on the dentist element.
ATTENTION
Be careful not to snap off the instrument hoses when in-
serting the instruments.
The water paths must always be sanitized without
the treatment instruments attached!
• Pull the treatment instruments off the couplings and
the SPRAYVIT sleeves off the valve bodies.
• Insert the SPRAYVIT hoses with the valve bodies (5)
from the dentist element and assistant element up to
the stop in the adapters on the right and left (valve le-
ver facing up, locking button facing down).
• Insert the following couplings in the corresponding
color-coded adapters up to the end stop or until they
lock in place:
– SL motors (6)
,
– Electric motors with interface acc. to ISO 3964,
e.g. EL 1 motor (7),
– Highspeed handpiece (8) and
– SIROSONIC L (9)
The color ring on the instrument hose is located on
the cap nut.
• Pull off the suction nozzles.
1
1
2
2
3
3
4
4
Instrument Color
SL motor green
Electric motors with interface acc. to ISO
3964, e.g. EL 1 motor
blue
Highspeed handpiece white
SIROSONIC L red
