Assembly instructions
Components of the unit
Item description
1 Electric motor with terminal box
2 Gear pump with coupling
1
2
4. Assembly
4.1 Setup and attachment
The product should be protected from humidity
and vibration, and should be mounted so that
it is easily accessible, allowing all further in-
stallation work to be done without difficulty.
Make sure there is adequate air circulation to
prevent the product from overheating. For the
maximum permissible ambient temperature,
see "Technical data."
There are no restrictions with regard to the
mounting position of all the units.
During assembly and especially when drilling,
always pay attention to the following:
Existing supply lines must not be dam-
aged by assembly work.
Other units must not be damaged by as-
sembly work.
The product must not be installed within
range of moving parts.
The product must be installed at an ad-
equate distance from sources of heat.
Maintain safety clearances and comply
with local regulations for assembly and
accident prevention.

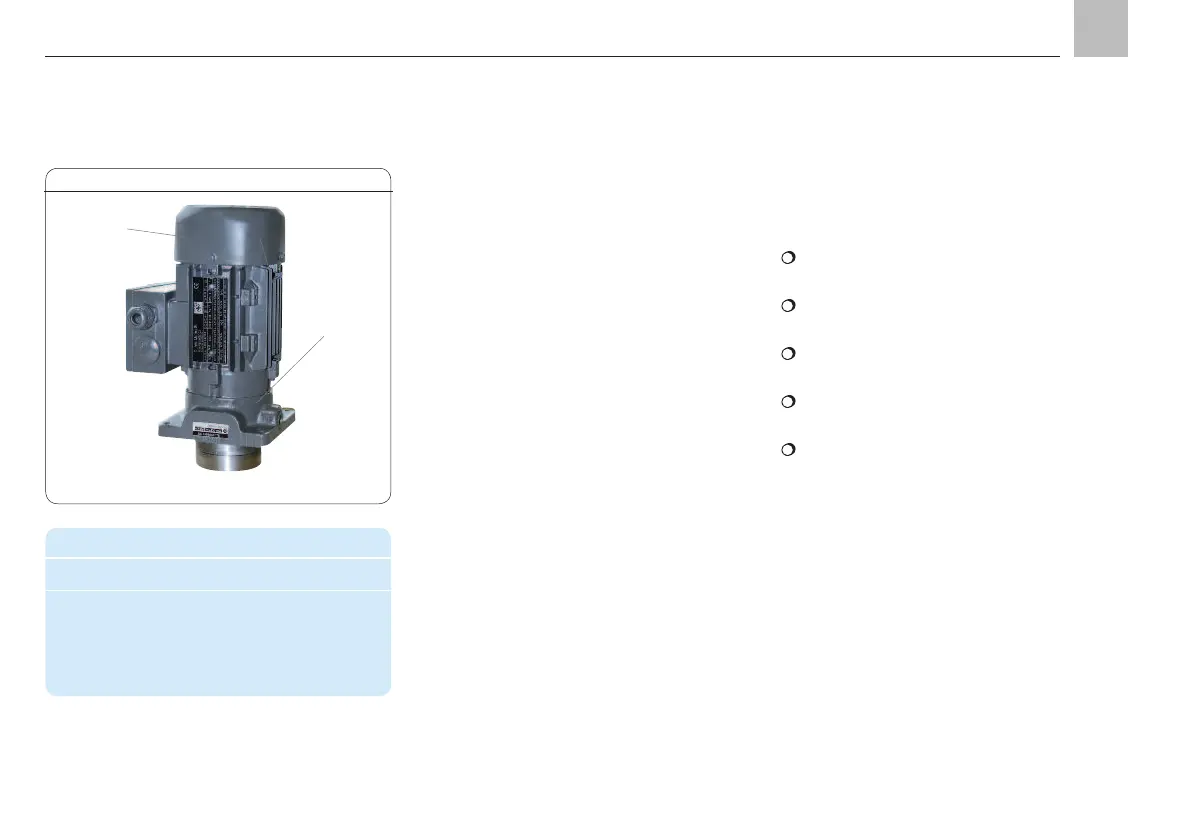

Fig. 2 Components of the UC unit
