Series 2 and 3,
UC and UD, for line installation, adjustable
M18x1,5
54
Ø31
M18x1,5
136,5
63
M18x1,5
46,5

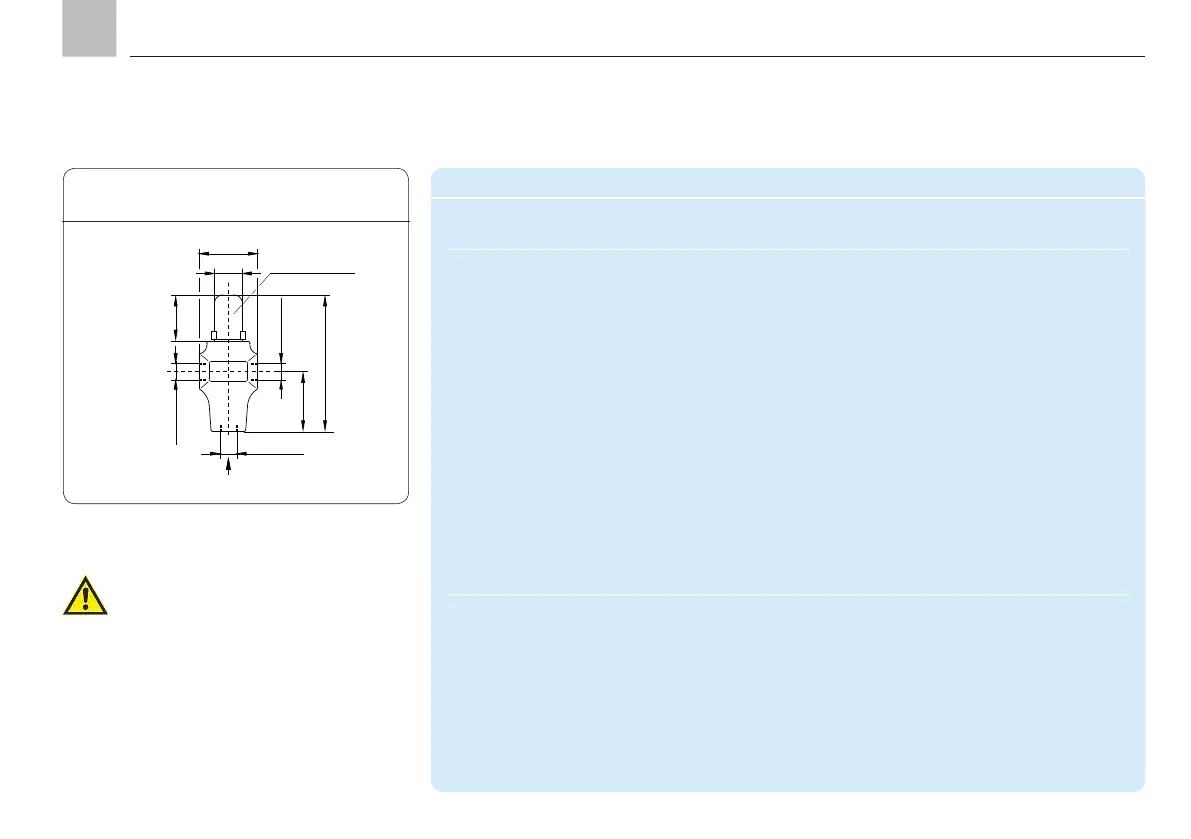

Pressure regulating valve, Series 2 and 3, for line installation
Application Operating pressure Order No.
UC/UD 3 - 10 bar
24-2103-3088
10 - 15 bar
24-2103-3089
15 - 50 bar
24-2103-3090
40 - 100 bar
24-2103-3091
70 - 180 bar
24-2103-3092
100 - 250 bar
24-2103-3093
Screw unions Dimensions Order no.
GE screw connection M 18 x 1.5 (Ø 12)
412-433
GE screw connection M 18 x 1.5 (Ø 15)
96-0315-0058
Sealing ring A 18 x 22
DIN7603-A18x22-Cu
Screw
M 18 x 1.5 95-1518-0908
Warning!
W
hen the pressure regulating valve is used
for line installation, the pump-side mounting
hole (M30x1.5) must be closed with a plug
Order number 44-1821-2194.
Cap plug
10. Accessories
Seling material FPM
