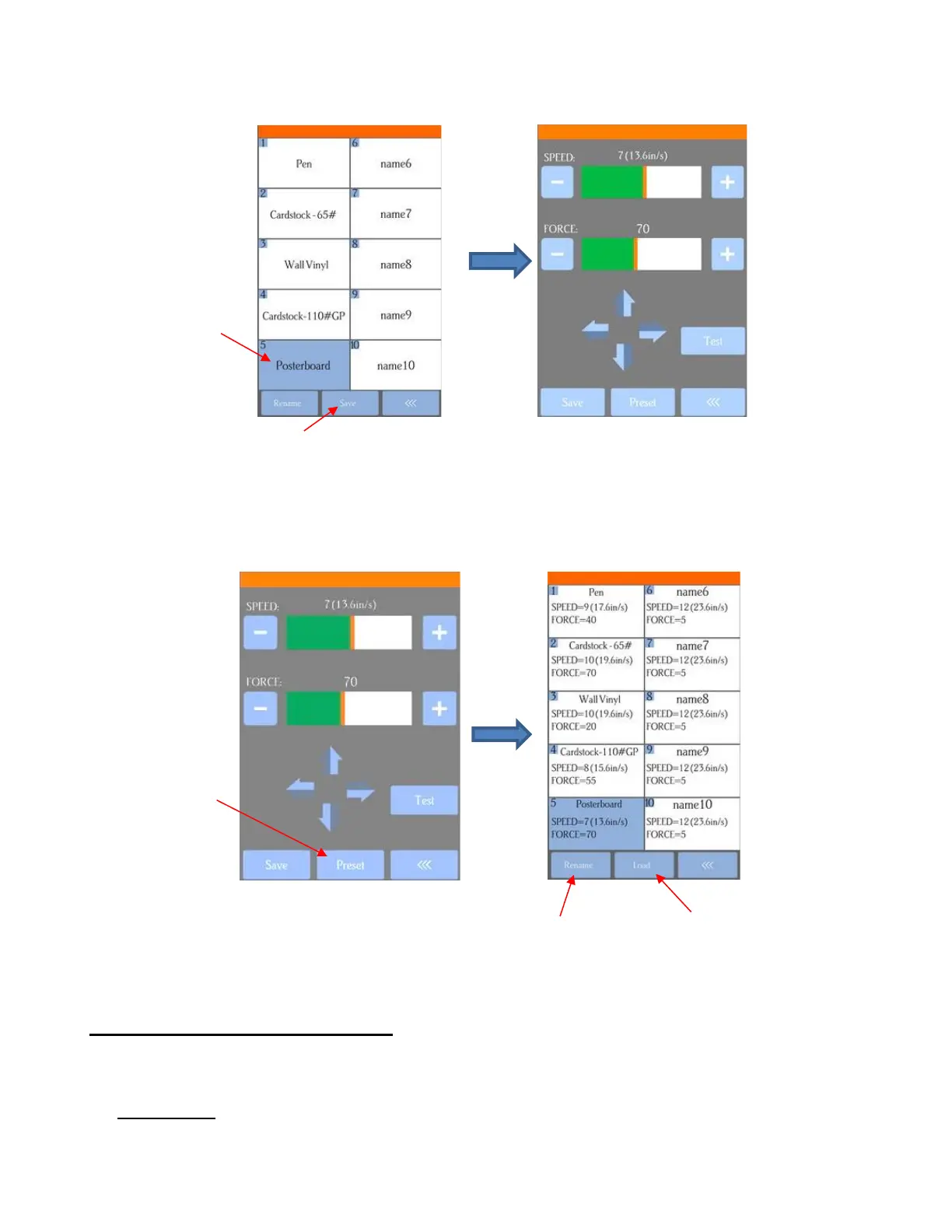

• To verify the preset or to select a different preset, press Preset. The Preset window opens where you can
see all of the Presets, along with the settings for those presets. In that window you can also select a
different preset. Then you can select Rename to edit its name or select Load to select that preset’s Force
and Speed into the Force/Speed screen.
2.05 Setting the Origin before Cutting
• Before you cut, you should check to see where the blade tip is located in relation to the material so that the
shapes will cut in the appropriate location.
• IMPORTANT! The C16 Skycut has a maximum cutting width of 16 inches. If you move the head too far to
the left to begin the cut and your project is wide, you may exceed the left side limit and cutting will stop at
that point with no option but to abort. The same can occur with the C24.
