185
SJ30AJE, SJ30ARJE 196274AF
Base Section 5 – Procedures

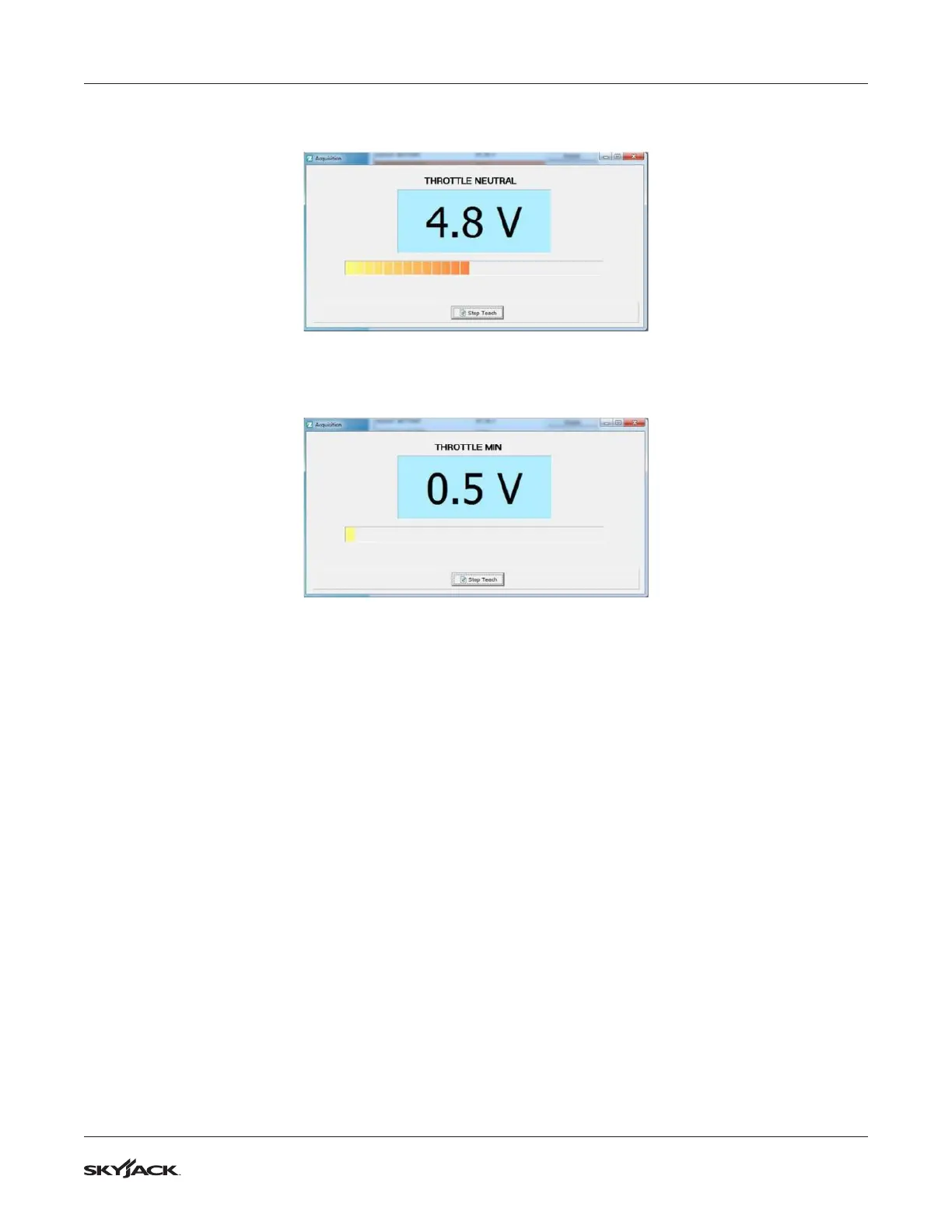

8. Throttle Min: Click Aquire next to Throttle Min. The same dialogue box appears, displaying the value of
the neutral position.
9. Now push the joystick to its minimum position (fully backwards). You will see the voltage drop as the
joystick is moved.
10. With the joystick at the minimum position, click Stop Teach. The dialogue box closes and the minimum
value is stored. Note: do not release the joystick until Stop Teach has been pressed and the dialogue box
closes.
11. The traction joystick is now programmed.
