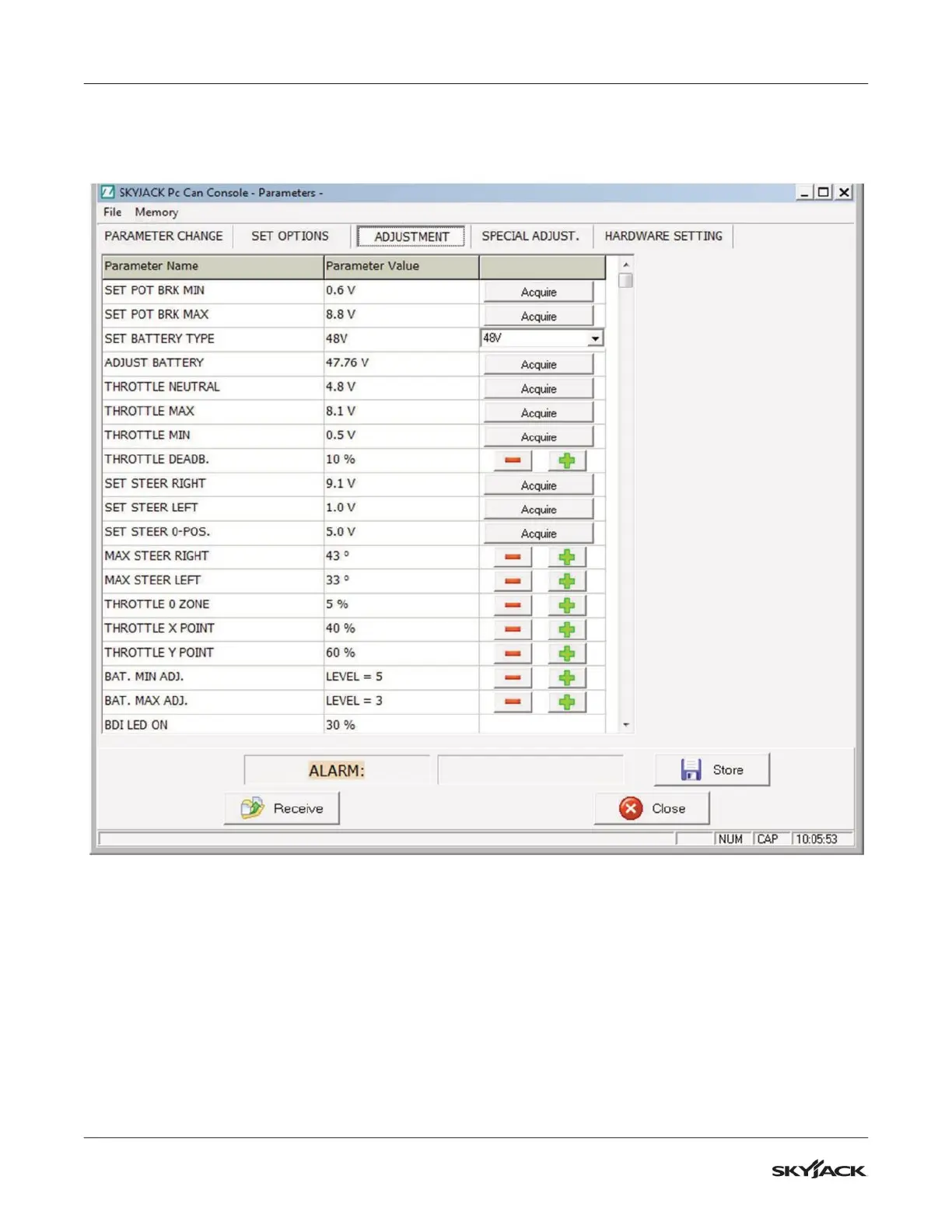

Programming the Steer Potentiometer
1. Receive the parameters and enter them into the Adjustments menu.
2. You will see three settings: Set Steer 0-Pos, Set Steer Right, and Set Steer Left. It is necessary to program
each setting individually.
3. Note that when installing the feedback device to the machine, when the wheels are in the straight ahead
position, the reading from the device should be 1/2 the maximum value (approximately 5 V).
