213205AAA
SJ82 T
, SJ86 T
80

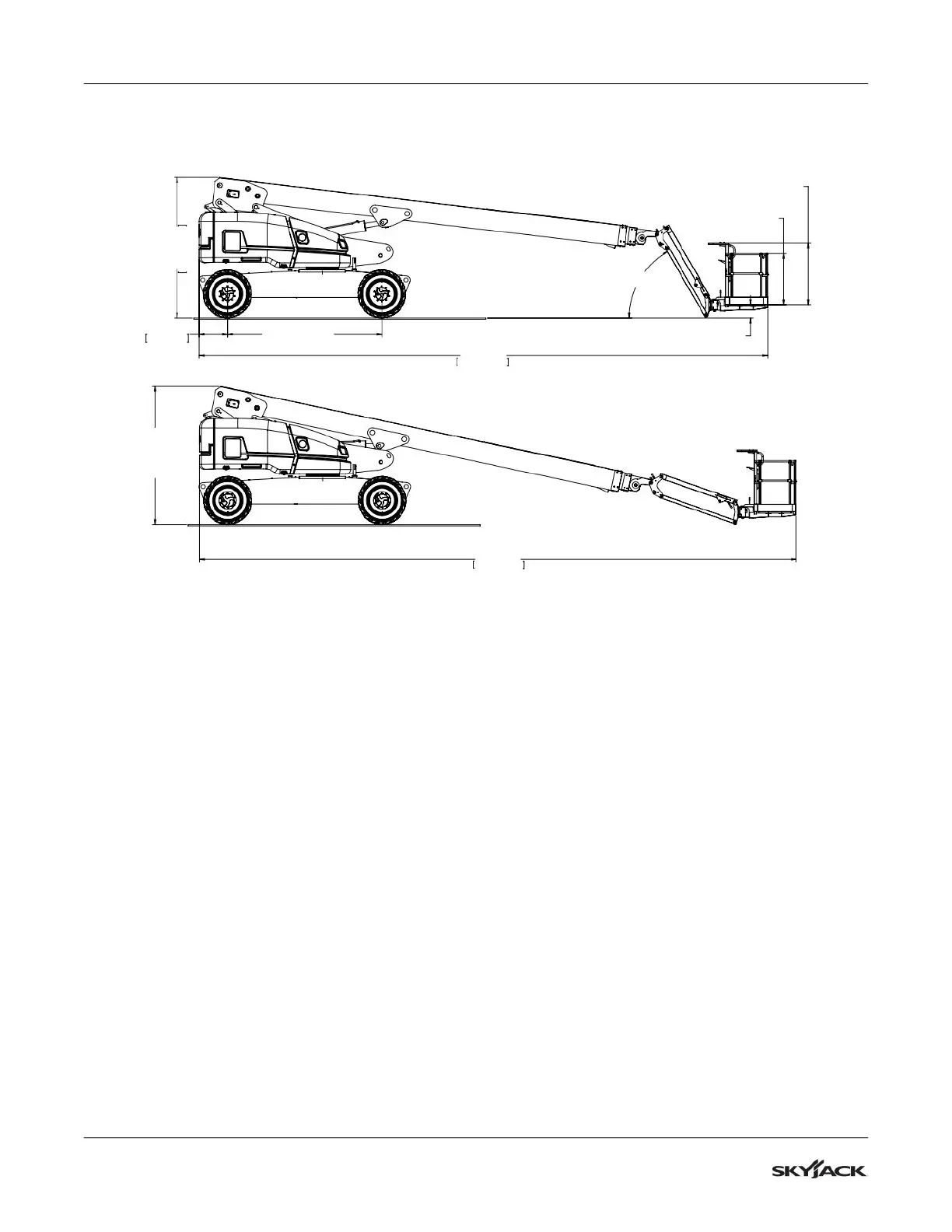

Section 7 – T
echnical Diagrams and Specications
T
echnical diagrams
T
ec
hnica
l dia
grams
cont
inued
132 in. (335.3 cm)
24.03 in.
610.5 mm
60 degrees
11 in. (27.94 cm)
53 in. (134.62 cm)
44 in. (111.76 cm)
485.98 in.
12343.9 mm
120.03 in.
3048.8 mm
118 in. (3 m)
510.01 in.
12954.4 mm
Figure
12
Dim
ensions
continue
d - SJ86
T
79
81
Table of Contents
Default Chapter
5
Table of Contents
5
Section 1 - about this Mobile Elevating Work Platform (MEWP)
9
Read and Heed
9
Mobile Elevating Work Platform (MEWP) Definition
9
Purpose of Equipment
9
Use of Equipment
9
Operation Manual
9
Operator
9
Service Policy and Warranty
9
Ownership of MEWP
9
Optional Equipment
9
Scope of this Manual
10
Primary Assemblies
11
Serial Number Nameplate
12
Maintenance Responsibility
13
Operator
13
Maintenance and Inspection Schedule
13
Owner
13
Section 2 - General Safety Precautions
15
Electrocution Hazards
15
Minimum Distance from Electrical Conductors
15
Safety Instructions
16
Fall-Protection
19
Worksite Inspection
19
Section 3 - Familiarization
21
Overview of the MEWP
22
Manual Storage Box
23
Control Functions
23
Main Power Disconnect Switch
23
Footswitch
23
Base Control Console
24
Platform Control Console
26
Features and Devices
29
Drive Speed
29
Drive Direction
29
Tilt Switch
29
Platform Load Sensing System
29
Overload Status
30
Brake-Release System
31
Secondary Guarding Electrical (SGE)
31
Drive-Bypass Valve
32
AC Power Socket on the Platform
32
10 Motion Alarm
32
11 Differential Lock Switch
32
12 Turret Transportation Lock
32
Optional Equipment and Attachments
33
Flashing Amber Light
33
Welder
33
Cold or Arctic Weather Package
34
Tool Tray
34
Glazier
34
Pipe Rack
35
Elevate™ Telematics - Access Control Unit
35
Section 4 - Inspections before Operation
37
Operator's Responsibility
37
Visual and Daily Maintenance Inspections
38
Labels
38
Electrical
38
Limit Switches
38
Hydraulic
38
Engine Compartment
39
Control Compartment
41
Base
43
Platform Assembly
45
Boom Assembly
46
10 Optional Equipment and Attachments
48
Function Tests
49
Do a Test of the Main Power Disconnect Switch
49
Do a Test of the Base Keyswitch and the Emergency-Stop Button and Light
49
Functions
50
Do a Test of the Platform Self-Leveling
50
Do a Test of the Platform Capacity Zone Indicator Lights
50
Do a Test of the Emergency Power Unit
51
Do a Test of the Off/Base/Platform Switch
51
Do a Test of the Positive Air Shut-Off Switch (Optional Equipment)
52
Do a Test of the Emergency-Stop Button and Emergency-Stop Light on the Platform
53
10 Do a Test of the Load Sensing Module Self-Check
53
11 Do a Test of the Footswitch and All the Boom and Platform Functions
54
12 Do a Test of the Platform Capacity Zone Indicator Lights
54
13 Do a Test of the Wire Ropes
54
14 Do a Test of the Secondary Guarding Electrical (SGE)
55
15 Do a Test of the Engine Start/On/Off Switch
56
16 Do a Test of the Emergency Power Unit
56
17 Do a Test of the Manual Platform-Leveling
56
18 Do a Test of the Steer Function
57
19 Do a Test of the Drive Function
57
20 Do a Test of the Brakes
57
21 Do a Test of the Horn
57
22 Do a Test of the Elevated Travel Speed
58
23 Do a Test of the Differential Lock
58
24 Do a Test of the Oscillating Cylinders
59
Operator's Checklist
60
Section 5 - Operation
62
Energize the Base Control Console
62
Rotate the Platform with the Base Control Console
63
Rotate the Turret with the Base Control Console
63
Move the Jib up and down with the Base Control Console (Optional Equipment)
63
Raise or Lower the Main Boom with the Base Control Console
63
Extend or Retract the Boom with the Base Control Console
63
Make the Platform Level with the Base Control Console
64
Operate with the Emergency Power Switch at the Base Control Console
64
Energize the Platform Control Console
64
Drive Forward or Rearward
65
Steer
65
Move the Jib up and down with the Platform Control Console
65
Extend or Retract the Boom with the Platform Control Console
65
Make the Platform Level with the Platform Control Console
65
Rotate the Platform with the Platform Control Console
65
Raise or Lower the Main Boom with the Platform Control Console
66
Operate the Horn
66
Rotate the Turret with the Platform Control Console
66
Operate with the Emergency Power Switch at the Platform Control Console
66
Engage or Disengage the Differential Lock Switch
66
MEWP Shutdown
66
Generator (Optional Equipment)
67
Glazier Tray (Optional Equipment)
67
Cold or Arctic Weather Package (Optional Equipment)
68
Section 6 - Additional Procedures
69
Use the Emergency-Lowering Function
69
At the Base Control Console
69
At the Platform Control Console
69
Chassis Tilt Recovery
70
Platform Uphill
70
Platform Downhill
70
Release the Brakes Manually
71
Winch and Tow the MEWP
72
Refuel
73
Refuel the MEWP
73
Move the MEWP for Transport
74
Lock the Turret
74
Hoist the MEWP
75
Tie down the MEWP
76
Section 7 - Technical Diagrams and Specifications
77
Technical Diagrams
78
Standard and Optional Equipment
82
Owner's Annual Inspection Record
83
Specifications
84
Environment
85
Tire/Wheel Specifications
85
Maximum Platform Capacities (Evenly Distributed)
86
Floor Loading Pressure
86
Section 8 - Labels
87
Engine Side
88
Engine Compartment
91
Front Side
93
Control Side
94
Control Compartment
98
Rear Side
101
Platform
102
Platform Control Console
108
Section 9 - Unique Skyjack Features
111
