SJ82 T, SJ86 T 213205AAA
81
Technical diagrams Section 7 – Technical Diagrams and Specications
Technical diagrams continued

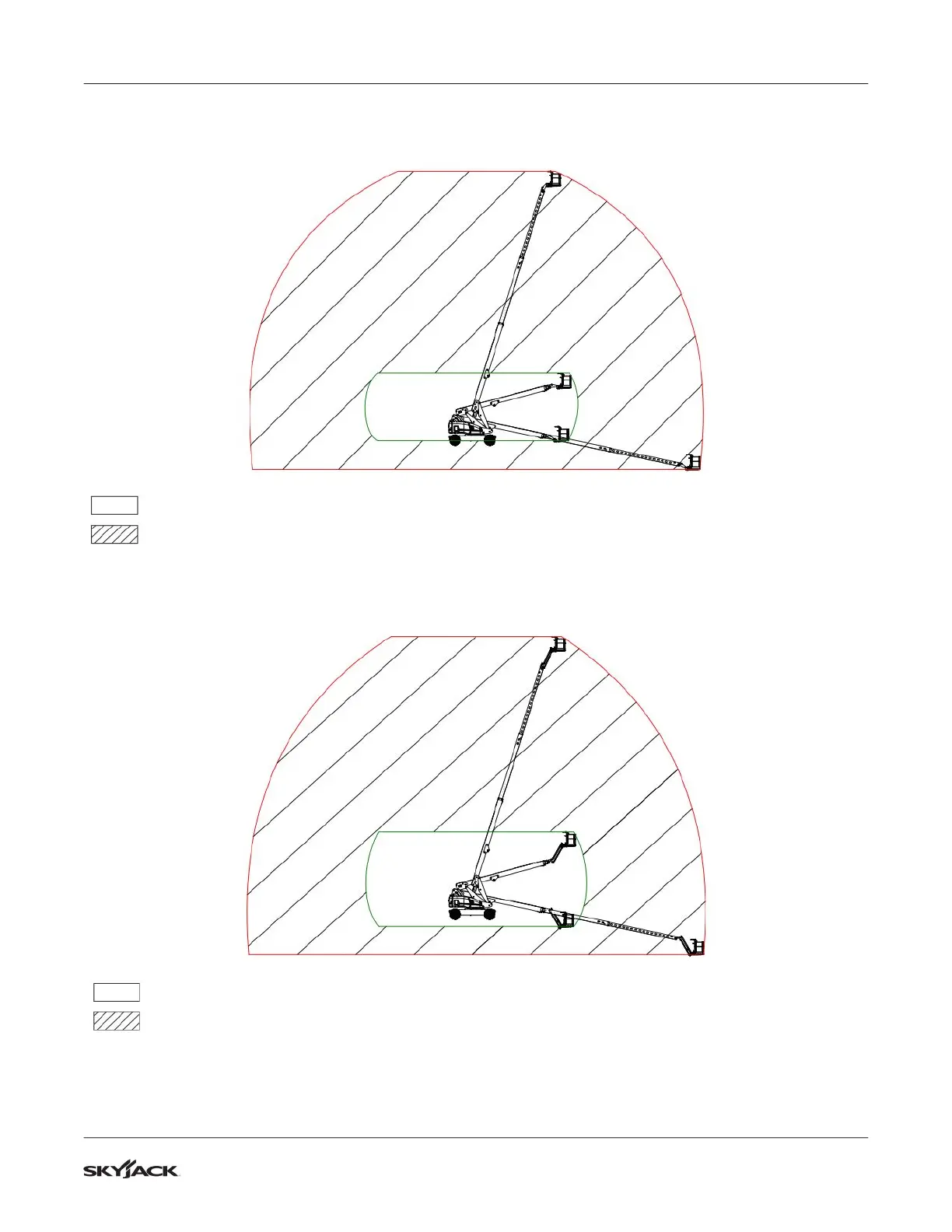

Steer axle oscillation - free (lowered travel position): drive speed 4.8 km/h (3.0 mph) max.
Steer axle oscillation - locked (elevated travel position): drive speed 0.8 km/h (0.5 mph) max.
Figure 13 Axle oscillation - SJ82 T
Steer axle oscillation - free (lowered travel position): drive speed 4.8 km/h (3.0 mph) max.
Steer axle oscillation - locked (elevated travel position): drive speed 0.8 km/h (0.5 mph) max.
Figure 14 Axle oscillation - SJ86 T
