Control Functions Section 3 – Familiarization
A. Water In Fuel Light - This light indicates
water separator is full. Open drain to release
water. Engine damage could occur if ignored
for excessive length of time.
B. Engine Oil Pressure - This light indicates low
engine oil pressure.
C. Engine Coolant Temperature/Level - This
light indicates overheating of engine coolant
and low level of engine coolant.
D. Engine - This light indicates failure in engine
control system.
E. Fuel - This light indicates low fuel level.
F. Glow Plug (Diesel) - This light illuminates
until glow plugs have completed their timed
cycle. When the lamp goes out, the engine is
ready to be started.
7
12
Off/Base/Platform Key Switch - This three-way
selector switch allows operator to turn off
power to MEWP or to activate either base
or platform control console.
7
13
Start/Function Enable/Emergency Power
Switch - This momentary switch, when held in
start position, starts engine. When held in
function enable position, allows base control
functions to operate. Engine speed increases
when selected. With engine off, and when
held in emergency power unit position,
allows base control functions to operate using
emergency power unit.
WARNING
Do not operate boom functions if platform capacity
is exceeded.
7
14
Low Capacity Zone Indicator Light - Indicates
MEWP is in “low” platform capacity zone. Refer
to Section 7.7.
7
15
High Capacity Zone Indicator Light - Indicates
MEWP is in “high” platform capacity zone. Refer
to Section 7.7.
7
16
Capacity Zone Border Light - Indicates MEWP
is at limits of travel for high capacity zone.
Lower and extend functions are not
available..
7
17
Overload Light - This red light indicates overload
status. Refer to Section 3.4-6.
TM
!
HOUR METER
QUARTZ
1 2
3
4
5
6
7
8
9101112
17
16
15
14
13

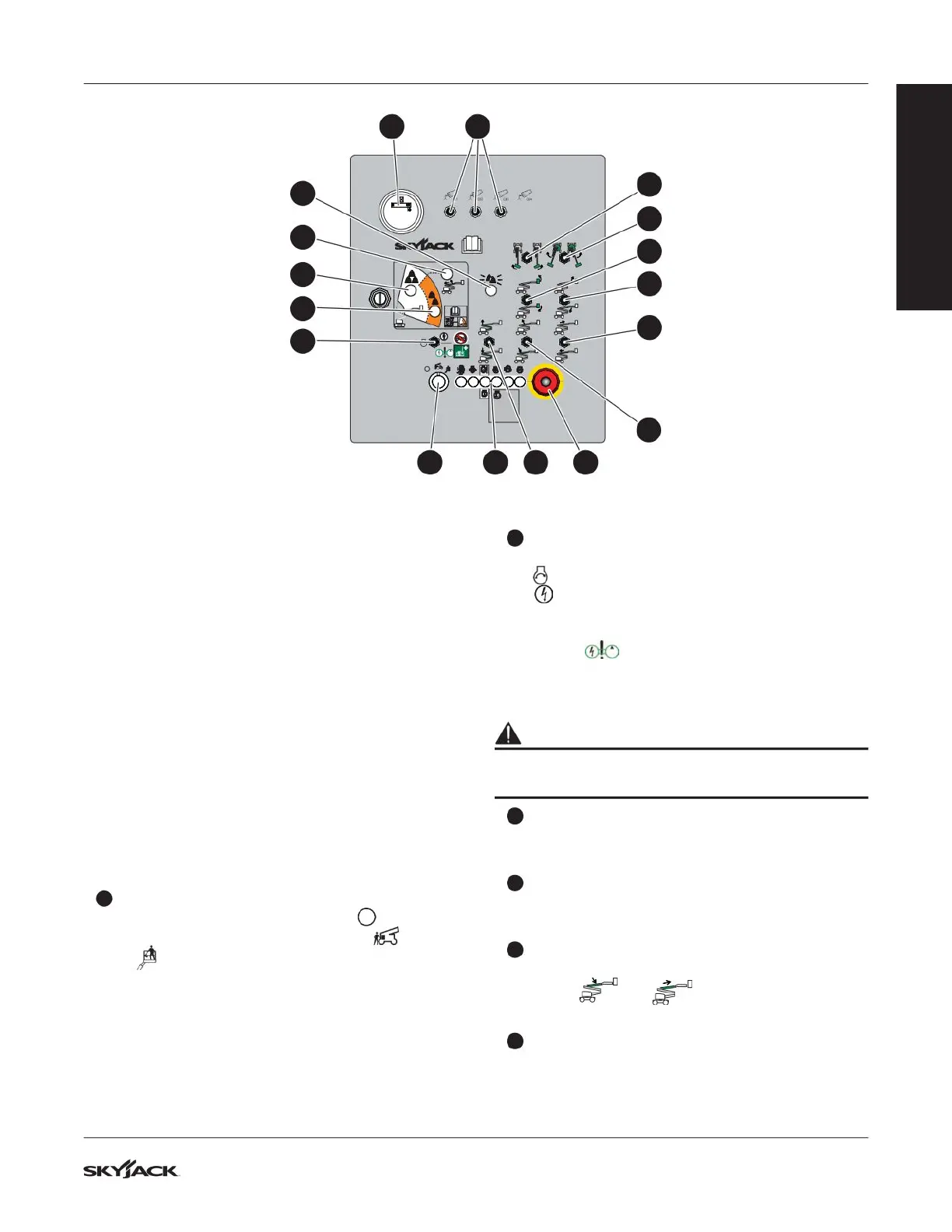

Figure 07 Base Control Console
