Skyjack SJ85AJ - Locally Concentrated Pressure (LCP); Overall Uniform Pressure (OUP)

SJ85AJ 208932AEA
77
Floor Loading Pressure Section 7 – Technical Diagrams & Specications
Base Width
Base Length
Foot Print Area
LCP = OUP =
Wheel Load Weight of MEWP + Capacity
Foot Print Area Base Area

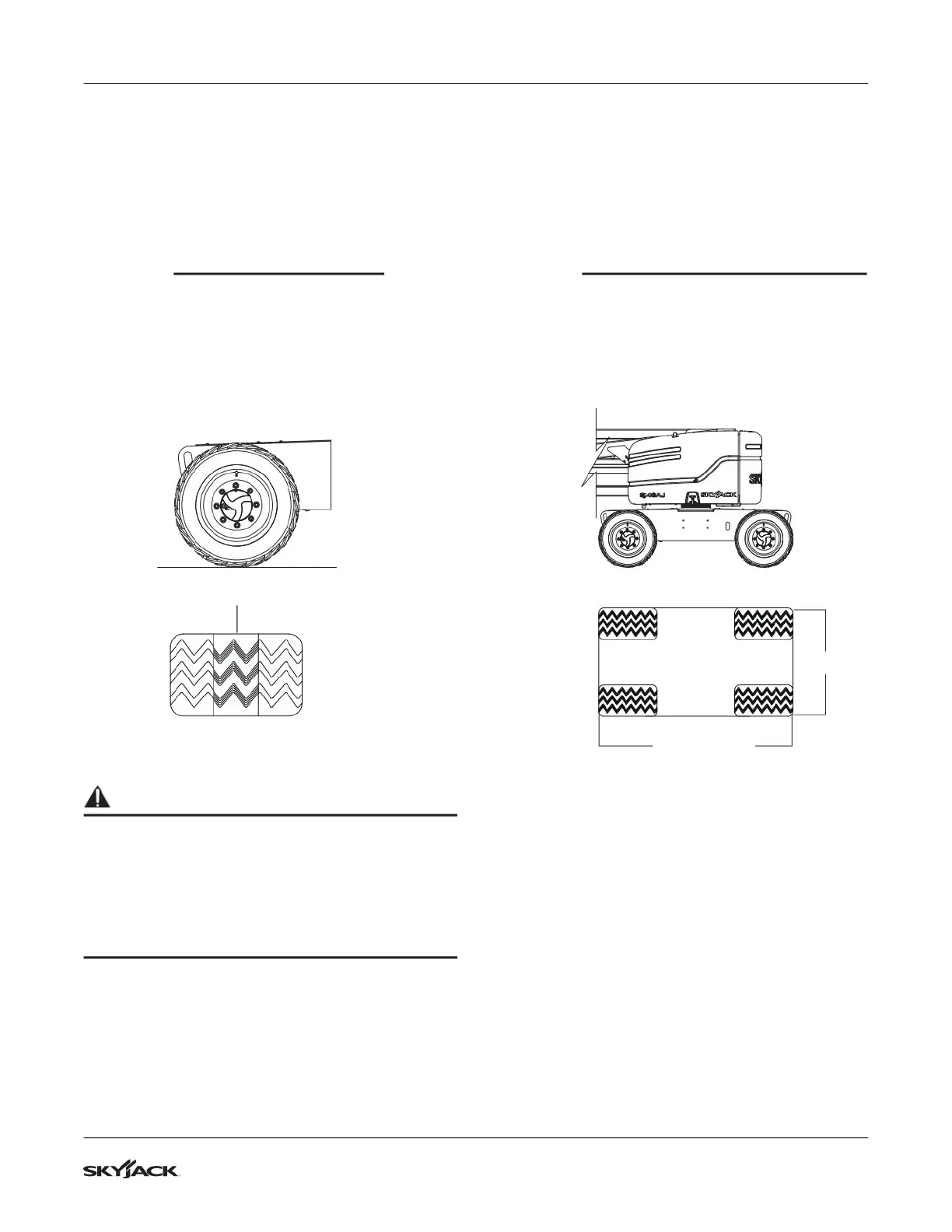

7.8-1 Locally Concentrated Pressure
(LCP)
Foot Print Area identied by test.
7.8-2 Overall Uniform Pressure (OUP)
Base Area = Length x Width
WARNING
Do not use tires other than those specied for this
machine. Do not mix different types of tires. Tires
other than those specied can adversely affect
stability. Failure to operate with matched, approved
tires in good condition can result in death or
serious injury. Replace tires with the exact,
Skyjack-approved types only.
