Features and Devices Section 3 – Familiarization
3.4 Features and Devices
Available MEWP functions depend upon a
combination of machine conguration (lowered travel
position/elevated travel position), chassis tilt, platform
load, and boom positioning (high/low capacity).

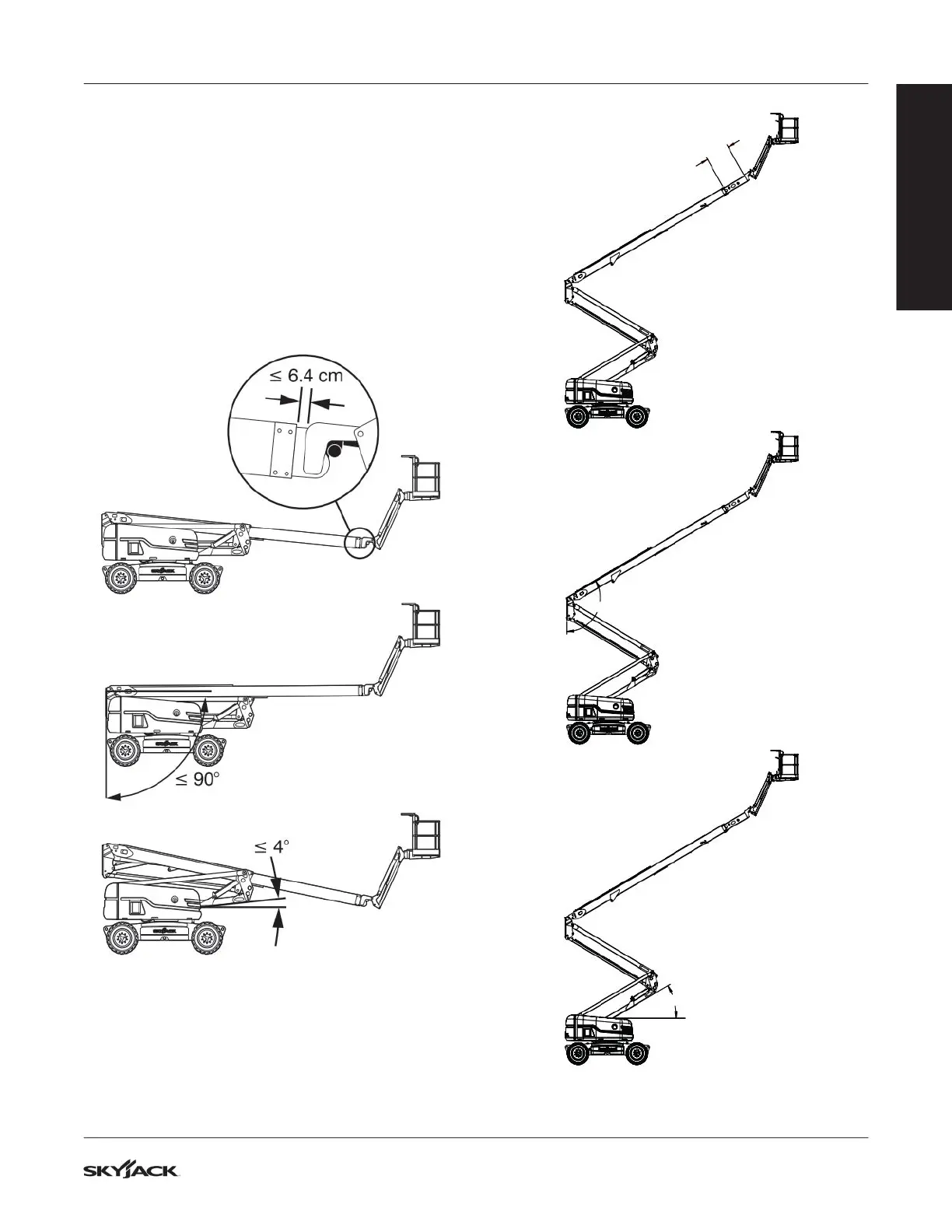

The MEWP is in the lowered travel position if it is in
ALL of the positions shown in Figure 09.
The MEWP is in the elevated travel position if it is in
ANY of the positions shown in Figure 10.
≤ 6.4 cm
≤ 90°
≤ 4°
Figure 09 Lowered Travel Position
(>
6.4
cm)
> 90°
> 4°
Figure 10 Elevated Travel Position (any of the boom
positions shown)
