Skyjack SJ85AJ User Manual

SJ85AJ 208932AEA
29
Features and Devices Section 3 – Familiarization
WARNING
Movement into Low Capacity Zone is restricted
if platform capacity exceeds Low Capacity Zone
platform capacity. Refer to Section 3.4-6: Overload
Status.
WARNING
If the platform load sensing system is in fault mode
(capacity zone lights ash alternately, overload
light ashes and capacity zone border light
illuminates), do the following:
▪
Ensure platform is level and there are no
obstructions contacting the platform.
If the platform load sensing system remains in
fault mode, the emergency power unit may be
used to lower the platform. Contact a qualied/
competent person for repairs.
High
Capacity
Zone
Low Capacity
Zone
Border between
High and Low
Capacity Zones
3.7 m
11.7 m
47°

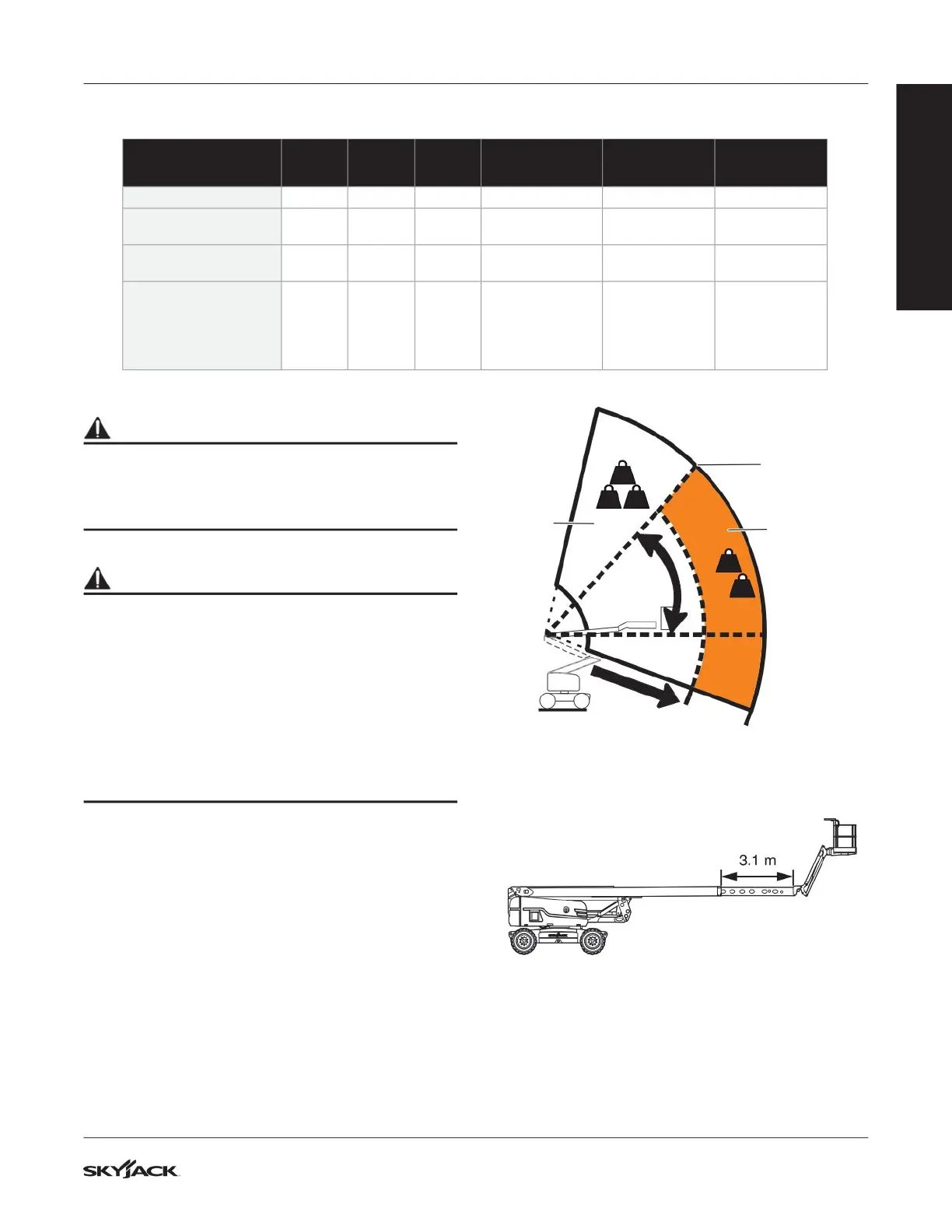

Figure 11 High and Low Capacity Zones
3.1 m
Figure 12 Fly Boom Extension into Low Capacity Zone
3.4-6 Overload Status
Mode/Condition
Indicator
Light
Audible
Alarm
Drive
Functions
Powered Boom
Functions (Platform
or Base)
Emergency Power
(Platform)
Emergency Power
(Base)
93-99% of platform capacity On Off Enabled Enabled Enabled Enabled
Lowered Travel Position, ≥
100% of platform capacity
Flashing Pulsing Enabled Enabled Enabled Enabled
Elevated Travel Position, ≥
100% of platform capacity
Flashing Pulsing Disabled Disabled Enabled Enabled
Elevated Travel Position, ≥
100% of platform capacity
for Low Capacity Zone,
Boom extended or lowered
to Border between High and
Low Capacity Zones
Flashing Off Disabled
Boom raise and
Boom retract only
Enabled Enabled
1256AA
FAMILIARIZATION
