Skyjack SJ85AJ User Manual

SJ85AJ 208932AEA
25
Control Functions Section 3 – Familiarization
7
Emergency Power Unit - This switch
enables emergency power unit when engine is
off.
7
8
Torque Switch - This switch selects low
or high torque. Select low torque
(higher speed) or high torque (lower
speed). Select high torque when driving
on a slope.
7
9
Low/High Throttle Switch - This switch allows
selection between low and high engine
throttle speeds.
7
10
Drive/Steer Controller - This single-axis lever
controls driving forward or backward. The
rocker switch controls steering left or
right. Internal springs return it to neutral
when released.
7
11
Differential Lock Switch - This momentary
switch, when pushed forward and then released,
engages differential lock and turns
differential light on. When pulled backward and
then released, disengages differential lock
and turns differential light off.
7
12
Jib Up/Down Switch - This switch controls
up or down movement of jib.
7
13
Fly Boom Extend/Retract Switch - This switch
controls extension or retraction of y
boom.
7
14
Riser Raise/Lower Controller - This single-axis
lever controls raising or lowering of
riser.
7
15
Capacity Zone Border Light - Indicates MEWP
is at limits of travel for high capacity zone.
Lower and extend functions are not
available.
7
16
Platform Leveling Override Switch - This switch
overrides automatic leveling of platform and
controls tilting up or tilting down of
platform.
7
17
Low Capacity Zone Indicator Light - Indicates
MEWP is in “low” platform capacity zone. Refer
to Section 7.7.
7
18
High Capacity Zone Indicator Light - Indicates
MEWP is in “high” platform capacity zone. Refer
to Section 7.7.
7
19
Platform Rotation Switch - This switch controls
left or right rotation of platform.
TM
1
2

+
1 2 3 4 5 6 7 8 9
101112131415161718192021

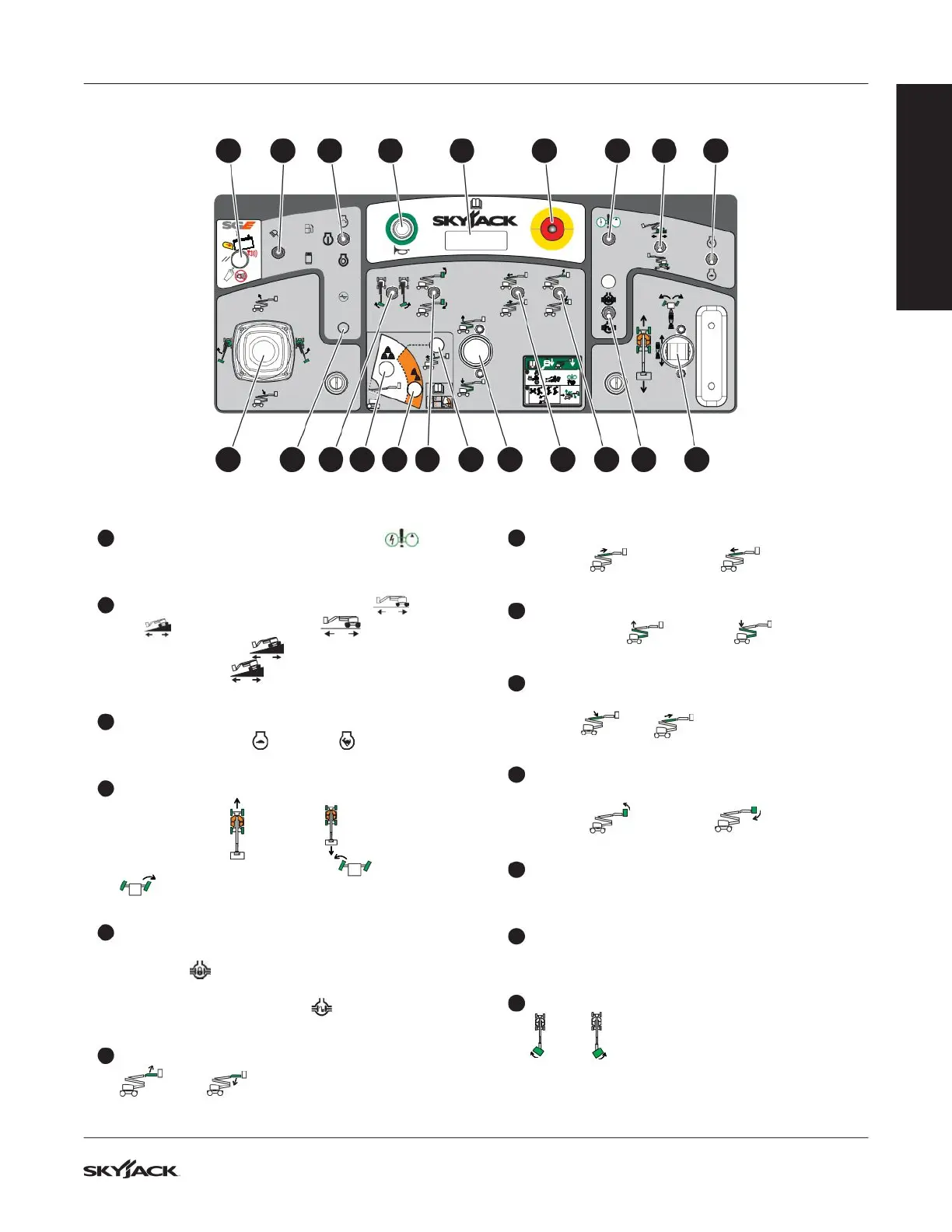

Figure 08 Platform Control Console
FAMILIARIZATION
