Figure 11.2. Zoom View Crystal Shield Layer, Below the Top Layer (Layer 2)

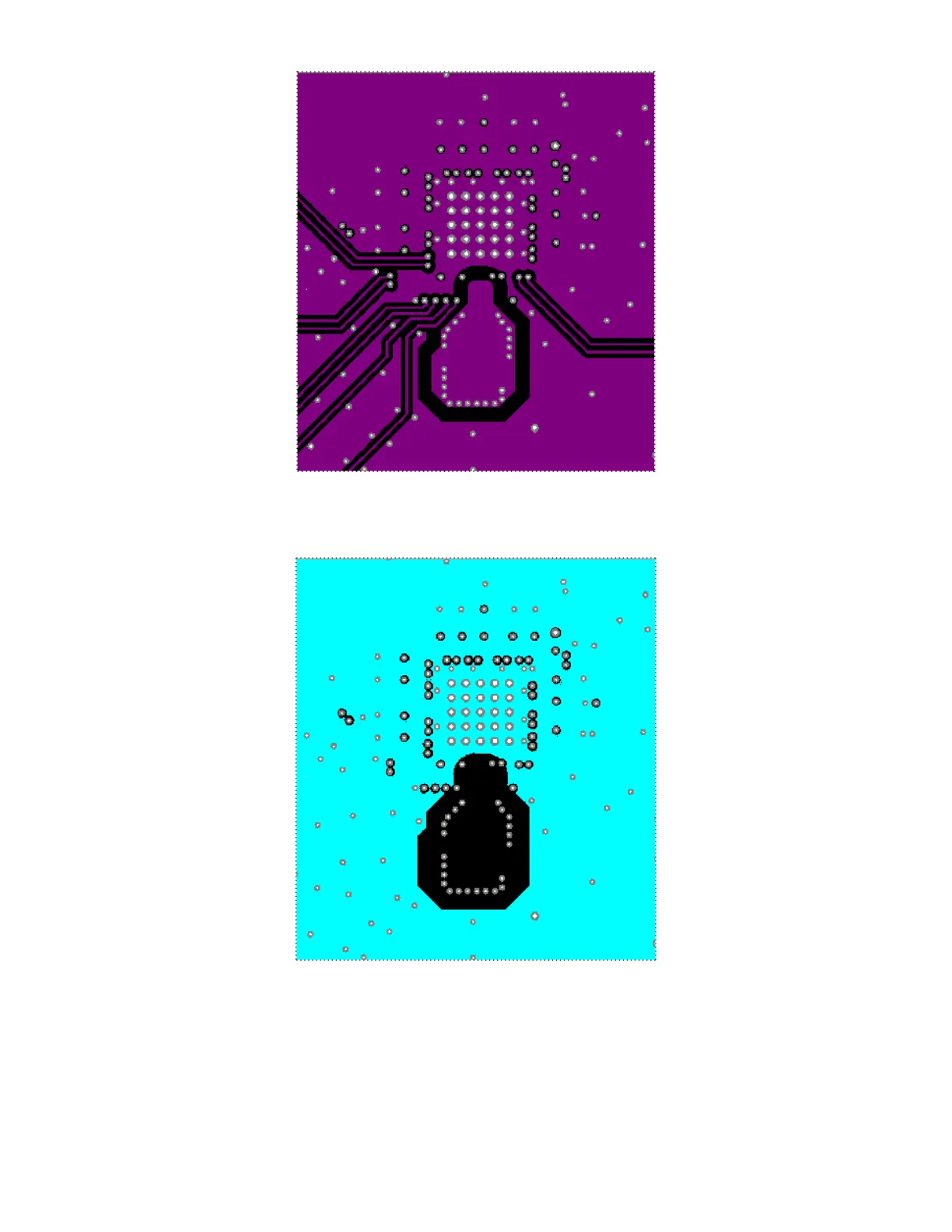

The following figure of the ground plane shows a void underneath the crystal shield.
Figure 11.3. Crystal Ground Plane (Layer 3)
The figure below is a power plane and shows the clock output power supply traces. The void underneath the crystal shield is continued.
Si5341, Si5340 Rev D Family Reference Manual • Crystal and Device Circuit Layout Recommendations
