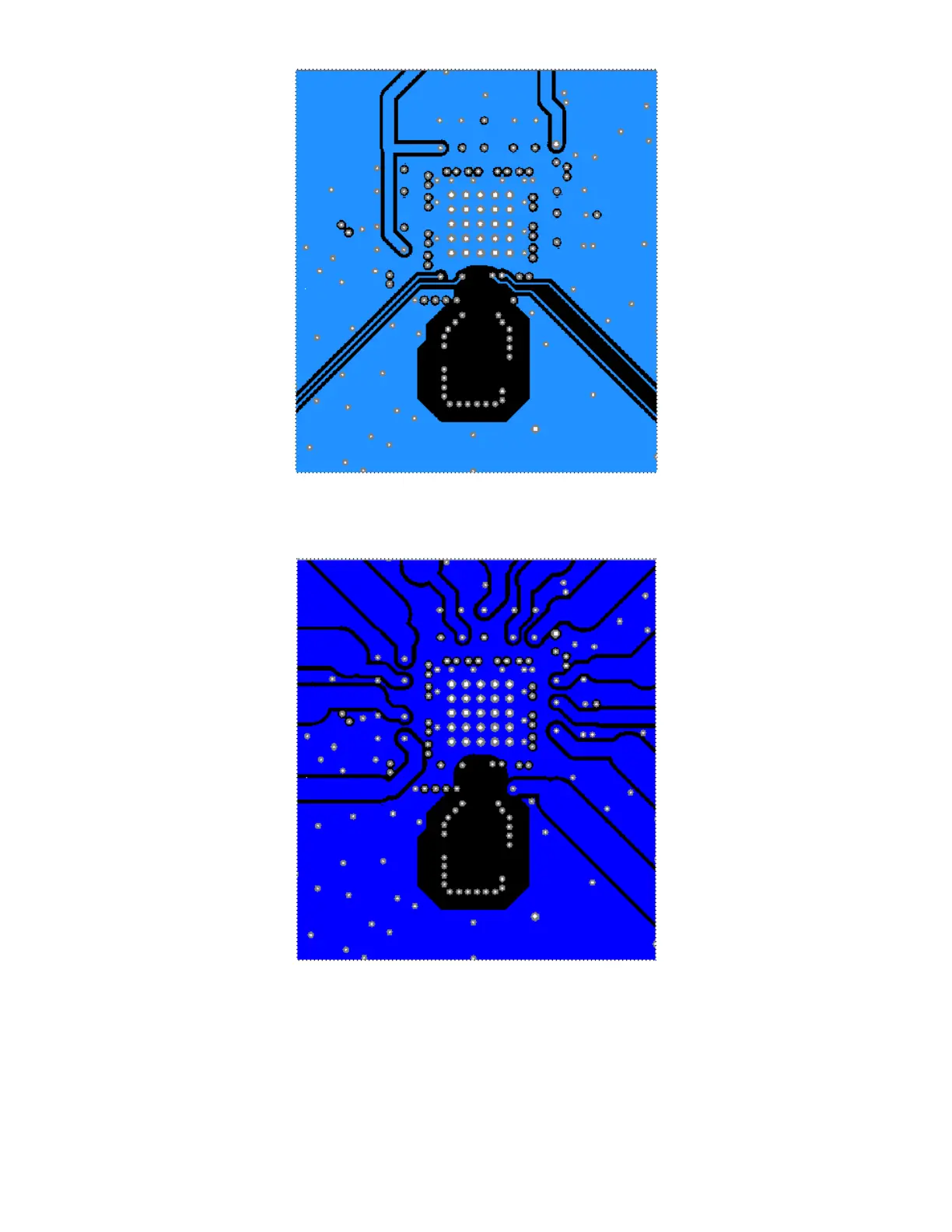

Figure 11.4. Power Plane (Layer 4)
The following figure shows Layer 5, which is the power plane with the power routed to the clock output power pins.
Figure 11.5. Layer 5 Power Routing on Power Plane (Layer 5)
The following figure is another ground plane similar to Layer 3.
