Slayer Professional Series - Brew Tank Assembly

39
SLAYER STEAM X USER MANUAL
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 10000-16051 BREW CAP 1
2
42000-34300 BLEED SCREW PLUG 2
3
44000-56000 BAYONET BOLT 3
4
44000-36130 SCREW/WASHER POWER SUPPLY 2
5
30000-20040 MAGNETIC SWITCH N/O 2
6
44000-56000 BAYONET BOLT 3
7
42000-34560 1/4 COMP 90 DEG 2
8
15005-16060
TANK 1
9
46000-50070 58 MM SHOWER SCREEN 1
10
46000-50080 DIFFUSER SCREW 1
11
46000-56090 PORTAFILTER GASKET 1
12
20000-56010 BAYONET RING 1
13
46000-50100 GROUP CAP PAPER GASKET 1
14
30000-20140 ELEMENT GASKET 1
15
30000-20130 600 WATT BREW TANK ELEMENT 1
16
44000-36070 3/8 LOCK WASHER 4
17
44000-36080 3/8-16 NUT 4
18
30000-20250 100 DEG C THERMOSTAT 1
19
30000-20151 3 WAY SOLENOID VALVE
1
20
44000-36310 MOUNT SCREW 2
21
46000-50090 GROUP CAP O RING 1
22
10000-16061 .7MM GIGGLEUR 1
23
44000-36000 INVERTED MAG SWITCH SPACER 2
24
44000-36140 SCREW/WASHER FOR INVERTED MAGNET 2
25
30005-20080
3K3 NTC
1

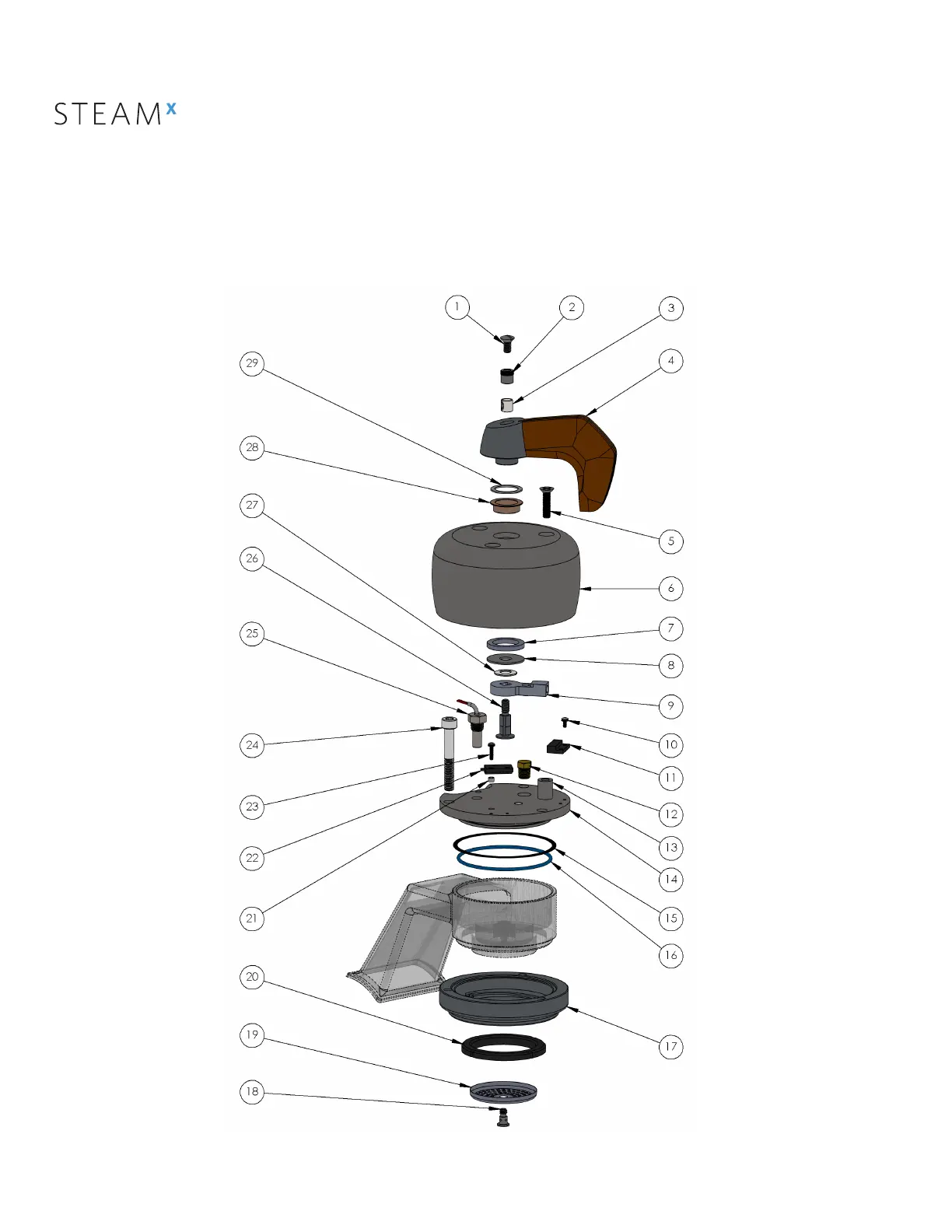

Brew Tank Assembly
2423 25 1 2
3
22
4
5
6
7
8
910111214
15
16
17
18
19
13
20
21
