SLAYER STEAM X USER MANUAL

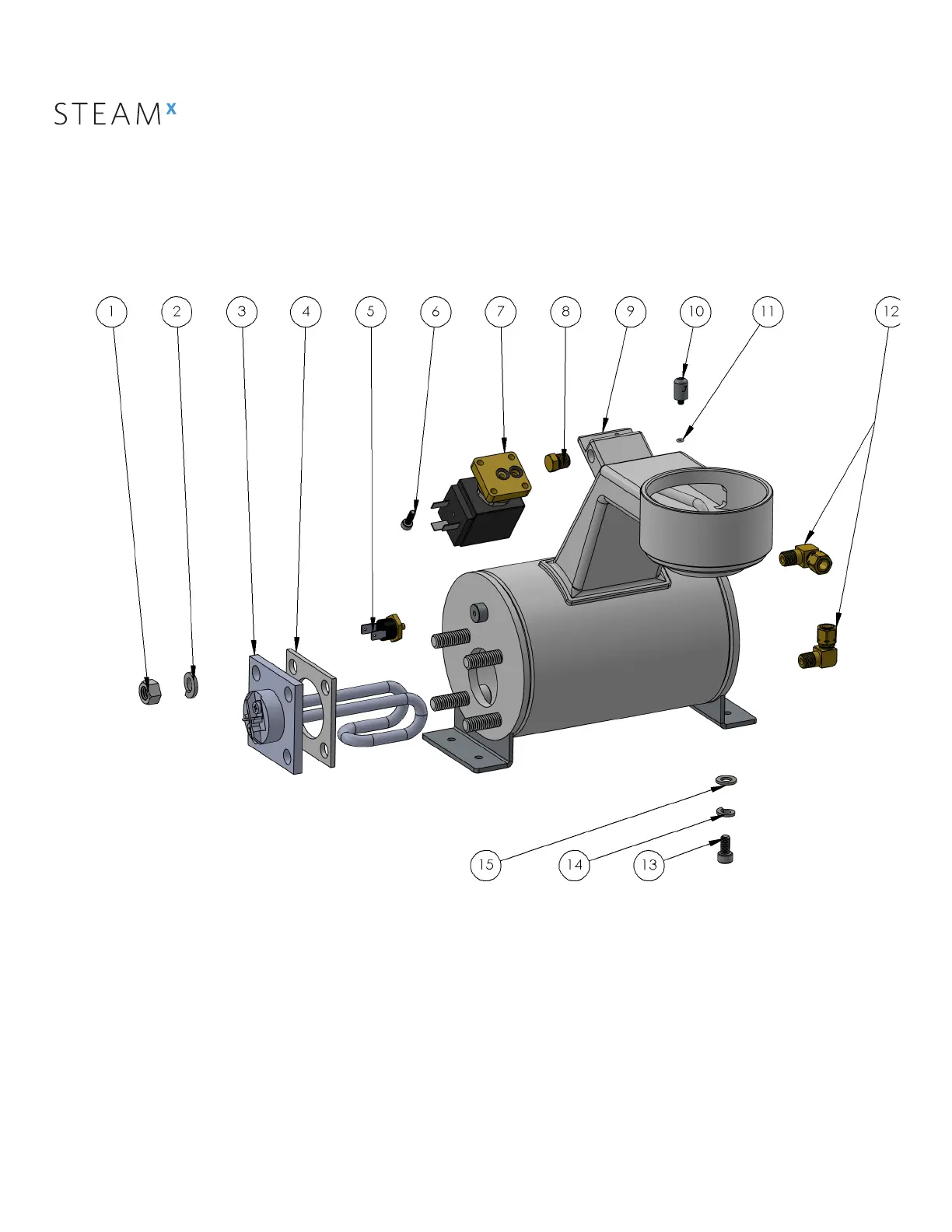

Steam Tank Assembly
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
15005-13110
TANK BODY, 3 GROUP, STEAM
1
2
42000-34560
1/4 COMP 90 DEG
3
3
42000-34680
STEAM LINE ELBOW
2
4
30000-20260
145 DEG C THERMOSTAT
1
5
30000-20140
ELEMENT GASKET
1
6
30000-20100
STEAM ELEMENT, 220V, 4500W, 3 GROUP
1
7
44000-36080
3/8-16 NUT
4
8
30000-50170
WATER LEVEL PROBE
1
9
46000-50150
COPPER GASKET 1/4 NPT
1
10
44000-36070
3/8 LOCK WASHER
4
11
42000-34702
WATER OUT FITTING
1
12
42000-34500
1/8 NPT X 1/4 COPPER COMP.
1
13
42000-34580
1/8 NPT PIPE TEE M-F-F
1
14
30000-20191
2 WAY SOLENOID
1
15
10999-20191
SOLENOID MOUNT
1
16
46000-50290
1/8 BALL VALVE
1
17
42000-34110
1/8 NPT 90 DEG ELBOW M-F
1
18
42000-34180
1/8 NPT HEX NIPPLE
2
32
4
5
6
7
10
1
9
8
17 18
13
16215
14
12
11
99005-13110
WWW.SLAYERESPRESSO.COM
To Next Page
