Slayer Professional Series - Steam Actuator Assembly

47
SLAYER STEAM X USER MANUAL

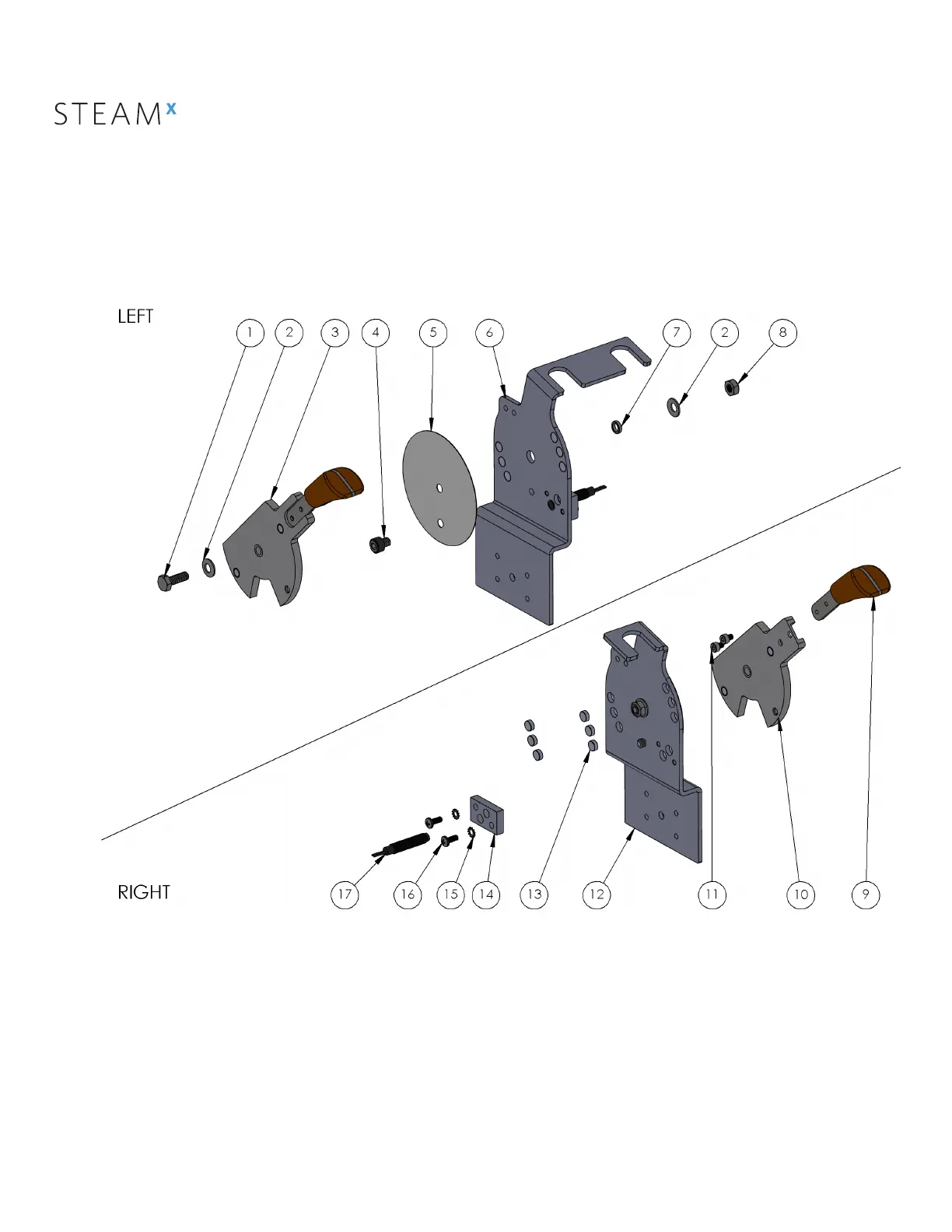

Steam Actuator Assembly
99005-10003
WWW.SLAYERESPRESSO.COM
206-284-7171
NAME
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 99005-30036
STEAM ACTUATOR HANDLE
1
1
2
10005-10003
10005-10004
RIGHT ACTUATOR BODY
LEFT ACTUATOR BODY
3 44000-36310
MOUNT SCREW
2
4
46003-50062
3/16 MAGNET
1
5
46000-10000
PLASTIC BUSHING
1
6
46003-50060
1/4 MAGNET
2
3
4
5
6
2
1
