ADJUST HOT WATER DOSE
Slayer Steam utilizes a timer to dispense pre-configured volumes of hot
water. Adjust the hot water dose with the following steps.
PROCEDURE
1. Press and release the jog wheel above the left group head to activate
the main menu.
2. Rotate the jog wheel clockwise until the “Hot Water Dose” setting
appears.
3. Press and release the jog wheel to enter the “Hot Water Dose” setting.
The “on” button, found directly next to the hot water tap, will begin to
flash.
4. Rotate the jog wheel to adjust the hot water dose in tenth-second
(0.1-second) increments: clockwise rotations increase the hot water
dose; counter-clockwise rotations decrease the hot water dose.
5. Press and release the jog wheel to confirm your new setting and return
to the menu, or press and hold the jog wheel to confirm your new
setting and exit the menu.
Alternatively, after completing steps 1-3, you may skip to the
“Alternative Procedure”, below.
ALTERNATIVE PROCEDURE
1. Complete “Adjust Hot Water Dose” steps 1-3, above.
2. Press and release the “on” button to dispense hot water. The Barista
Dashboard will begin a timer to display and record the duration of the
dose.
3. Press and release the “on” button again to stop the flow of hot water.
The duration of the dose will be recorded.
4. The hot water dose may not exceed 20 seconds.
5. Press and release the jog wheel to confirm your new setting and return
to the menu, or press and hold the jog wheel to confirm your new
setting and exit the menu.
ADJUST HOT WATER
TEMPERATURE
Slayer Steam features a blending valve that draws water from the steam
tank and main cold water line simultaneously. Custom water temperatures
are configured with the blending valve. Adjust the hot water temperature
with the following steps.
REQUIRED TOOLS
• Flat Blade Screwdriver
PROCEDURE
1. Remove the cups and tray. You will NOT need to remove the back or
side panels to make this adjustment.

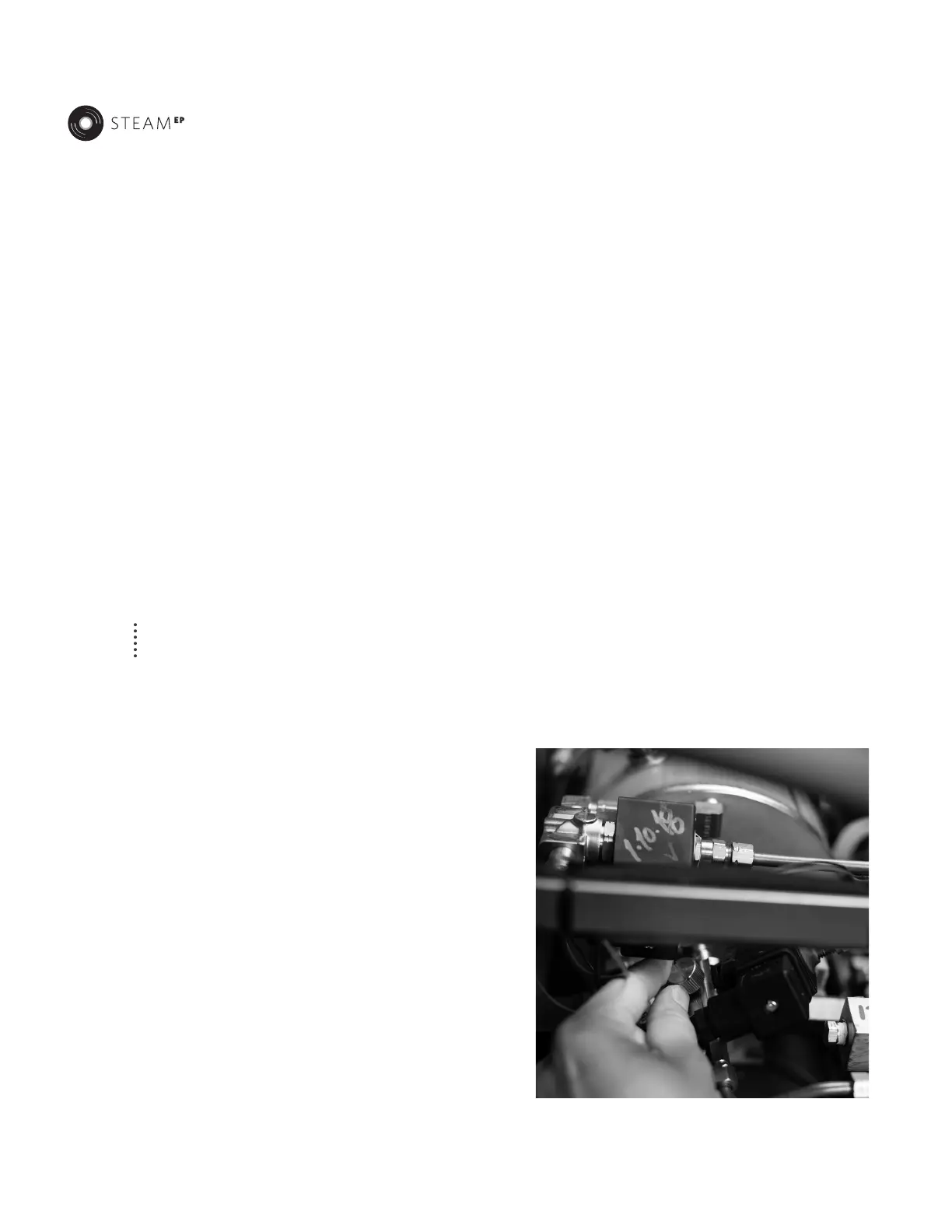

2. Locate the blending valve between the Vaporizer and the Proportional
valve.
3. Adjust the hot water temperature from the rear right side of the
machine (guest expereince side): clockwise rotations increase the
hot water temperature; counter-clockwise rotations decrease the hot
water temperature.
4. Verify the temperature at the hot water tap with a digital
thermometer.
