Slayer STEAM EP - Electronics Components

SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 67

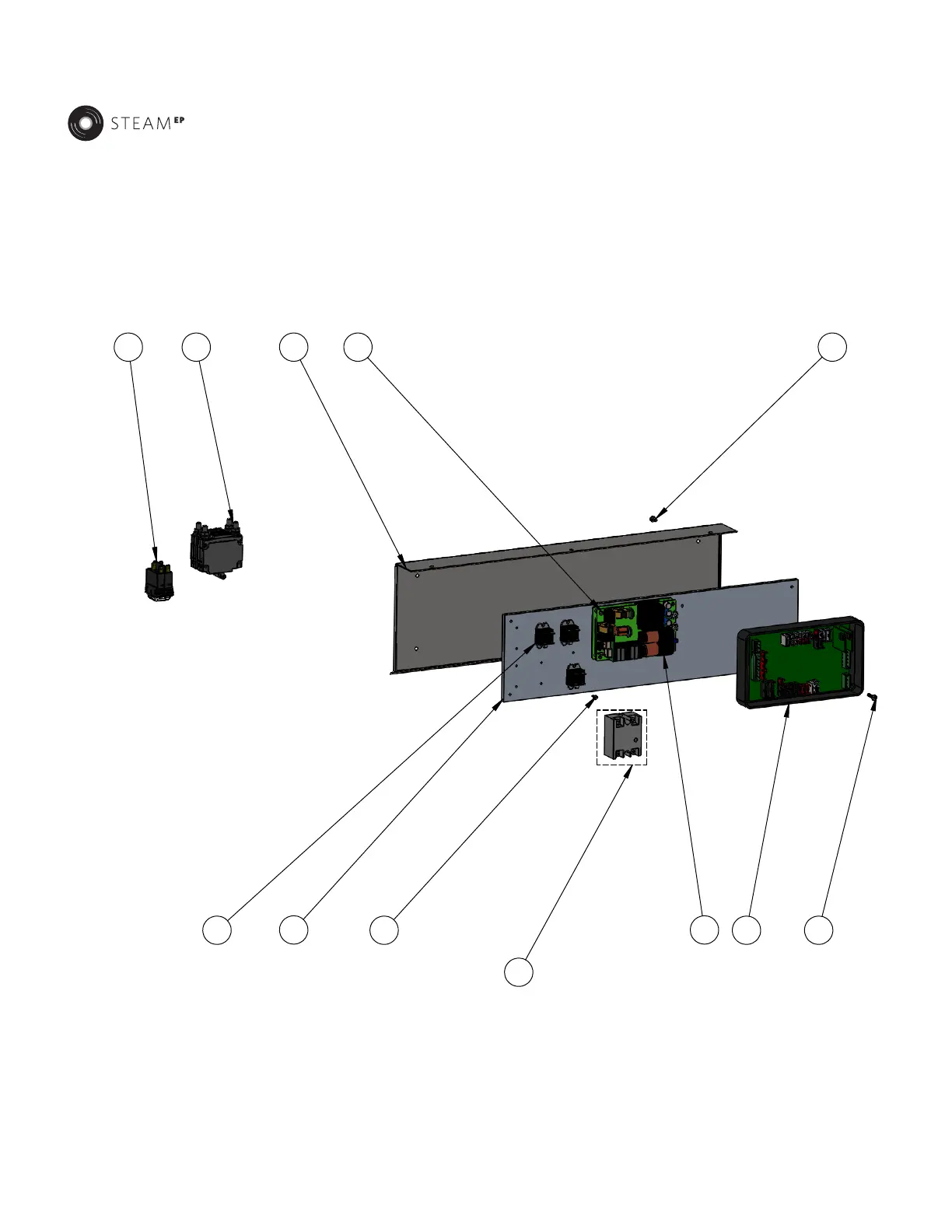

ELECTRONICS COMPONENTS
7 611 9
4
8
10
5
12
1 2 3
2 GROUP MACHINES ONLY
3 GROUP MACHINES ONLY
BREW TANKS AND 2 GROUP STEAM TANK
3 GROUP STEAM TANK
ITEM NO. PART NUMBER DESCRIPTION
1 30005-20270 2 POLE ROCKER BREAKER SWITCH
2
30000-20230 BREAKER,30A,2POLES
30000-20240 BREAKER, 40A, 2 POLES
3
13005-20027 ELECTRICAL SHIELD ASSEMBLY, STEAM, 2 GROUP
13005-30027 ELECTRICAL SHIELD, ASSEMBLY, STEAM, 3 GROUP
4 44004-36140 SCREW, PAN HEAD PHILLIPS, M3 SIZE, 20mm LENGTH, .5mm PITCH, STAINLESS
5 44005-10130 PHMS,M4-0.7X8MM,PHILLIPS,18-8 SS
6 44005-10370 SCREW,M4-0.7X16.0,PHMS,PHILLIPS,18-8
7 30005-10080 MAIN BRAIN, SLAYER STEAM
8 30000-20003 POWER SUPPLY, COSEL, 500 WATT
9 44005-10390 SCREW,M3-0.5X8.0,PHMS,PHILLIPS,18-8
10 10005-20005 SUB PLATE, STEAM
11 30000-20011 MINI 20 AMP SSR
12 30000-20050 RELAY,SOLID STATE,40A
ELECTRONICS COMPONENTS
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM EP
DocNo.
DOC-00031
