Slayer STEAM EP - Drip Trays & Cup Trays

SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 71

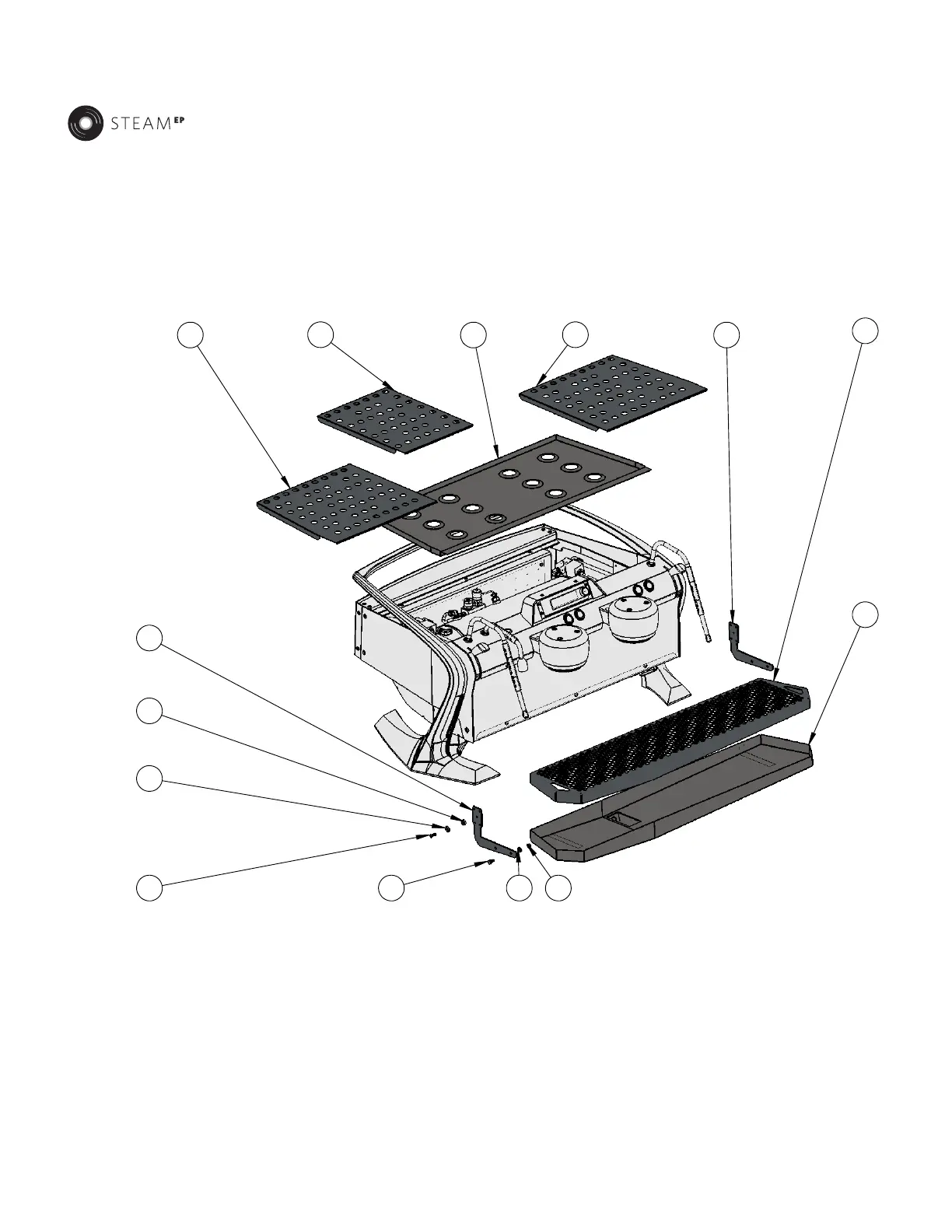

DRIP TRAYS & CUP TRAYS
2
1 3
4
5
6
7
13
12
11
910
14
8
(for 3 Group Only)
ITEM NO. PART NUMBER DESCRIPTION
1 13005-30034 CUP TRAY COVER, LEFT, STEAM
2 13005-30035 CUP TRAY COVER, CENTER, STEAM
3
13005-20029 CUP TRAY, STEAM, 2GP
13005-30029 CUP TRAY, LOWER, STEAM, 3GP
4 13005-30033 CUP TRAY COVER, RIGHT, STEAM
5 13015-16001 DRIP TRAY BRACKET, STEAM BASIC, RIGHT
6
13005-20038 DRIP TRAY COVER, STEAM, 2GP
13005-30038 DRIP TRAY COVER, STEAM, 3G
7
13005-20037 DRIP TRAY LINER, STEAM, 2 GP
13005-30037 DRIP TRAY LINER, STEAM, 3 GP
8 44005-10050 HEX NUT, M6-1.0,18-8 SS
9 44000-36110 LOCK WASHER, TANK MOUNT
10 44005-10030 HHCS,M6-1.0X12MM,18-8 SS
11 44000-36010 STEAM VALVE MOUNTING SCREW
12 40015-10001 COSMETIC COUNTERSUNK WASHER M5
13 40015-10002 SPACER, M5, 13mm OD, 5mm THICK
14 13015-16000 DRIP TRAY BRACKET, STEAM BASIC, LEFT
DRIP TRAYS AND CUP TRAYS
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM EP
DocNo.
DOC-00041
