Slayer STEAM EP - Brew Group Head Components

SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 47

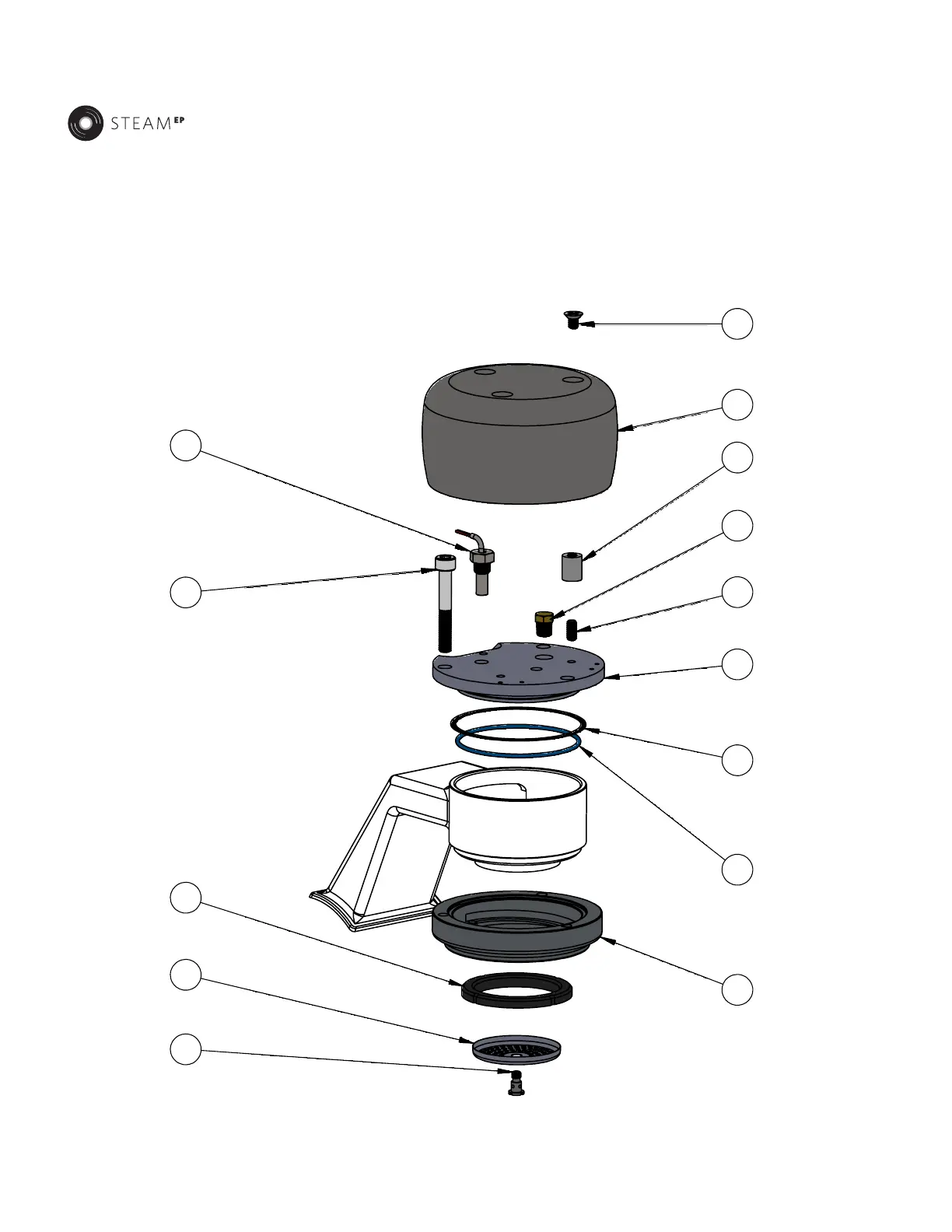

BREW GROUP HEAD COMPONENTS
4
10
11
12
9
7
14
8
1
13
5
2
6
3
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 44000-36063 FHMS,1/4-20X0.38,PHILLIPS,18-8 SS 3
2
20000-16081 GROUP COVER, CLOSED TOP 1
3
44005-20120 STANDOFF,0.5 DIA,1/4-20X0.63,F,NYLON 3
4
42000-34300 BLEED SCREW PLUG 1
5
44005-20110 THRD ROD,1/4-20X0.50,18-8 SS 3
6
10000-16051 GROUP CAP 1
7
46000-50100 GROUP CAP PAPER GASKET 1
8
46000-50090 GROUP CAP O RING 1
9
20000-56010 BAYONET RING 1
10
46000-50080 DIFFUSER SCREW, STAINLESS 1
11
46000-50073 NANO COATED SHOWER SCREEN 1
12
46000-56091 PORTAFILTER GASKET 1
13
44000-56000 SCREW, SOCKET HEAD CAP, M8 THREAD, 55mm LENGTH, 1.25mm PITCH, STAINLESS 3
14
30005-20081 THERMISTOR, STEAM - 3K3 NTC 1
