Slayer STEAM EP - Brew Tank Assembly

SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 49

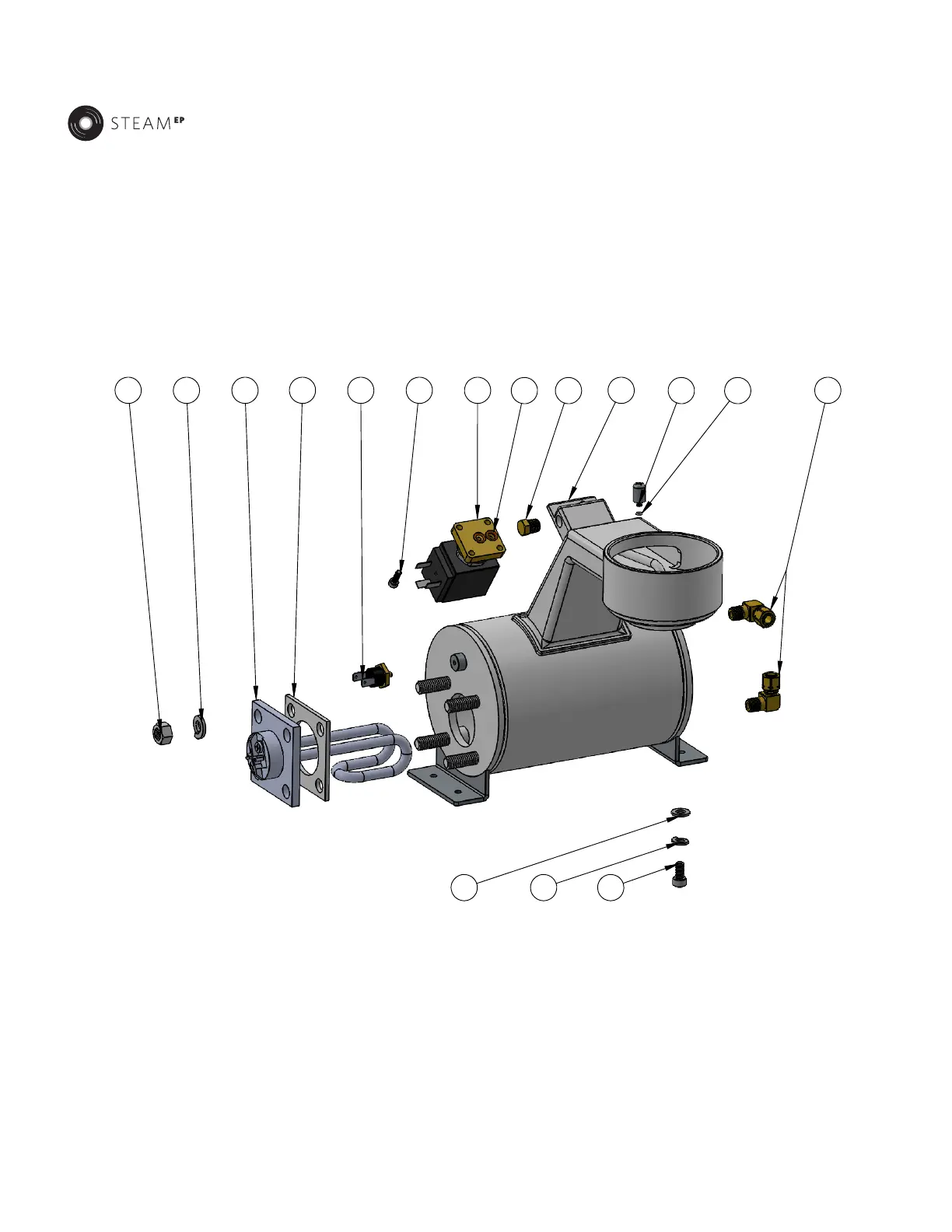

BREW TANK ASSEMBLY
1 2 3 4 5 6 7
9
10
11
17 16
14
15
13
8
(NOT SHOWN)
ITEM
NO.
PART NUMBER DESCRIPTION
1 44000-36080 3/8-16 NUT
2 44000-36070 3/8 LOCK WASHER
3 30000-20130 600 WATT BREW TANK ELEMENT
4 30000-20140 ELEMENT GASKET
5 30000-20251 THERMOSTAT,110C
6 44005-10090 SHCS,M4-0.7X12MM,18-8 SS
7 30000-20153 3-WAY SOLENOID VALVE, 2mm, FORGED FLANGE, 24VDC
8 46000-10040 O-RING,FKM,DASH NO. -010
9 42000-34300 BLEED SCREW PLUG
10 15005-16061 BREW TANK, STEAM
11
10000-16061 GIGGLEUR, 0.7mm, V3
10005-16061 GIGGLEUR, 0.6mm
13 46000-10010 O RING FOR JET HOLDER, 1 X 3
14 42000-34560 FITTING, 90 DEG ELBOW FOR 1/4" TUBE OD X 1/8" NPTF - M, BRASS
15 44005-10012 SHCS,M6-1.0X12MM,18-8 SS
16 44000-36110 LOCK WASHER, TANK MOUNT
17 46000-53040 WASHER, FLAT, M7 SCREW SIZE, 14mm OD, 1.4mm-1.8mm THICK
18 30000-20443 HARNESS, BREW TANK CONNECTION
BREW TANK ASSEMBLY - STEAM
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM EP
DocNo.
DOC-00035
