SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 65

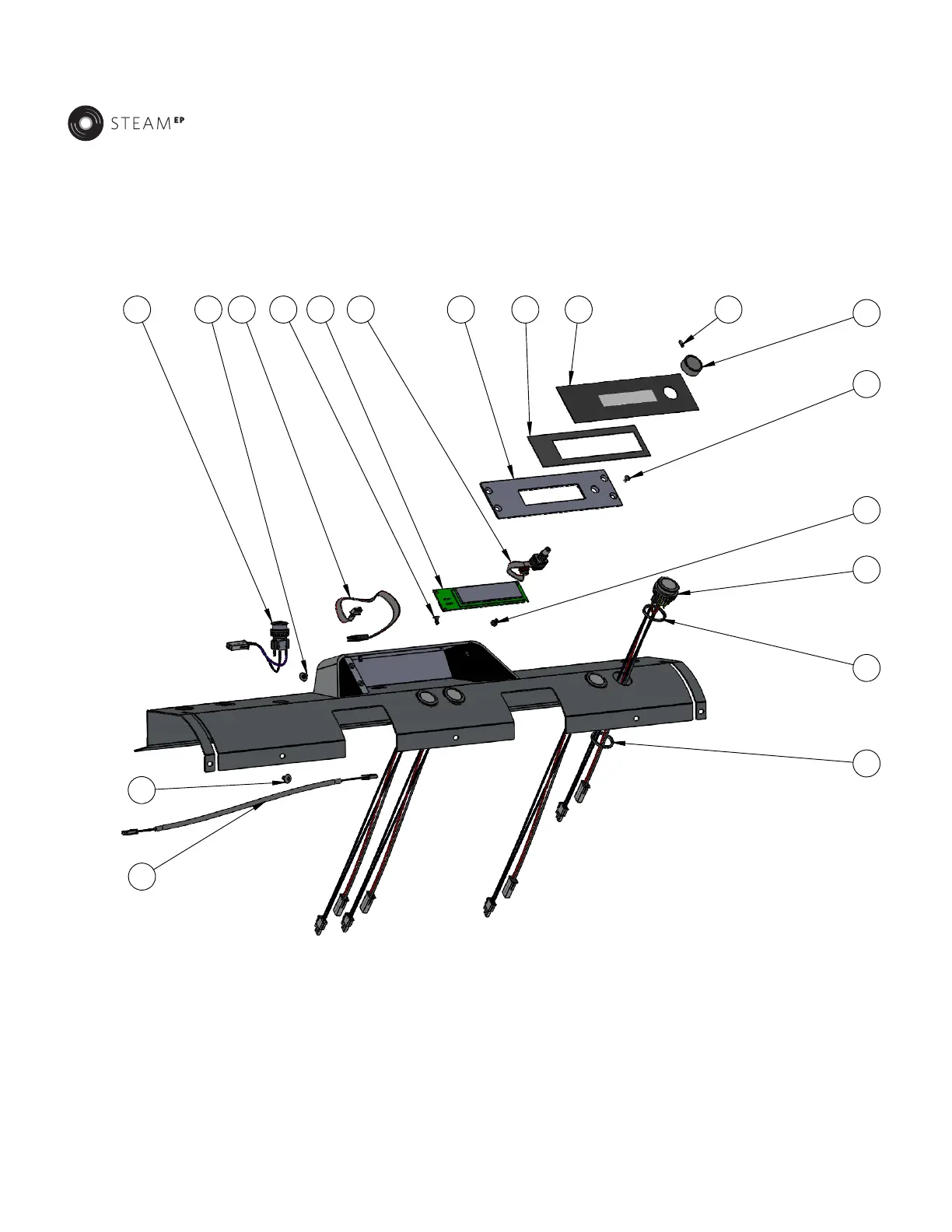

DISPLAY ASSEMBLY
1 4 5 6 7 8 9 10
11
14
12
17
18
13
2 3
15
16
ITEM
NO.
PART NUMBER DESCRIPTION
1 30005-20341 MOMENTARY PUSH BUTTON, HOT WATER, WIRED
2 44005-10140 SCREW,TRUSS HD,EXTRA WD,M4-0.7X6MM,PHILLIPS,18-8 SS
3 30005-10120 DISPLAY INTERFACE CABLE, 200mm
4 44005-10211 FHMS,M4-0.7X8MM,PHILLIPS,18-8 SS
5 30005-60110 OLED DISPLAY ASSEMBLY, SLAYER STEAM
6 30005-03010 OPTICAL ENCODER
7 20005-10001 FACE PLATE
8 46005-21010 VHB ON BACKING BOARD FOR DISPLAY SCREEN
9 26005-10000 DISPLAY GLASS
10 44005-10220 SHSS,M3-0.5X8MM,FLAT POINT,316 SS
11 10005-03010 ENCODER KNOB, STEAM
12 44005-10200 FHMS,M3.5-0.6X6MM,PHILLIPS,ZP
13 44005-10380 SCREW, SELF TAPPING, 6-32X0.25,PHILLIPS,SS
14 30015-20350 BREW BUTTON ASSEMBLY
15 10015-10001 BREW BUTTON RING, FRONT, STEAM BASIC
16 10015-10002 BREW BUTTON RING, BACK, STEAM BASIC
17 30015-10131 DISPLAY CABLE,EXTENDED
18 44005-10180 SCREW,TRUSS HD,EW,M4-0.7X8MM,PHILILPS,18-8 SS
DISPLAY ASSEMBLY
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM EP
DocNo.
DOC-00036
