Slayer STEAM EP - Hot Water Wand Assembly

SLAYER STEAM EP USER MANUAL V1.1 | SEPTEMBER 11, 2018 57

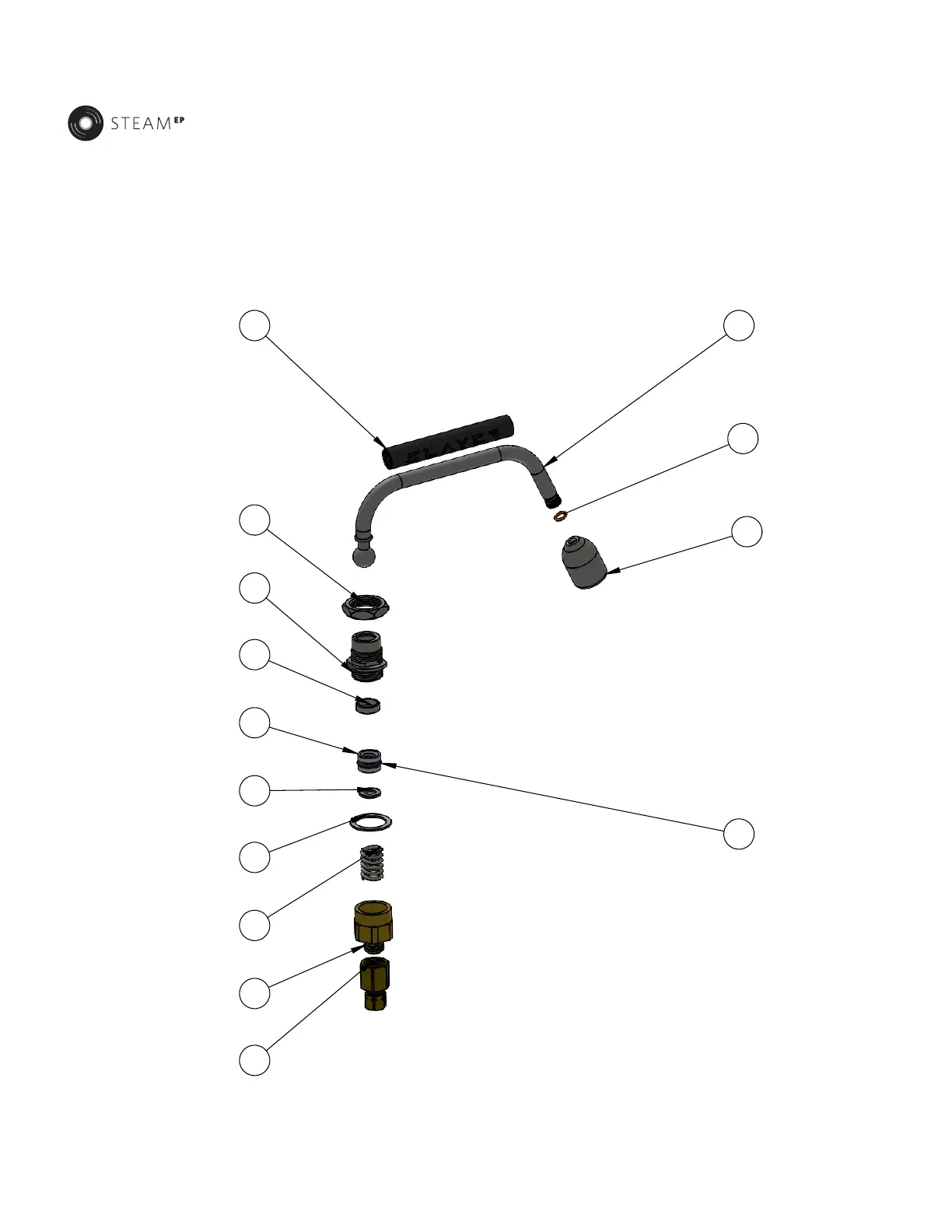

HOT WATER WAND ASSEMBLY
1
6
7
8
9
10
11
12
13
14
2
3
5
4
ITEM
NO.
PART NUMBER DESCRIPTION
1 46005-53170 GRIP, STEAM WAND, COOL TOUCH
2 40004-50450 HOT WATER WAND, HOME MACHINE
3 46000-50030 O RING FOR STEAM TIP, 1.5 X 6
4 46000-50350 HOT WATER SPOUT
5 46000-53050 O-RING FOR VALVE BUSHING
6 42000-34710 EASY-ALIGN BRASS COMPRESSION TUBE FITTING, STRAIGHT ADAPTER FOR 1/4" TUBE OD X 1/4 FEMALE PIPE
7 46005-53010 REAR BLOCK FOR STEAM ASSEMBLY
8 46005-53030 ARTICULATION SPRING FOR STEAM VALVE, 13X18MM
9 46000-53070 TEFLON GASKET 27MM
10 46000-53040 WASHER, FLAT, M7 SCREW SIZE, 14mm OD, 1.4mm-1.8mm THICK
11 46005-53060 BUSHING 15 X 10.5 MM, STEAM
12 46005-53110 STEAM SEAL
13 10005-10002 STEAM, WAND SOCKET
14 10005-10008 STEAM AND HOT WATER LOCK NUT
HOT WATER WAND ASSEMBLY
support@slayerespresso.com (206) 284-7171
PARTS MANUAL - STEAM EP
DocNo.
DOC-00034
