46
4.4.2 Error: Invalid Input/Output size (Code 16#0127)
The above error occurs in RS Logix 5000 software, when the PDO mapping is not setup
properly using Octave software. Refer to section 4.3.3. After installing the software and
download the file, verify if Code 16#0127 is eradicated in RS Logix 5000 software.
4.4.3 No ethernet data transfer between PLC and CBC-EIP drives
This situation could be caused due to several reason. Most common cause is, if the System
Macro V2.mlm file is not installed properly in the destination folder. Refer to the section
2.2.1 and 4.1 for more information on installing the file properly.
4.4.4 No ethernet communication

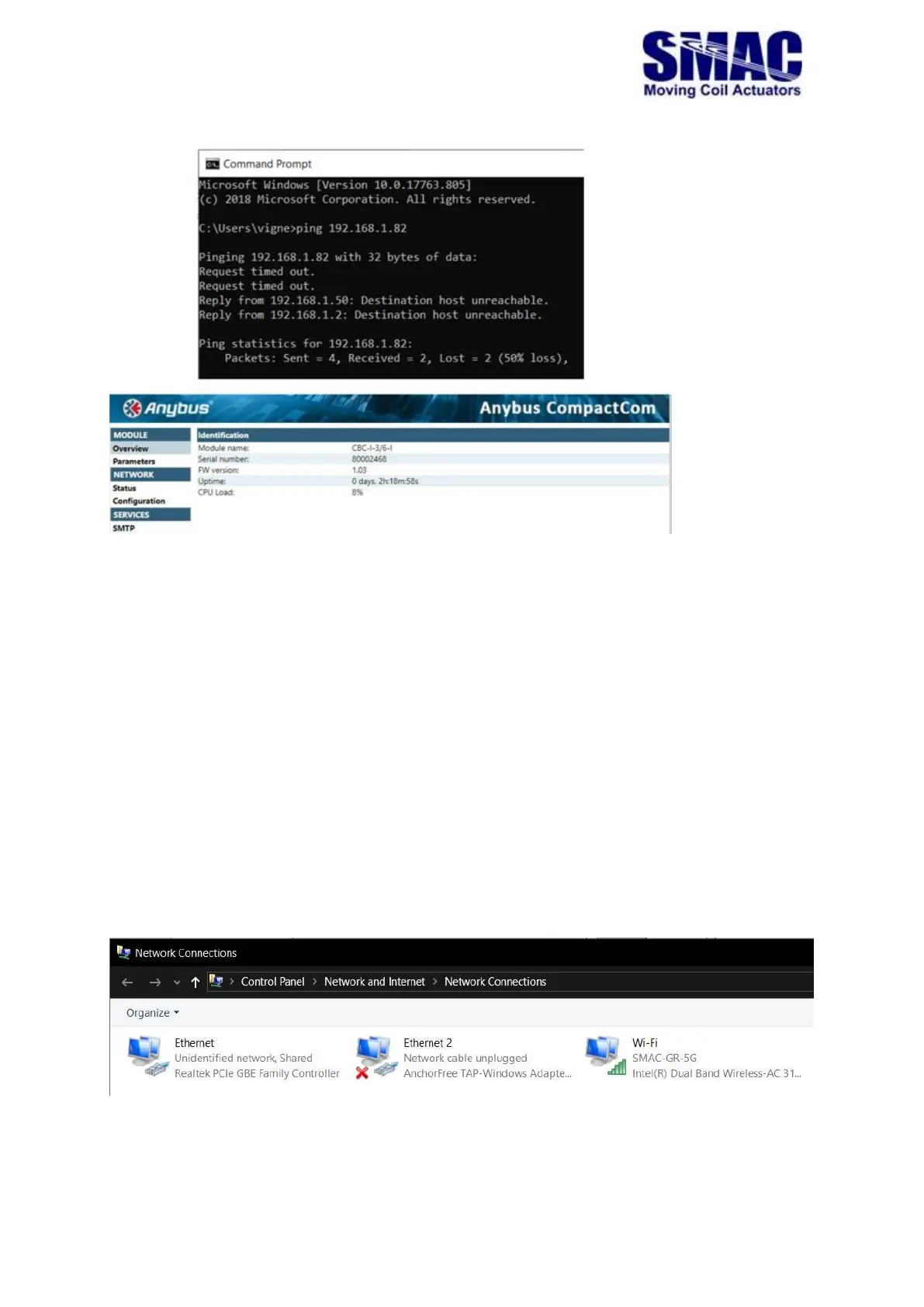

When the communication to the CBC-EIP controller is lost, it cannot be identified by
any health status led. But it can be identified either in the PLC module or through the
online web browser or using command prompt or using network connections
window
